In the bottom drive drawer, the drive slots are numbered from left to right, beginning
with the first compartment that is closest to the front panel. The drive slots in this
compartment are numbered 42 to 55. The drive slots in the second compartment
are in the middle of the drive drawer. These slots are numbered 56 to 69. The drive
slots in third compartment are closest to the rear of the shelf. These slots are
numbered 70 to 83.
See Figure 2-4 on page 45.

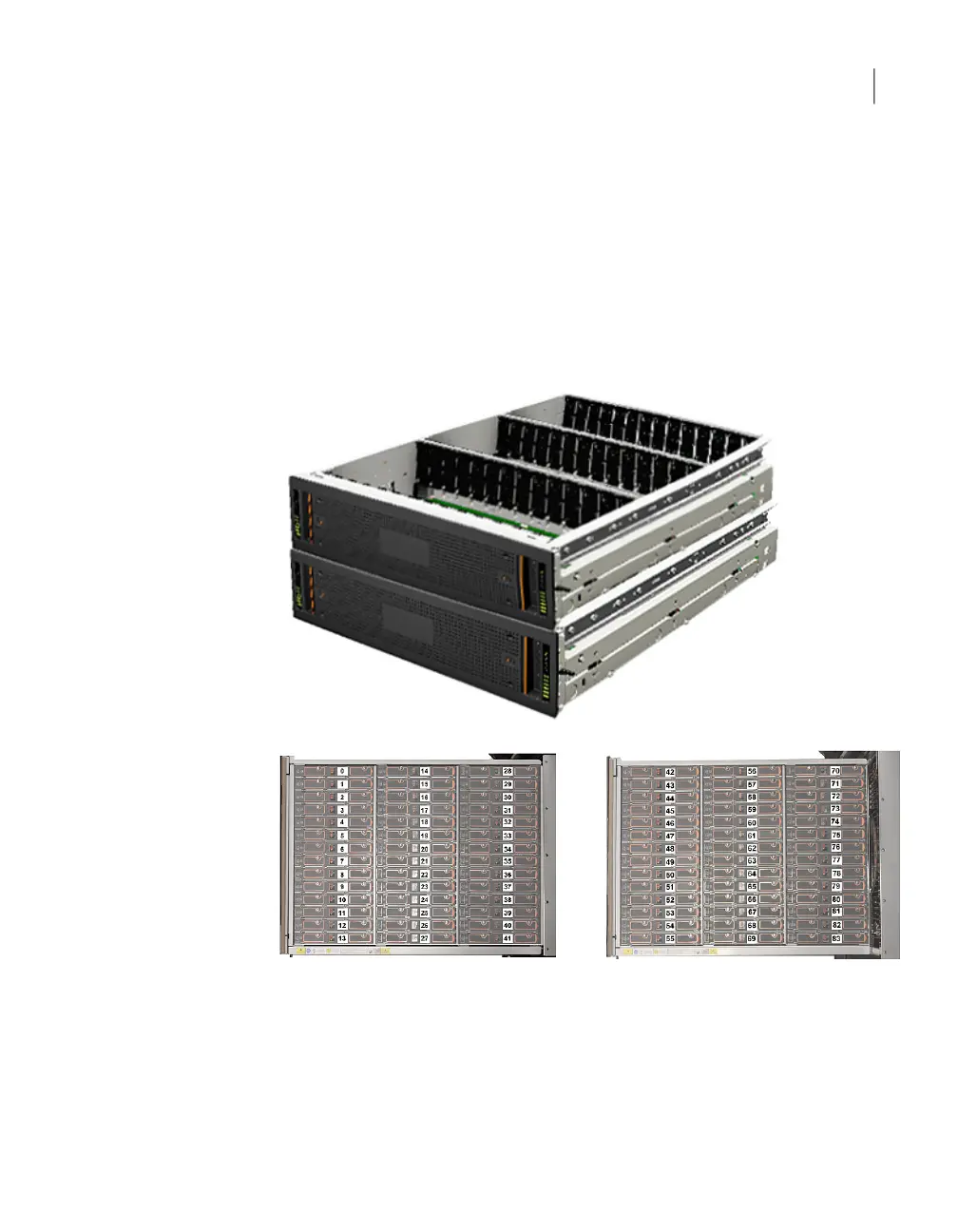

Figure 2-4
Disk drive slot numbering
Top drawer
(drawer 1)
Bottom drawer
(drawer 2)
Front
Front
Rear
Rear
Disk Drive In Carrier (DDIC) modules
All storage shelf hard disk drives are housed in DDIC modules. Each disk drive
drawer accepts a Disk Drive In Carrier (DDIC) module for each disk drive slot in
the drawer. DDIC modules enable disk drives to be quickly inserted and removed
45About the Veritas 5U84 Storage Shelves
About Veritas 5340 Appliance storage shelves
