Appendix E: Cable Pinout Information

NOTE: All switches have the 8-pin modular jack for the modem and console/setup ports.

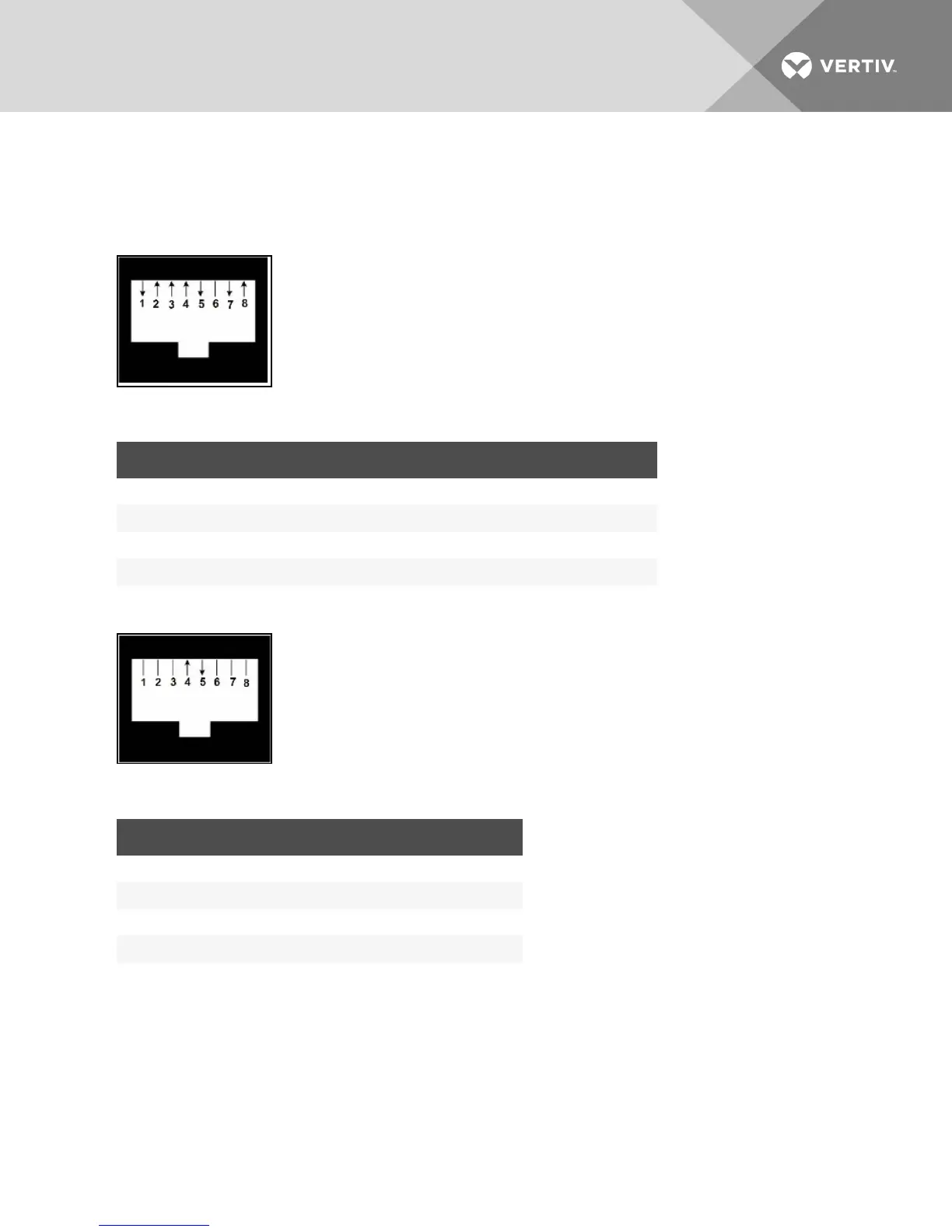

Figure 5.1 Modem Jack

PIN NUMBER DESCRIPTION PIN NUMBER DESCRIPTION

1 Request to Send (RTS) 5 Transmit Data (TXD)

2 Data Set Ready (MergePoint Unity switch) 6 Signal Ground (SG)

3 Data Carrier Detect (DCD) 7 Data Terminal Ready (DTR)

4 Receive Data (RXD) 8 Clear to Send (CTS)

Table 5.5 Modem Jack Descriptions

Figure 5.2 Console/Setup Jack

PIN NUMBER DESCRIPTION PIN NUMBER DESCRIPTION

1 No Connection (N/C) 5 Transmit Data (TXD)

2 No Connection (N/C) 6 Signal Ground (SG)

3 No Connection (N/C) 7 No Connection (N/C)

4 Receive Data (RXD) 8 No Connection (N/C)

Table 5.6 Console Jack Descriptions

Vertiv™ | Vertiv™ Avocent® MergePoint Unity™ Switch for Dell® Installer/User Guide | 65
