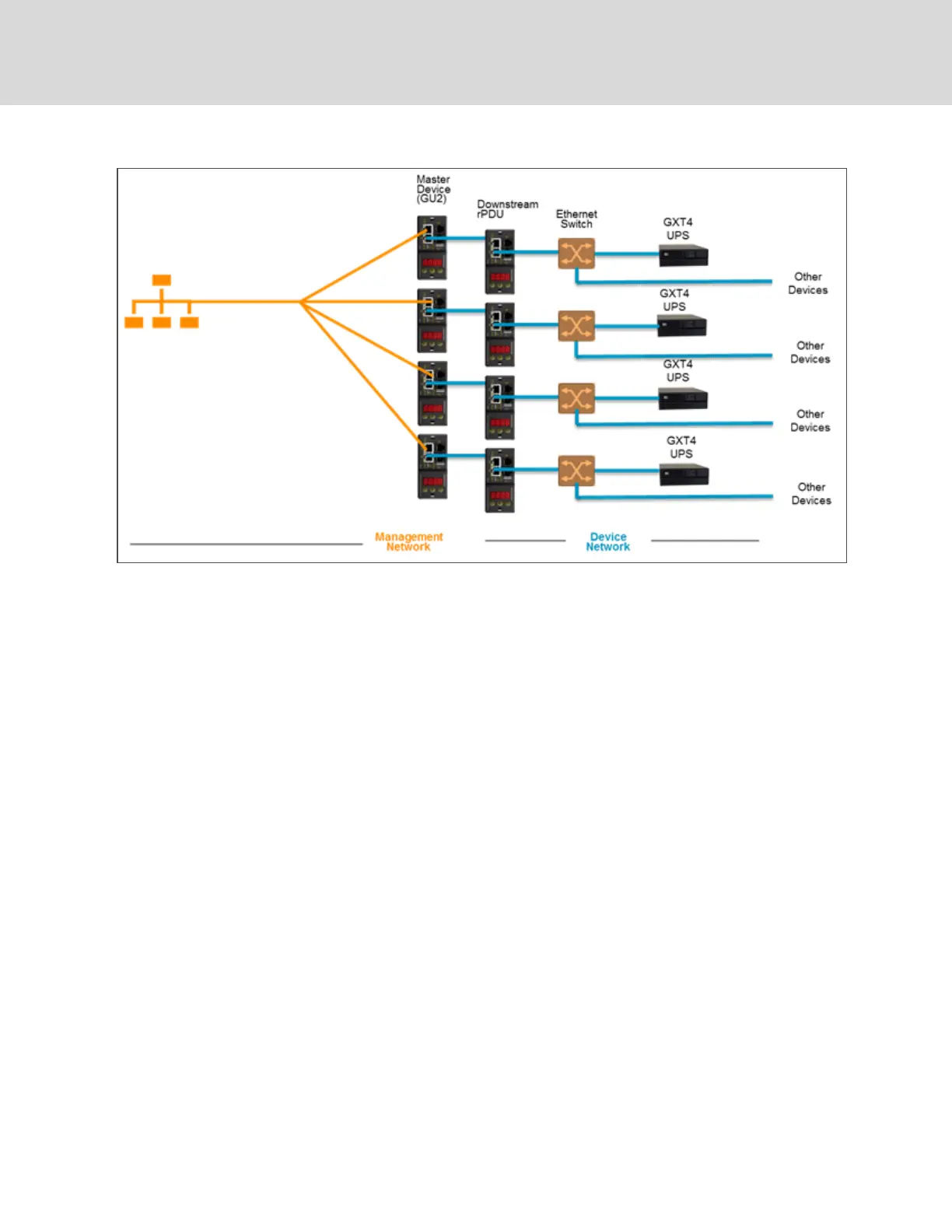

Figure 4.2 Sample Network Configuration
NOTE: RSTP is disabled by default in GU1 rPDUs running 3.4.0 or later and GU2 rPDUs running 5.3.3 or
later. In previous firmware, RSTP is enabled on both platforms. Aggregation does not support RSTP.
Leaving RSTP enabled limits a rPDU daisy-chain within aggregation to forty. Disabling RSTP on
downstream devices will remove the forty device limitation.
4.4 Views
When communication is established between the master and downstream devices, several views are
automatically populated within the user interface. The new views are under the Device tab in the top
navigation bar are:
• Summary
• Groups
• List
• Group Configuration
