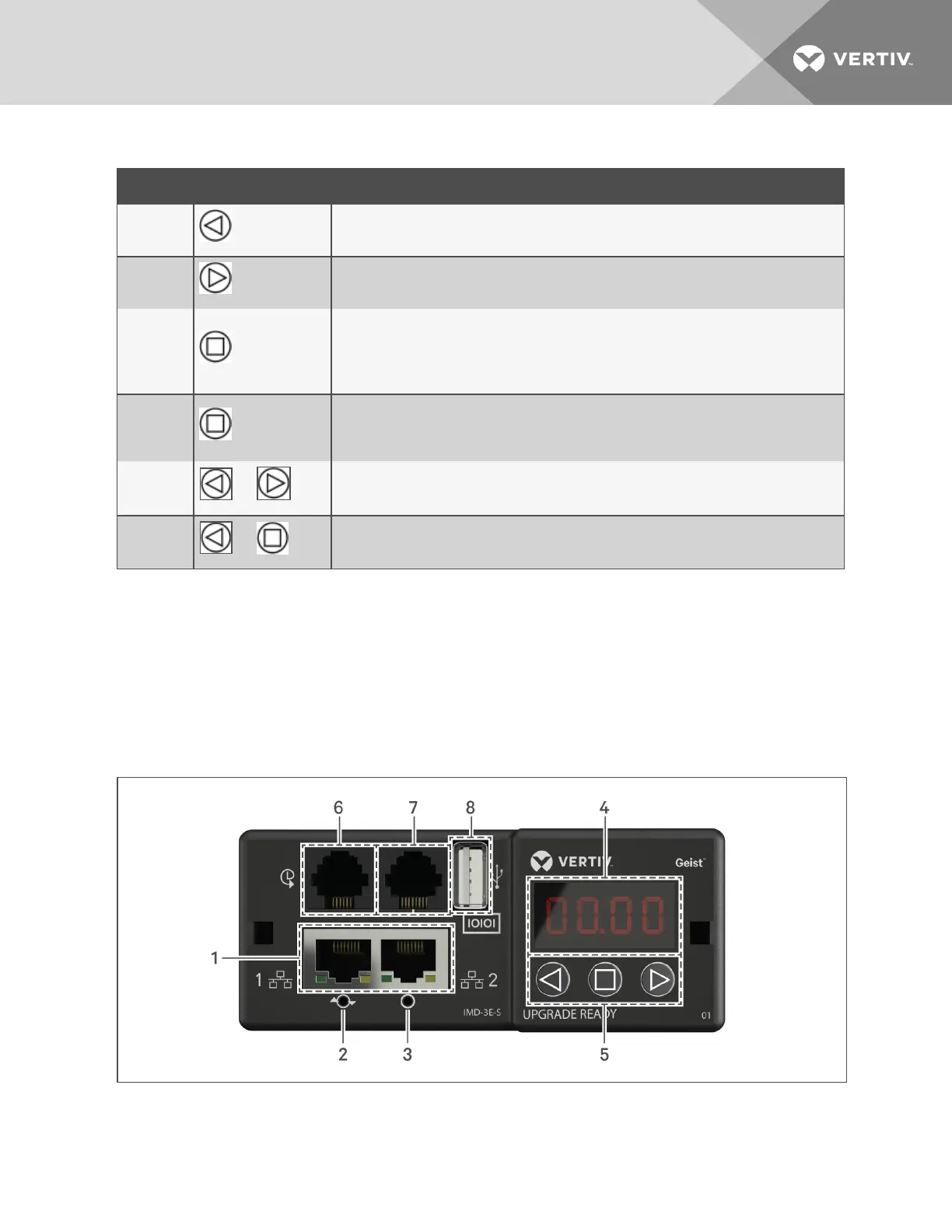

BUTTON SYMBOL DESCRIPTION
Back
Button
Decrement to the previous channel.
Forward
Button
Increment to the next channel.
Center
Button
Toggle between scrolling and static displaymodes. Holding this button for 10 seconds will
perform a network reset, restoring the default IP address and resetting user account
information.
Center
Button x3
Pressing this button three times within two seconds enables VLC mode. Pressing the button
while VLC mode is active returns the unit to the standard current display. For more
information, see Visible Light Communication (VLC) on page 63.
and
Pressing both buttons at the same time flips the display180 degrees.
and
Pressing both buttons at the same time displays the primary IPv4 address of the unit.
Table 3.2 Display Button Functions
NOTE: Display Button functionality may vary based on unit configuration.
3.1.2 Enhanced Switched Monitored with RS-232
All Vertiv Geist Switched Unit Level Monitoring, Outlet Level Monitoring, and Switched Outlet Level
Monitoring rPDUs ship with the IMD-3E-S module. This module provides all of the same features as the
IMD-3E, with the addition of a RS232 serial port via RJ-45.
Figure 3.2 IMD-3E-S Module
