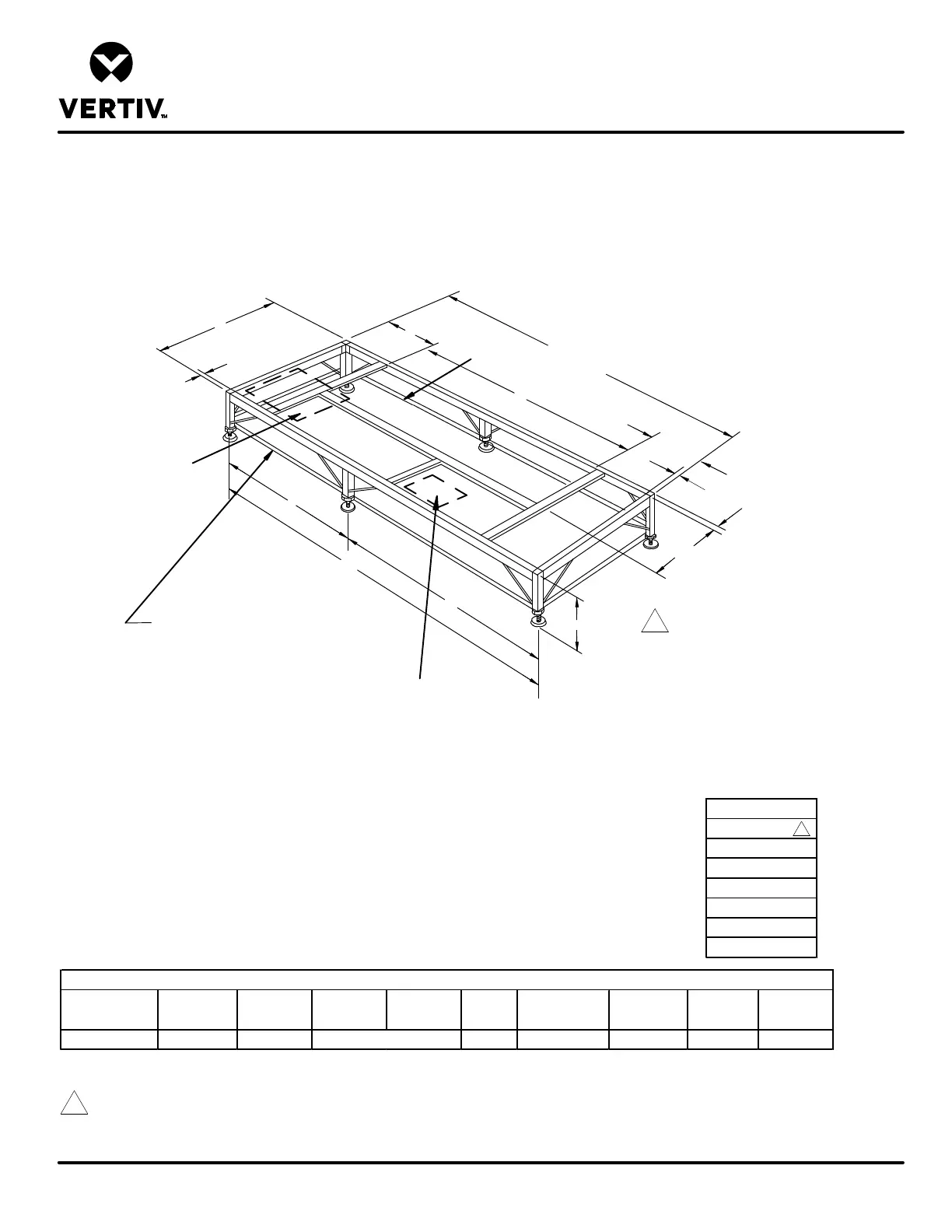

FLOORSTAND & FLOOR PLANNING DIMENSIONAL DATA
LIEBERT CW
CW106, CW114 UPFLOW MODELS
H ± 1 1/2" (38mm)
1"
(25.4mm)
J
E
1"
(25.4mm)
D
STANDARD
PIPING AND
ELECTRICAL
ENTRANCE
LOCATION
B
C
A
LEG SUPPORTS SUPPLIED ON 18, 21 & 24" HIGH MODELS
AIR DISCHARGE
OPENING
G
ELECTRICAL OPENING
F
120" (3048.0 mm)
1
Height in. (mm)
H Nominal
9 (229)
12 (305)
15 (381)
18 (458)
21 (553)
24 (610)
CW106, CW114 122 (3099) 120 (3048) 33 (838) 100-3/4 (2559) 16-1/4 (413) 8-1/4 (210) 11 (279)
J
Dimensional Data in. (mm)
Model
Overall Width
of unit
A B C D E F G
Notes:
1. Leveling feet are provided with ± 1 1/2" (38mm) adjustment from nominal height H.
