Non-grilled and rear-discharge front-panel assembly
1. Attachthe panel-mounting bracket(s), Figure 7.17 below:
• For single- and double-panel plenum, attachthe panel-mounting bracket using 1 bolt and 1washer.
• For double-panel plenum, attach the panel-mounting bracket using 2 bolts and 2washers.

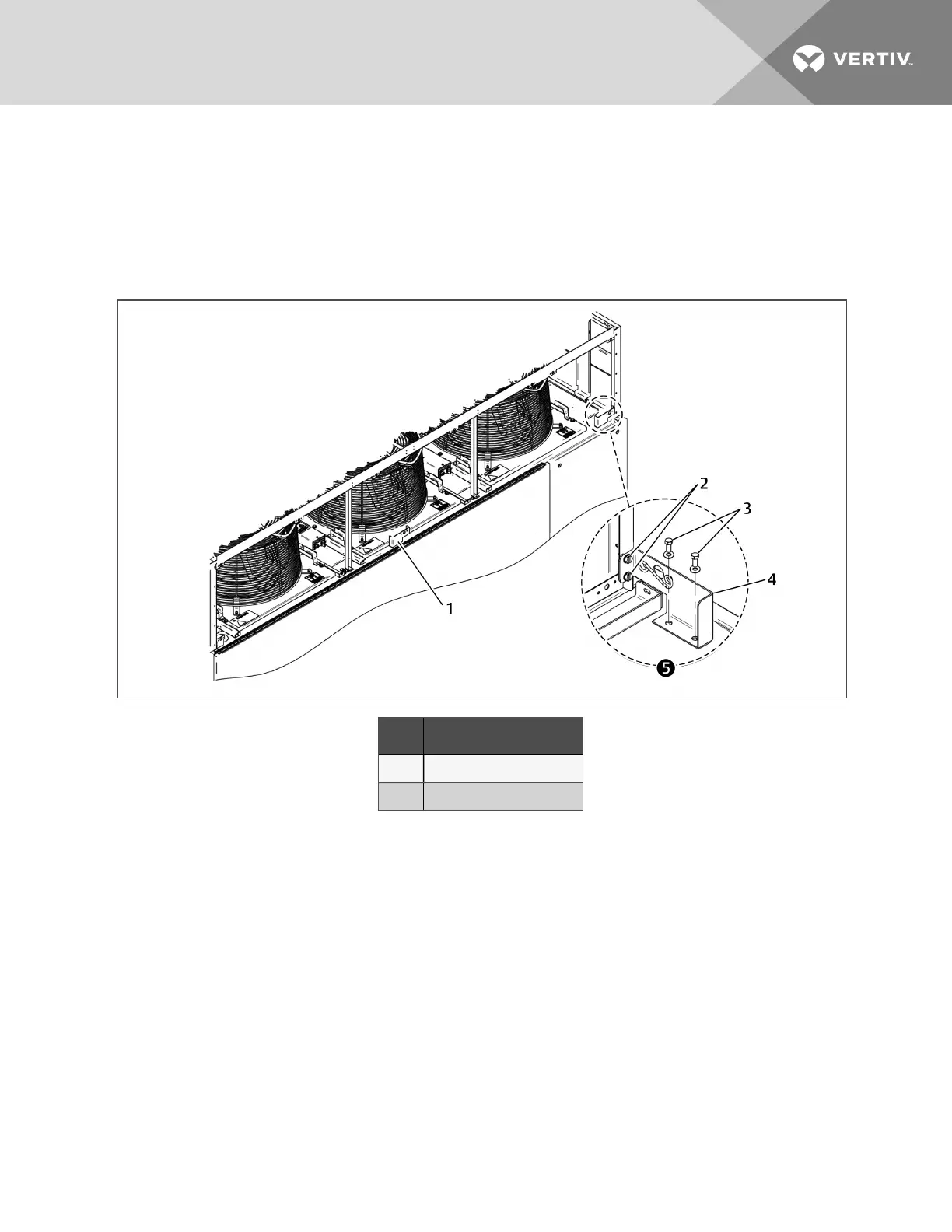

Figure 7.17 Panel-mounting bracket attachment
Item Description
1 Singlepanel-mountingbracket
2 Doublepanel-mountingbracket
