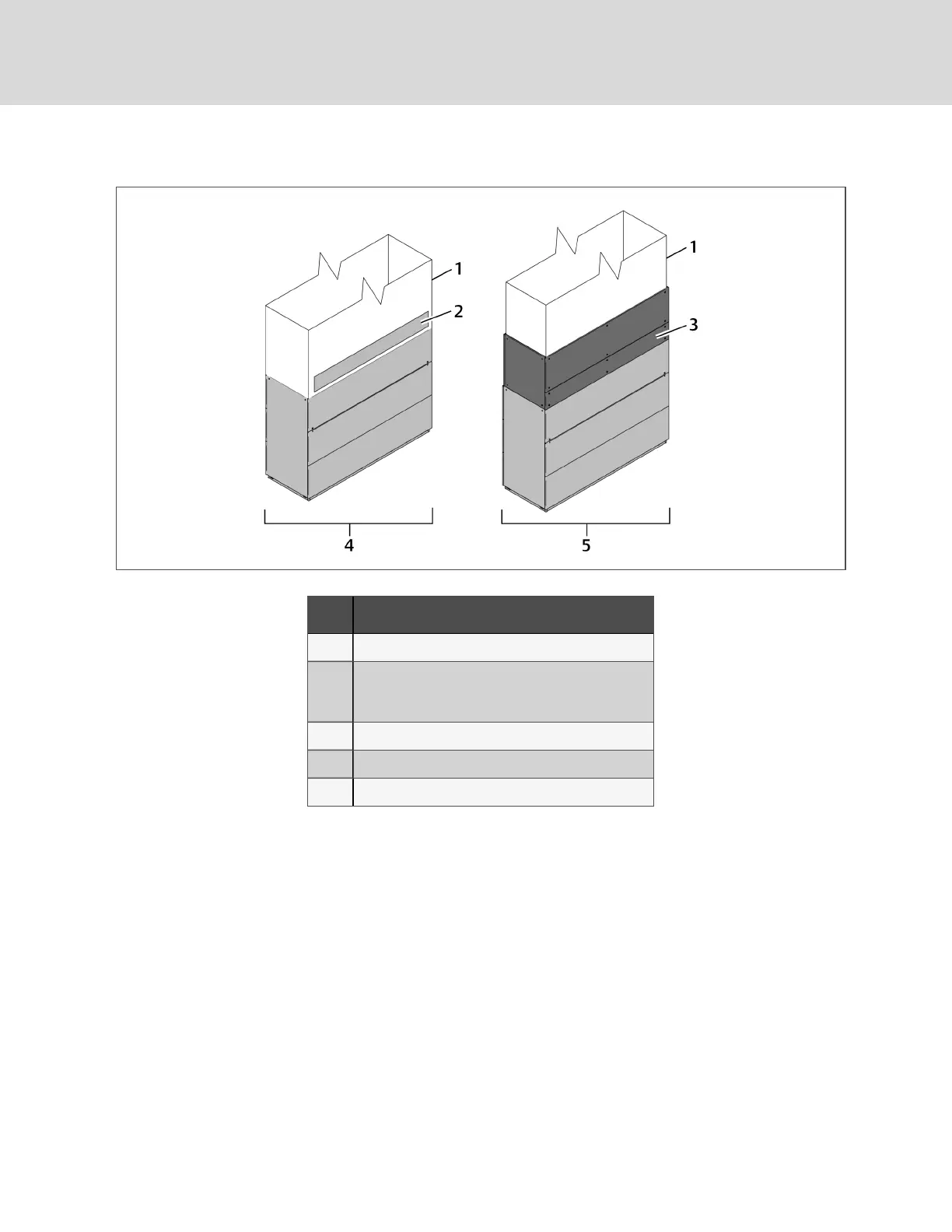

Figure 3.1 Downflow unit ducting and plenum ducting
Item description
1 Field-fabricatedductwork
2
Fieldservice access for filterreplacement
Minimumheight = 12 in. (305mm)
Minimumdistance fromunit= 2 in. (51 mm)
3 Service-accessdoor for filter replacement providedinplenum.
4 Direct-to-unitducting
5 Plenumducting
Vertiv | Liebert® CW™Installer/User Guide
18
