Vertiv Liebert CW 084 - Jack Placement to Support EC Fan Module

3. If the fanmodule is raised and inthe unit, proceed to step 6.
–or –
If the fanmodule is lowered into the floor stand, refer to Figure 11.2 below and before removing any hardware,
center the factory-supplied jack betweenthe tabs onthe jack support.

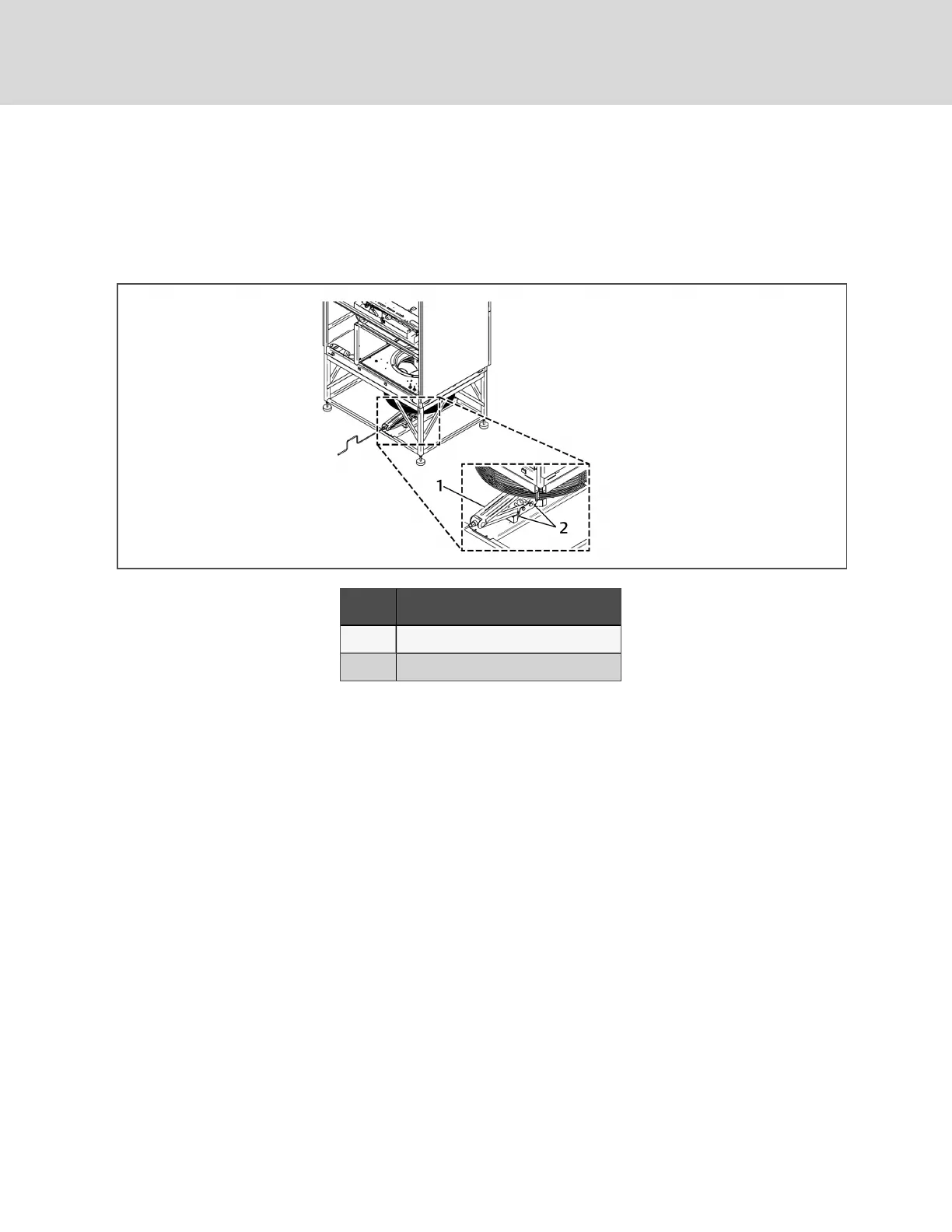

Figure 11.2 Jack placement to support EC fan module
Item Description
1 Positionjack tosupportfan
2 Tabs
Vertiv | Liebert® CW™Installer/User Guide
