Vertiv Liebert CW 084 - Rear-Discharge Top-Panel Attachment

7. For non-grilled plenums, skip to step 9.
–or –
For rear-discharge plenums, attachthe top panels, Figure 7.24 below:
• Attachthe plaintop panel tothe side and rear panels using 9 sheet-metal screws.
• Attachthe top panel withholes toside, rear, and edge of the plaintop panel using 15sheet-metal screws.
• Attachthe top panels tothe top frame using 6 sheet-metal screws.

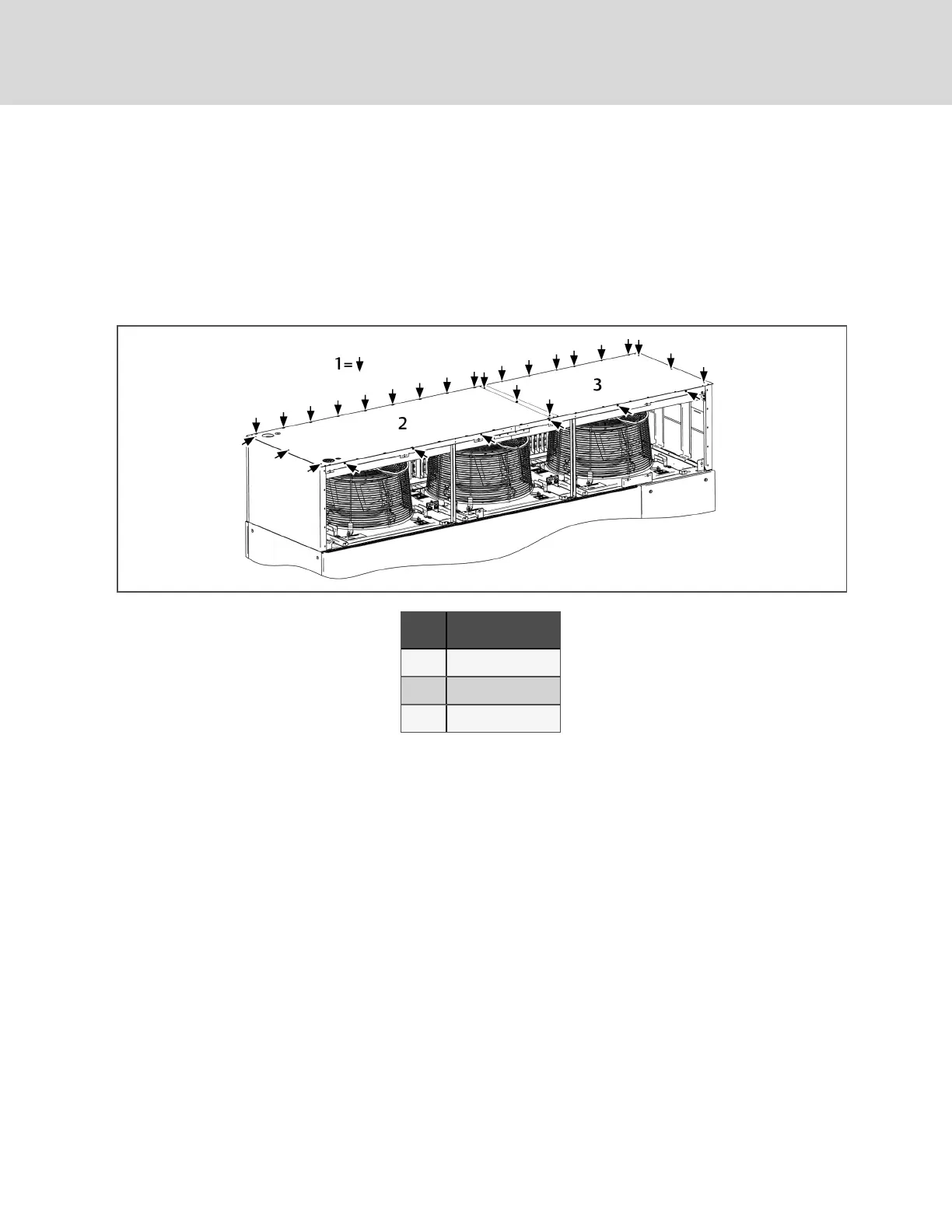

Figure 7.24 Rear-discharge top-panel attachment
Item Description
1 Sheet-metalscrews
2 Toppanel (withholes)
3 Toppanel (plain)
