Front-discharge front-panel assembly
1. Using the channel panel and 10 sheet-metal screws, attachthe grilled front panel and the short, grilled front
panel, Figure 7.27 below.
2. Attachthe assembled front panels tothe plenum sides using 10 sheet-metal screws, 5 oneach end.

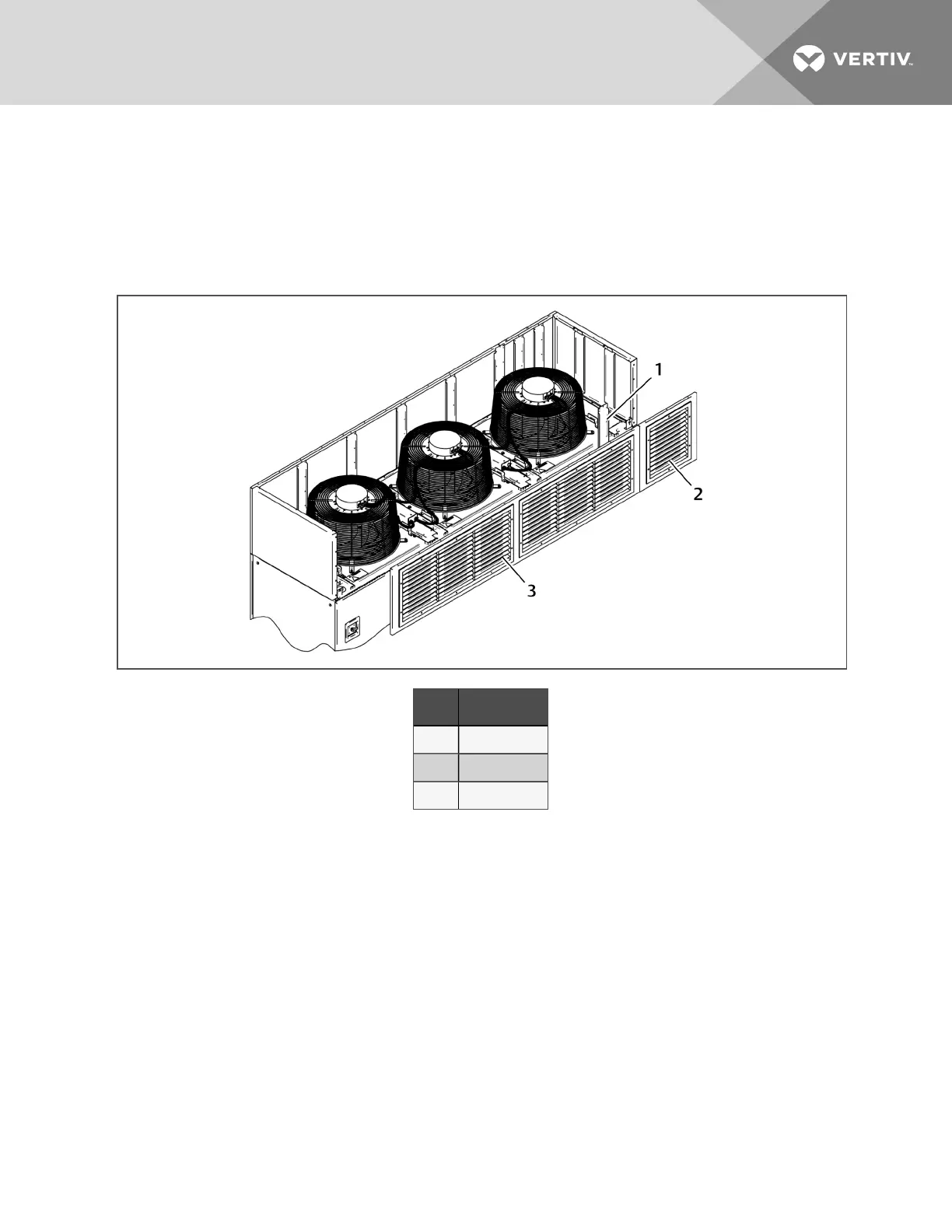

Figure 7.27 Front-discharge front-panel attachment
Item Description
1 Channel panel
2 Short front panel
3 Front panel
