Vertiv Liebert CW 084 - Compressor Plenum Parts Identification

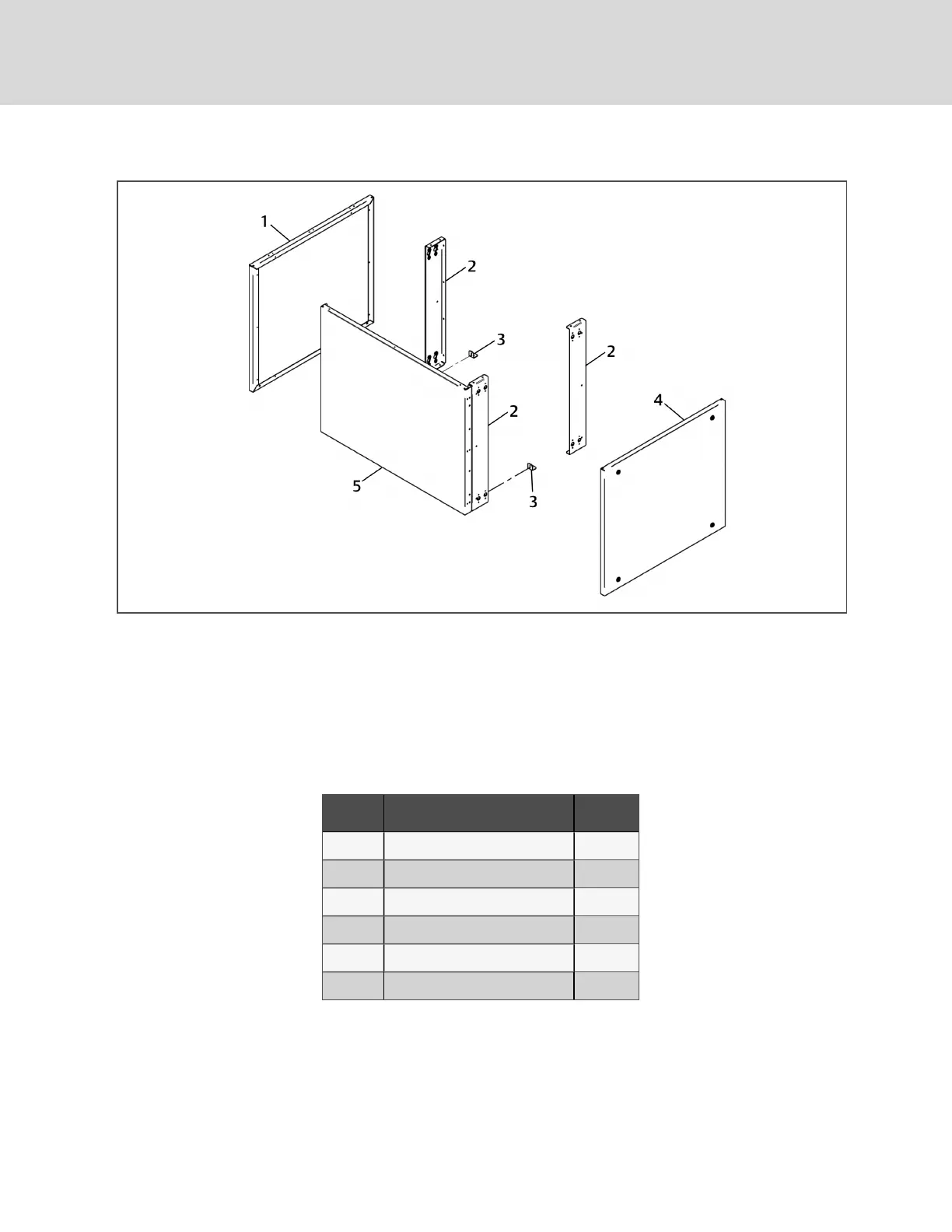

Figure 7.6 Compressor plenum parts identification
NOTE: Not all parts are used in all plenum sizes: 26-in (660-mm) wide compressor plenums include 3
angle-mounting brackets and a front panel with quarter-turn fasteners.
NOTE: Compressor plenums shorter than 26 in. (660mm) include 2angle-mounting brackets and do
not include a front panel with quarter-turn fasteners.
Item Description Quantity
1 Front/Rearpanel 1 or2
2 Angle-mountingchannel 2 or3
3 Angle-mountingbracket 2
4 Front panel withquarter-turnfasteners 1
5 Side panel 1
Not shown Sheet-metalscrew varies
Table 7.6 Compressor plenum parts and
quantities
