REV : 2
REV DATE : 1/17
DPN003211
Page :1 /1

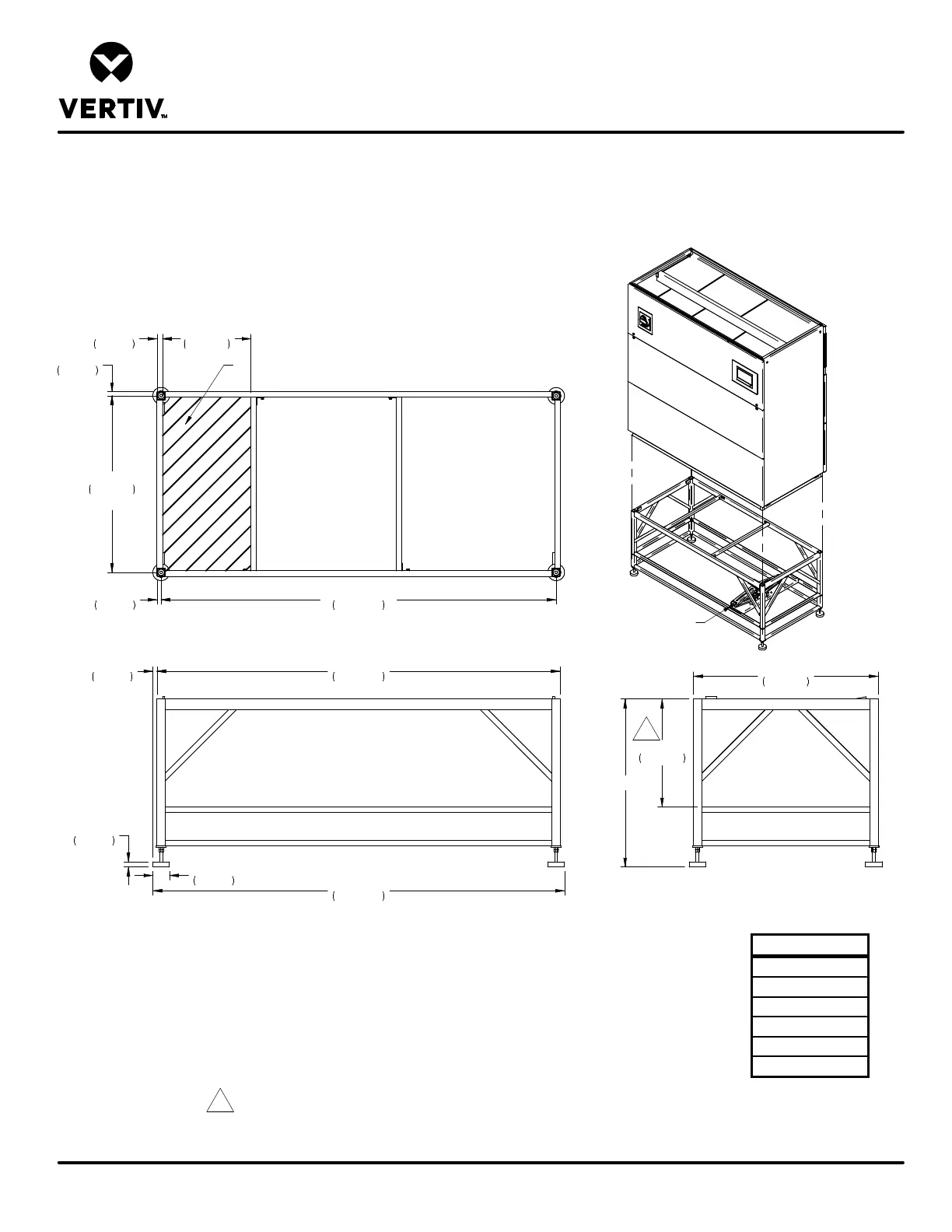

DOWNFLOW MODELS CW051 & CW060 W/ EC FANS
Form No.: DPN001040_REV4
FLOORSTAND & FLOOR PLANNING DIMENSIONAL DATA
LIEBERT CW
NOTE:
1. This floor stand should be used when EC fans are intended to be lowered under
a raised floor. The standard Liebert CW floor stand can be used if the fans are to
remain in their original raised position.
2. All paneled sides of unit overhang floorstand 1” (25mm).
3. The floor stand used with EC units is not symmetrical and its orientation to the
Liebert CW is critical for lowering the EC fans. Unless the floor stand is installed in
the correct position, the blowers will not lower into the floor stand.
4. Jack and jack support are shipped loose and are intended to be placed into position
under each fan and utilized to lower or raise that fan as needed.
5. Does not apply to 24 " high floorstand.
*Leveling feet are provided with
u
1-1/2” (38mm) adjustment from nominal height “A”.
See note 4
Height in ( mm )
A*
24 (610)
30 (762)
36 (914)
42 (1067)
48 (1219)
1"
25mm
15 3/4"
400mm
3/4"
19mm
31 9/16"
801mm
CENTER FEET
3/4"
19mm
70 9/16"
1792mm
CENTER FEET
3/4"
20mm
72"
1829mm
7/8"
23mm
3"
76mm
73 9/16"
1868mm
A*
33"
838mm
19 1/4"
489mm
Piping access area
