1.7.5. Maintenance Bypass Mode
NOTE: 5-kVA to 10-kVA models include an MCB to switch the load to bypass. On 16-kVA to 20-kVA models, a dry
contact may be used to trigger maintenance bypass.
Used when the UPS requires maintenance or repair, Maintenance-bypass mode powers the connected equipment
with utility power while electrically isolating the internal UPS components.
NOTICE
Risk of power interruption. Can damage the connected equipment.
If utility power fails or if its quality is out of range while the UPS is in Maintenance Bypass Mode, the UPS may shut
down without notice and shut-o output power to the load.
NOTE: The UPS has no user-serviceable parts. If the UPS malfunctions and requires service, visit https://www.
vertiv.com/support/ or contact your local Vertiv representative.

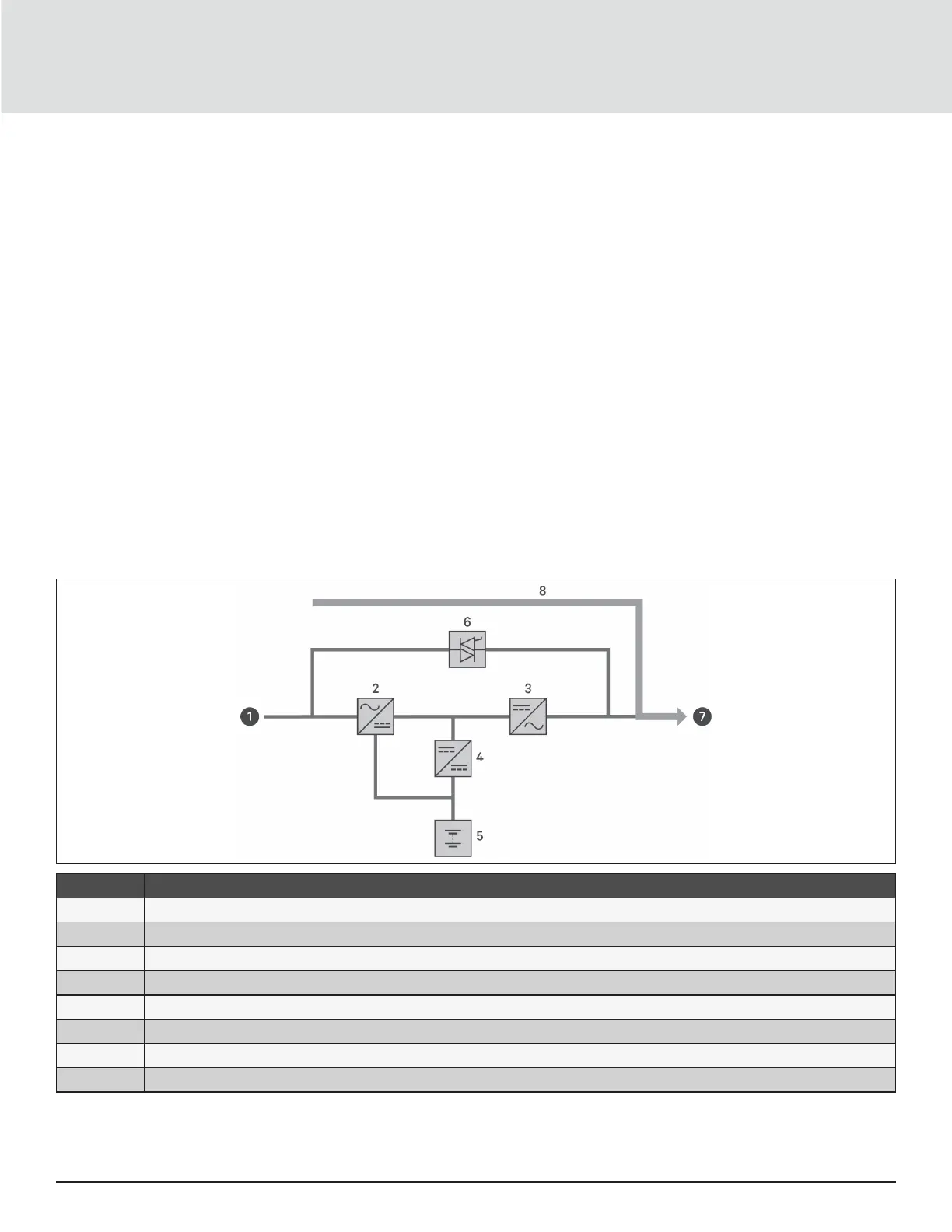

Figure 1-16 Maintenance-bypass Operation
ITEM. DESCRIPTION
1 Mains/Utility input (by-pass input)
2 Rectier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output
8 Maintenance by-pass

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
