GXT5 Description12

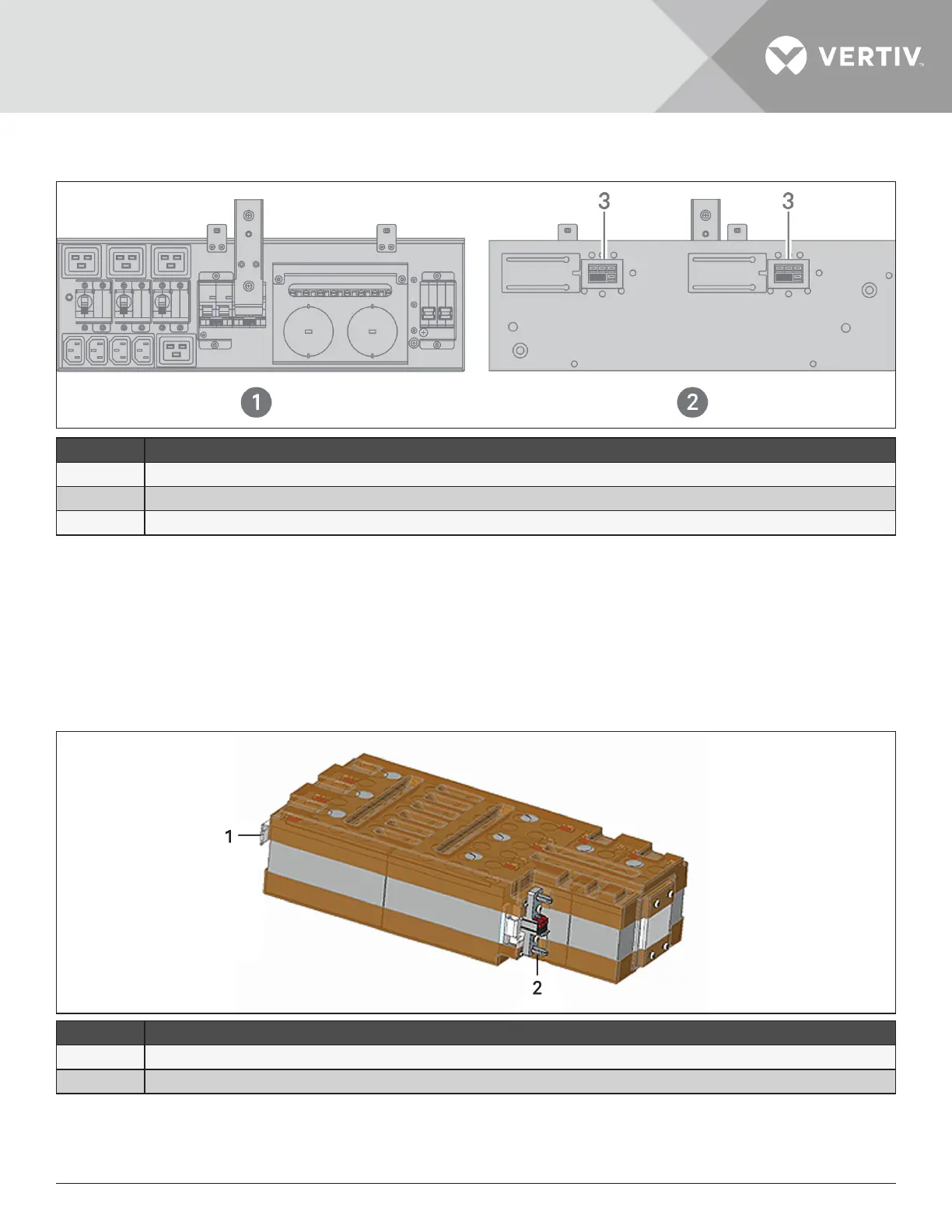

Figure 1-10 PD5-CE10HDWRMBSU for GXT5-8000/10KHVRT5UXLN
ITEM. DESCRIPTION
1 POD Panel view (on rear of unit)
2 POD inner-surface view
3 Quick connect
1.5. Internal Battery Packs
The internal battery packs for all GXT5 models, shown in Figure 1-11 below, are located behind the access door
on the front of the UPS. 5-kVA to 10-kVA units have 2 battery packs, and 16-kVA to 20-kVA units have 4 battery
packs.
Figure 1-11 Internal Battery Pack
ITEM. DESCRIPTION
1 Handle
2 Connector

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
