Vertiv LIEBERT GXT5 Series User Manual

GXT5 Description14
1.6.1. Maintenance Bypass
On 5-kVA to 10-kVA models, the UPS includes manual maintenance bypass in a removable section of the rear of
the UPS. Maintenance bypass keeps connected equipment powered with utility power and allows replacement of
the UPS in the event of a UPS malfunction. Figure 1-14 on the next page, shows a diagram of bypass mode.
NOTE: The bypass power path does not protect the connected equipment from disturbances in the utility power
supply.
1.7. UPS States and Operating Modes
NOTE: See LED Indicators on page 44, for description of the run-indicator and alarm-indicator LEDs mentioned
in this section.
1.7.1. Normal Mode
When utility power is normal, Normal mode employs the rectier and inverter to provide voltage- and frequency-
stabilized power to the load. The charger charges the battery in normal mode. On the front- panel display, the
run-indicator (green) is ON, the alarm indicator is OFF, and the buzzer is silent. Figure 1-13 on the facing page,
shows a diagram of normal mode.

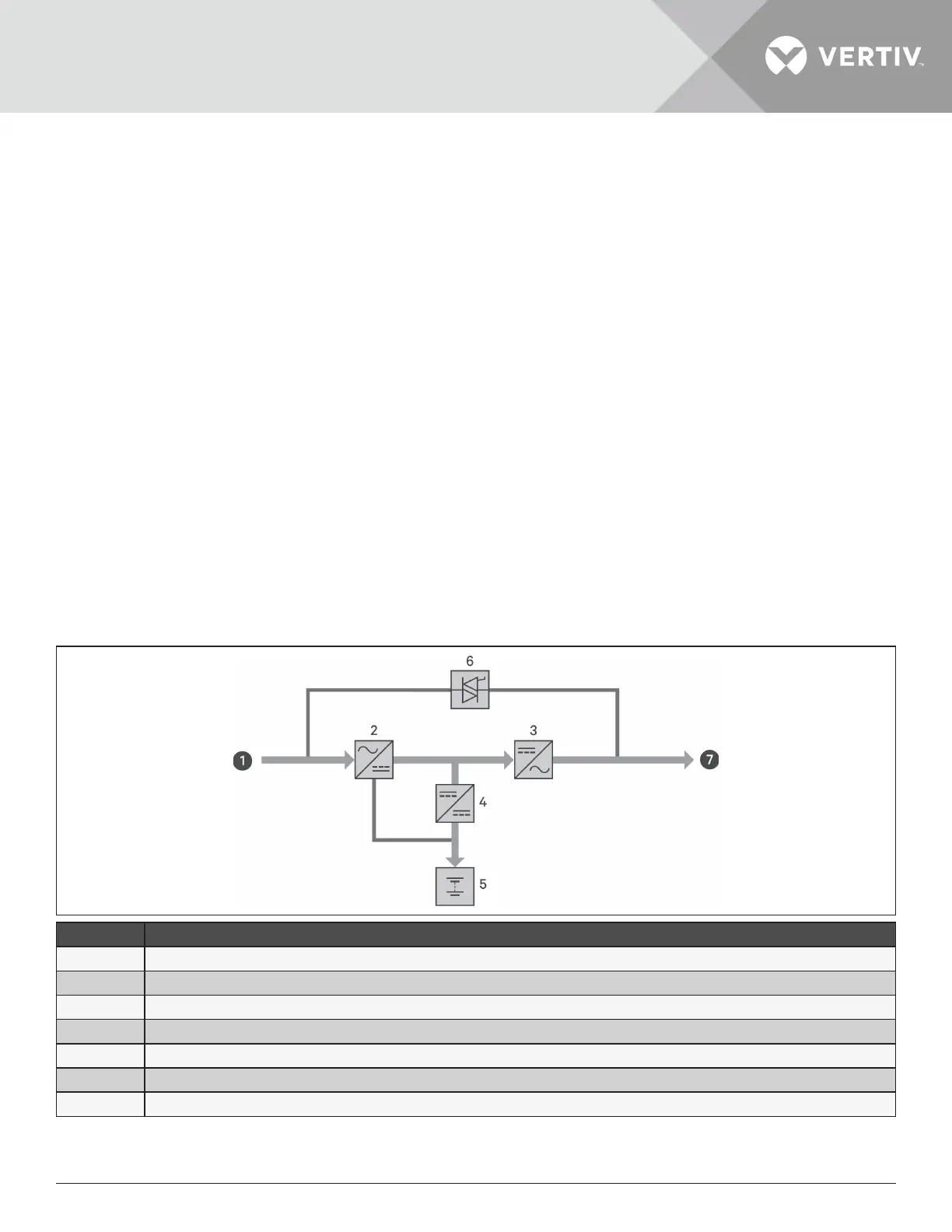

Figure 1-13 Normal-mode Operation
ITEM. DESCRIPTION
1 Mains/Utility input (by-pass input)
2 Rectier/PFC
3 Inverter
4 Battery charger
5 Battery
6 Bypass static switch
7 UPS output

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
