Vertiv Liebert HPM User Manual

A---2
English
Liebert HPM --- A/W/F/D/H

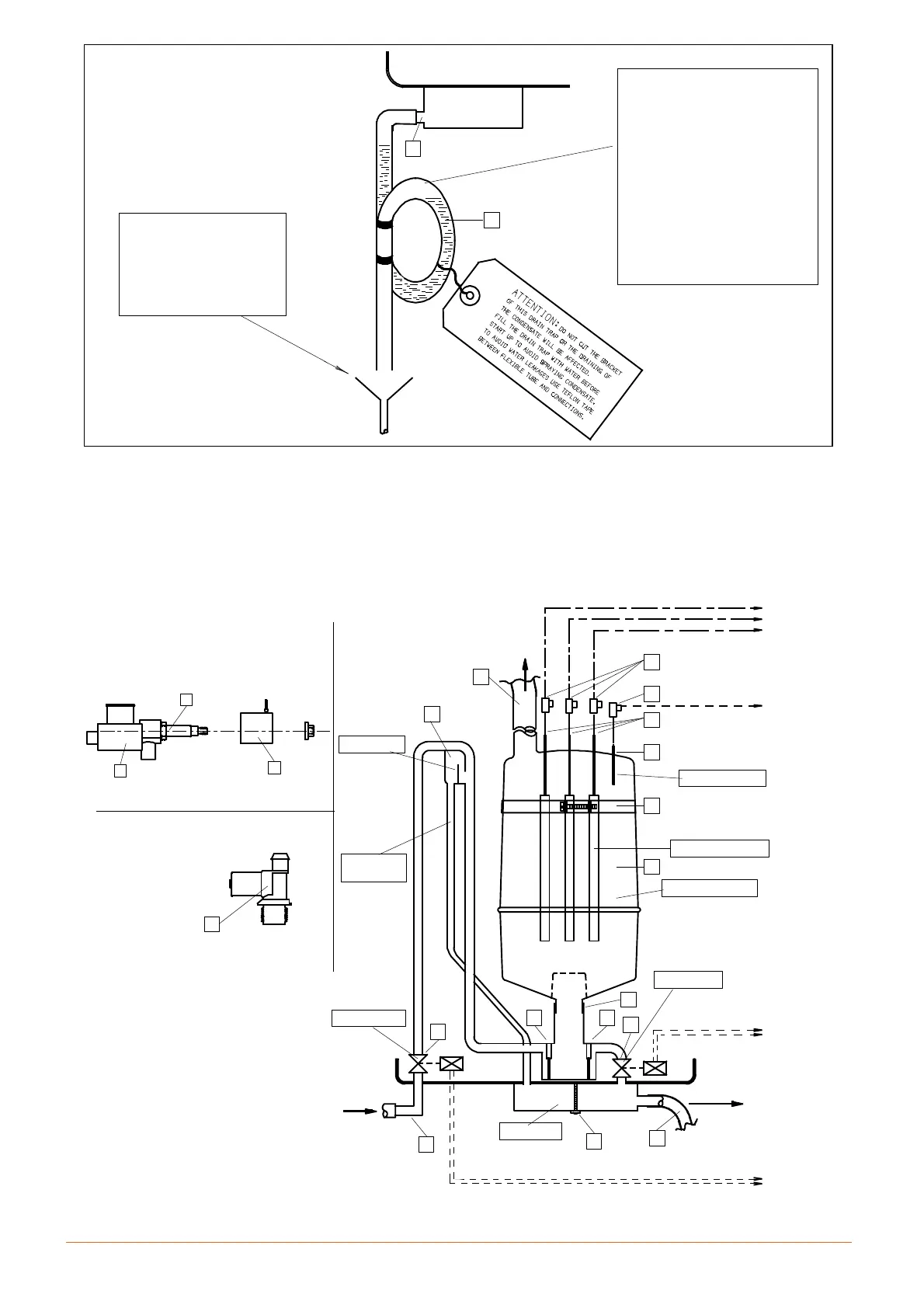

Fig. b --- Drain water connection
L
K
DRAIN WATER DEVICE
Dispose the d rain water into
an ordinary drainage net-
work, using a funnel (the
drainage network must be
able to withstand water tem-
peratures up to 100 ° C).
WATER DRAIN TUBING
It is supplied a hose with an integ-
ral drain trap.
DO NO T DISMANTLE THE DRAIN
TRAP.
S DO NO T DISMANTLE THE
DRAIN TRAP.
S Thehoseisalreadyfittedonto
the humidifier drain outlet (K).
S Fill the drain trap with water (L).
S The drain pipe is made of
plastic material which does not
conduct electricity.
NOTES:
1) Allow a 2% gradient towards the drain outlet.
2) Avoid back pressures in the drain piping.
A.3 --- Humidair components
The components of the HUMIDAIR humidifiers are shown
below.
Fig. c --- The humidifier and its connections
water
filling cup
overflow
tube
supply valve
drain tank
from
from
drain valve
steam cylinder
power electrodes
level electrode
from
from
steam
humidifier
power
electrodes
to electrical
supply
level sensor
to interface
supply valv
e
to interface
supply valv
e
to interface
outlet
drain
outlet
water
supply
P
U
L
Y
Z
C
R
V V
T
G
D
N
F
E
SUPPLY VALVE (F)
DRAIN VALVE ASSEMBLY (D)
A
O
F
H
S
