Liebert HPM --- A/W/F/D/H
App. A --- HUMIDAIR humidifier
A.1 --- Preface
The HUMIDAIR represents the best humidifier technology
available, guaranteeing the steam as clean as possible to-
gether with simple maintenance.
In order to obtain optimum performance from the HU-
MIDAIR it is advisable to read this manual carefully.
Tab. a --- Humidair specifications
HPM
MODEL
HUMIDAIR
MODEL
MAIN POWER SUPPLIES
(V ± 10%)
SETTING
ABSORBED
CURRENT
POWER
MAX. CYL I N -
DER WA TER
VOLUME
MAX. SUP-
PLY WATER
QUANTITY
MAX. DRAIN
WATER
QUANTITY
[kg/h] * [A] [kW] [l] [l/min.] [l/min.]
S0F KUECLA 230V / 1ph / 50Hz 0.6...2.0 6.5 1.5 1.7
0.6 4.0
S0H...S1D KUECLB
400V / 3ph / 50Hz
1.3...4.5 4.6 3.0 3.3
S1E...S2G
M 2 H --- 3 A
KUECLD
2.7...9.0 9.0 5.8
5.5
M3F...M7L
3.9...13.0 13.0 9.0
L 8 F --- 9 H
Tab. b --- Humidair specifications for Displacement unit
HPM
MODEL
HUMIDAIR
MODEL
MAIN POWER
SUPPLIES
(V ± 10%)
SETTING
ABSORBED
CURRENT
POWER
MAX.
CYLINDER WA-
TER VOL UME
MAX.
SUPPLY WA-
TER QUANTI TY
MAX. DRAIN
WATER
QUANTITY
[kg/h] * [A] [kW] [l] [l/min.] [l/min.]
S0F D KUECLA 230V / 1ph / 50Hz 0.6...2.0 6.5 1.5 1.7
0.6 4.0
S0H...S1D D KUECLB
400V / 3ph / 50Hz
1.3...2.0 2.0 1.3 3.3
S1E...S2G D
M2H D
KUECLD 2.7...4.5 4.6 3.0 5.5
For humidifier curre nt (FLA) and rated power, refer to electrical featur es in the air conditioner manual.
(*) Unit is factory---set to produce about 70% of the maximum value (see iCom manual).
A.2 --- Installation
The humidifier is supplied already mounted within the air
conditio ner. The only necessary operations are the connec-
tions for t he supply water (Fig. a) and drain water (Fig. b).

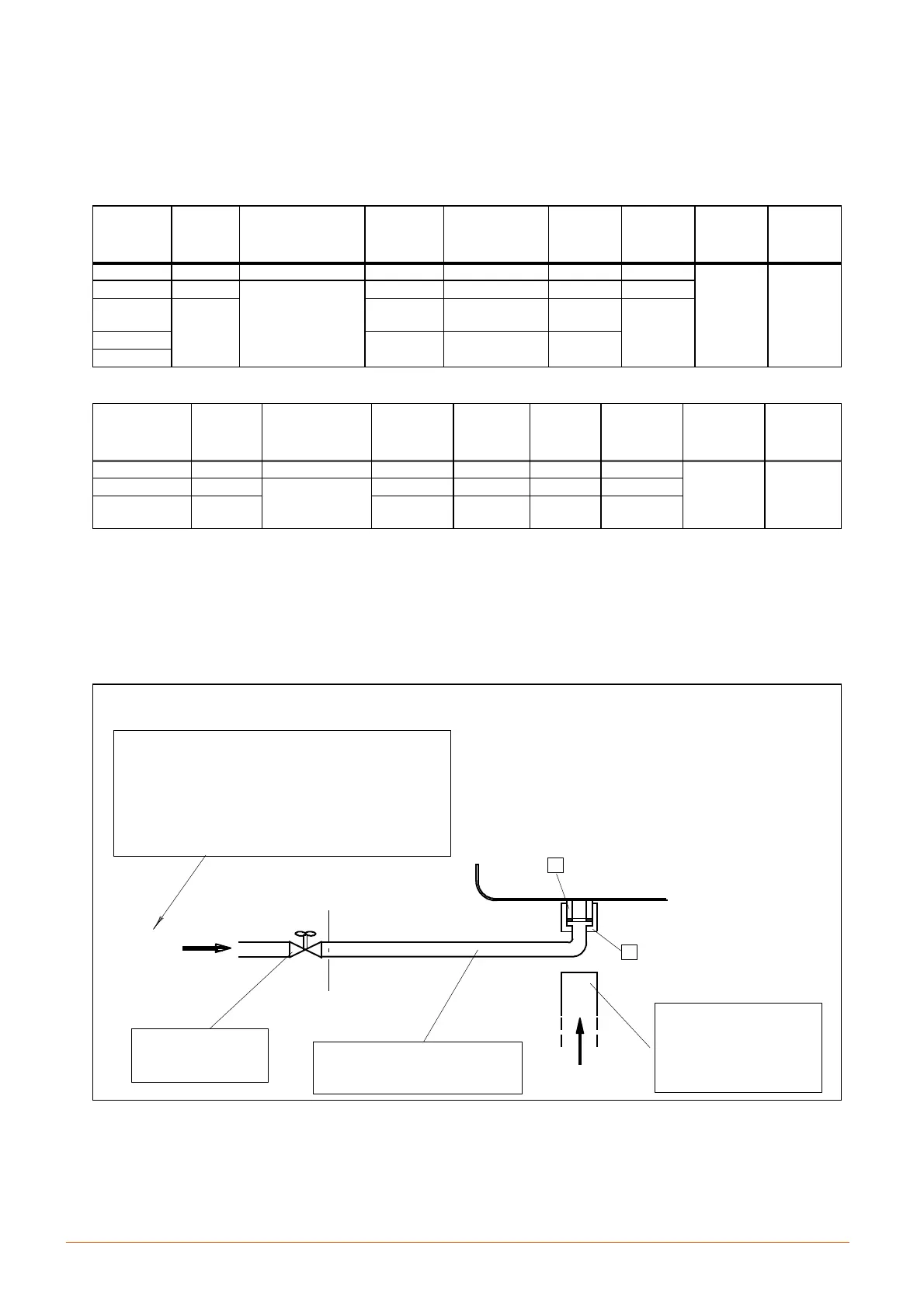

Fig. a --- Supply water connection
C U T --- O F F T A P
Must be included in the
supply water tubing.
SUPPLY WATER TUBING
S It is supplied a 1.5 m long plastic
tube, with ½” G m connections.
ALTERNATIVE SUPPLY
WATER TUBING
Unscrew the ring nut A and
connect a tube straight to
the 3/4”G Male connection
B on the humidifier.
water
supply
A
B
supplying limit
SUPPLY WATER FEATURES
S The supply water temperature must never exceed 40° C.
S The supply waterpressuremust be between 0.3and 6 bar.
If greater, use a pressure reducing valve set to 3---4 bar.
S Sanitary water should b e used. Do not use demineralized
water or water containing impurities.
S Conductivity range : 125--- 1250 mS/cm.
