Vertiv Liebert HPM User Manual

Technical data table
Liebert HPM --- A/W/F/D/H
B --- 5
English

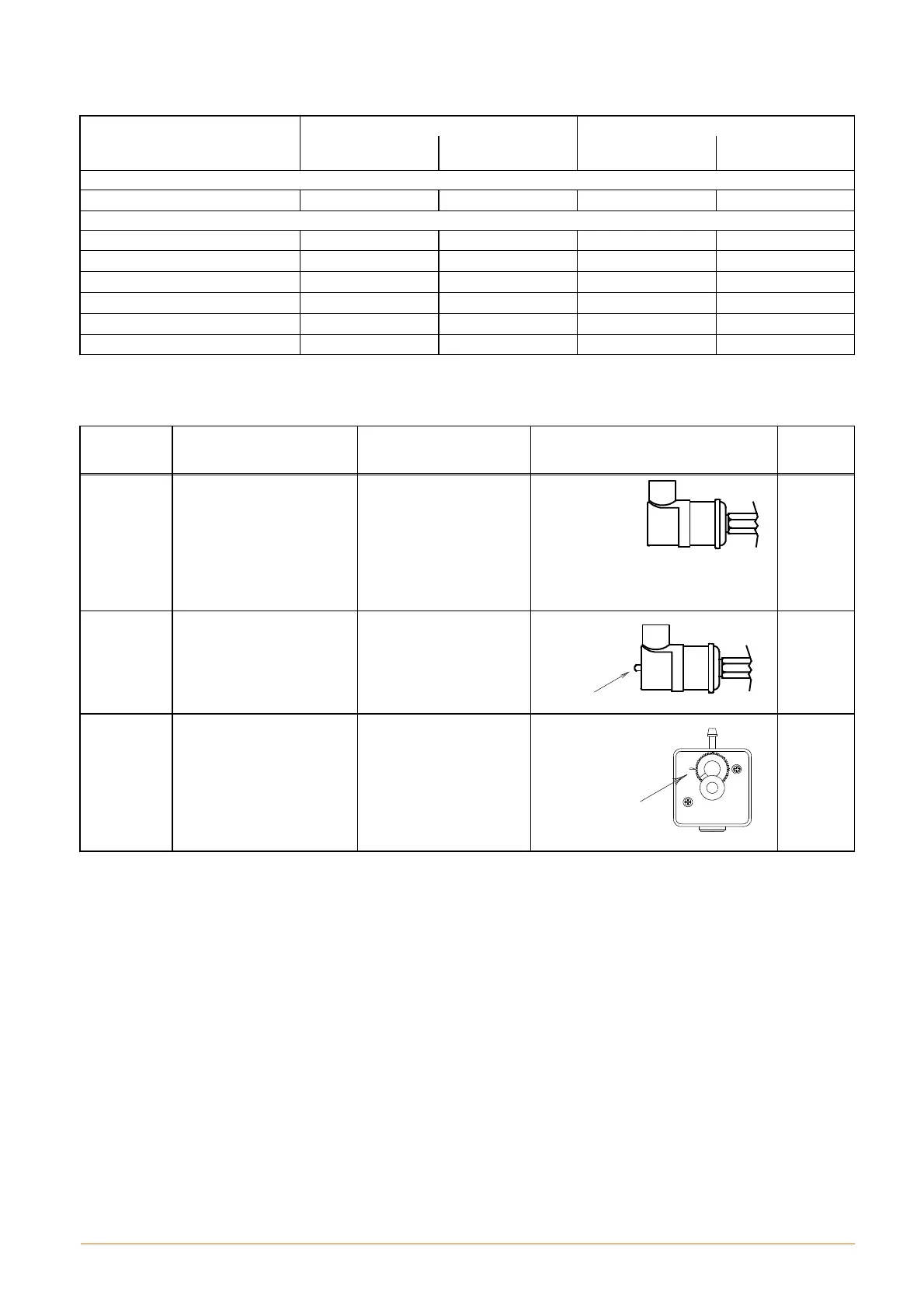

Tab. 5 --- Electrical data (optional component)
Component ELECTRICAL HEATING HUMIDIFIER
Model FLA [A]
Nominal power
[kW]
FLA [A]
Nominal power
[kW]
(230V / 1Ph / 50Hz)
S0F
6.50 1.50 6.50 1.50
(400V / 3Ph / 50Hz)
S0H...S1D
6.50 --- 4.50 3.00
S1E...S2E U/O
8.06 5.85 9.00 5.08
M 2 H --- 3 A U / O
11.00 7.05 9.00 5.08
M3F...M7L U/O
22.00 15.00 1.00E+30 9.00
L8F U
26.00 18.0/ 3 13.00 9.00
L9H U
26.00 18.0/ 3 13.00 9.00
Tab. 6 --- Calibrations of electrical components
Refrigeration
Circuit Item
no.
COMPONENT SETTING NOTES Contact
16 Low Pressure Switch (LP)
STOP 4.4 barg
START 6.0 barg
DIFFER. (fixed) 1.6 bar
(fixed setting --- automatic
reset)
Delayed
automatic reset
(see iCOM manual)
Nolmally
closed
3 High Pressure Switch (HP)
STOP 37.0 barg
START 30.0 barg
DIFFER. (fixed) 7.0 bar
(fixed setting --- manual
reset)
Reset
Nolmally
closed
---
Clogged filter
differential pressure switch
(CF)
Filter G4 = 2 mbar
Filter G5 = 3 mbar
Setting ring
Nolmally
closed
