Vertiv Liebert HPM - Page 39

Installation drawings
C --- 3
Liebert HPM --- A/W/F/D/H
English

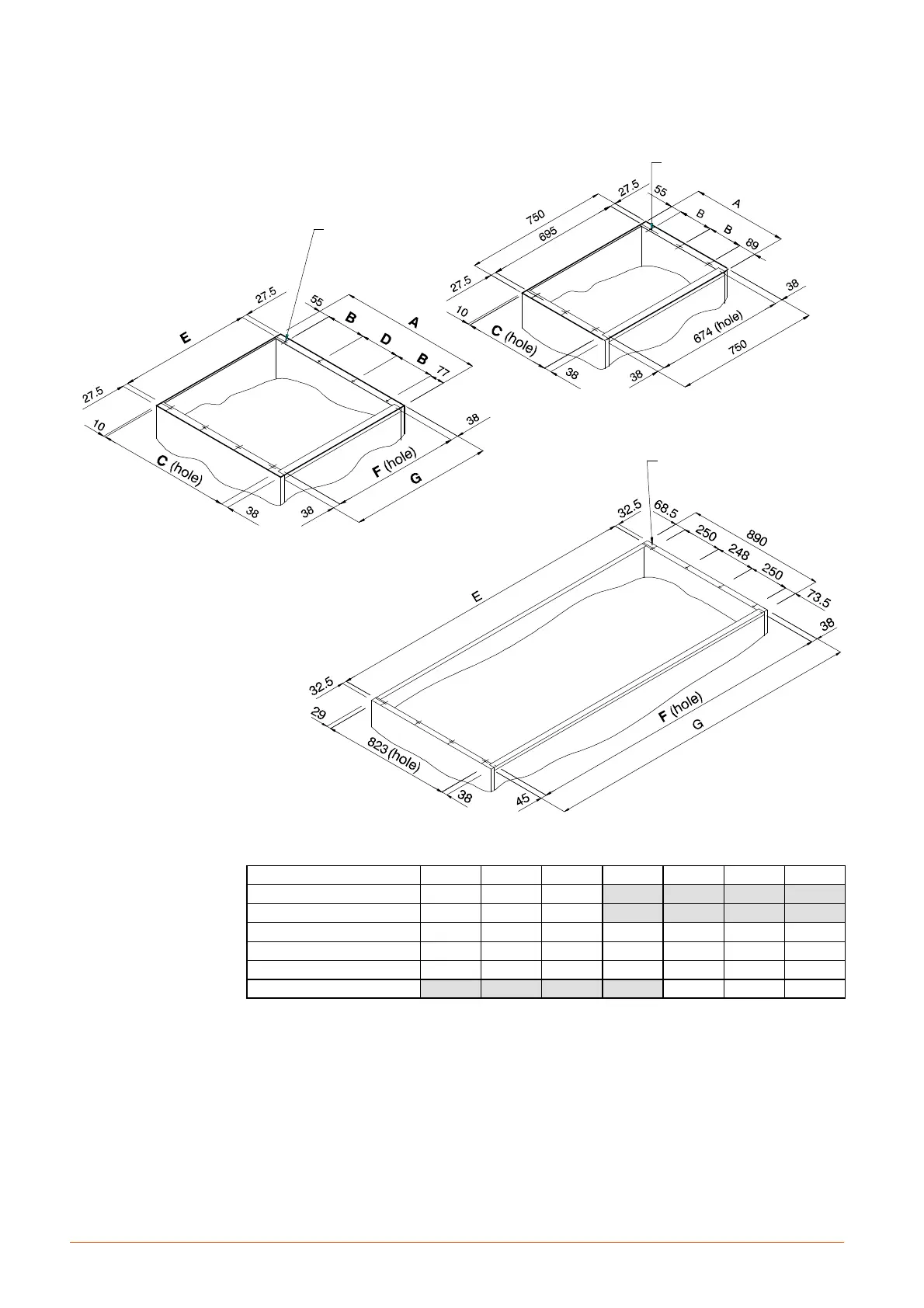

Fig. 5 --- Air inlet and outlet --- hole for plenum connection
nr.4+4 ø5,2mm
nr.4+4 ø 5,2 mm
S 0 F --- 1 D M o d e l s
S 1 E --- 2 G
M2H --- 7L Models
nr.4+4 ø 5,2 mm
L 8 F --- 9 H M o d e l s
Models A mm B mm C mm D mm E mm F mm G mm
S0F 400 128 352
S 0 H --- 1 A --- 1 D 500 178 452
S 1 E --- 1 G --- 2 E --- 2 G 750 206 702 206 695 674 750
M 2 H --- 3 A 850 240 802 238 945 924 1000
M 3 F --- 7 L 850 240 802 238 1695 1674 1750
L 8 F --- 9 H 2485 2460 2550
