Vertiv | Liebert LVC | User Manual 12
Installation

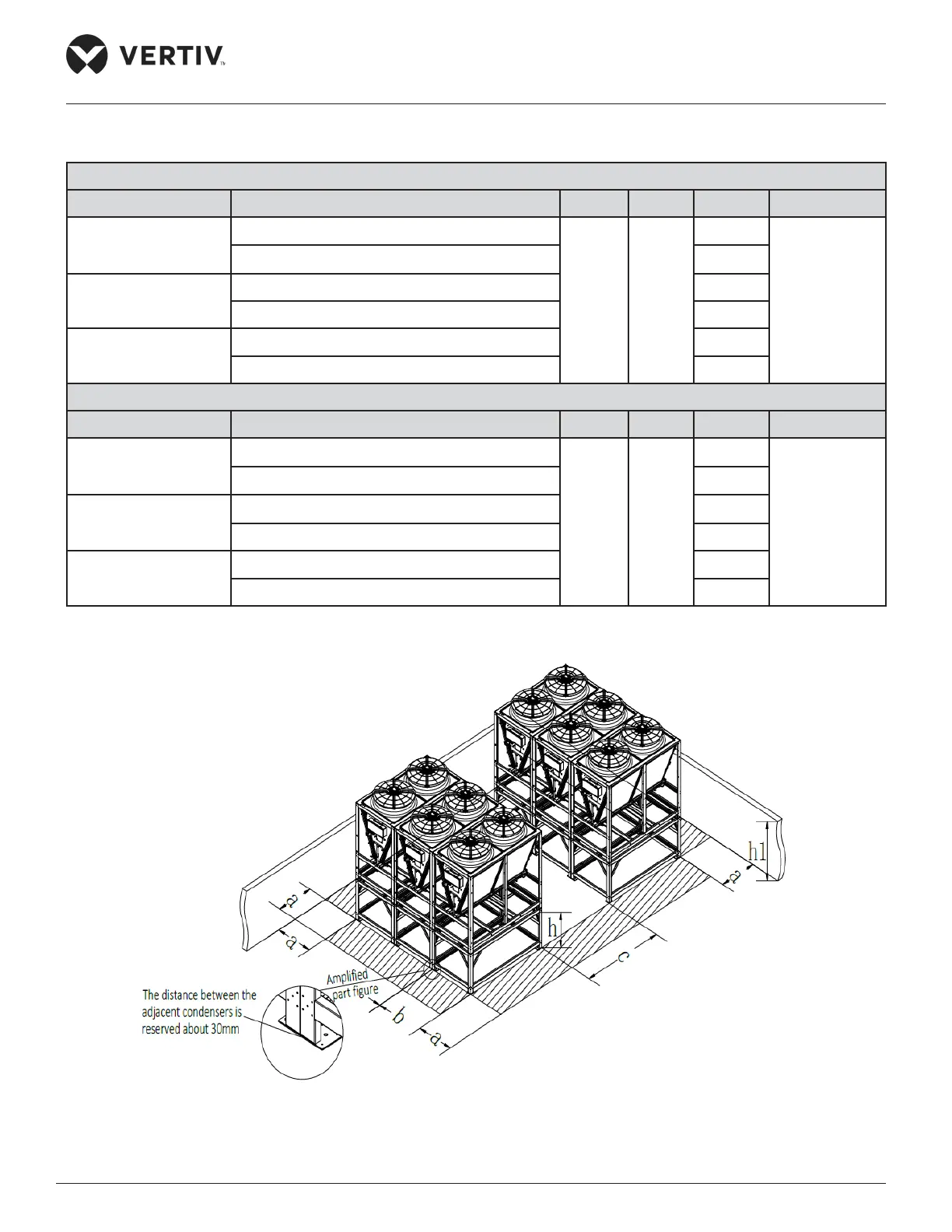

Table 1-1 Spread Evenly Installation Space Required
The quantity of installed condensers is less than 30
Model h (engineered mounting bracket height) h1 a b c
LVC088 / LVC106
0≤h<0.5
≤1 ≥1.5
≥1.8
≥1.0
≥0.5 ≥1.4
LVC140
0≤h<0.5 ≥2.0
≥0.5 ≥1.6
LVC152 / LVC170
0≤h<0.5
≥2.2
≥0.5 ≥1.8
The quantity of installed condensers between 30-50
Model h(engineered mounting bracket height) h1 a b c
LVC088 / LVC106
0≤h<0.5
≤1 ≥1.5
≥2.0
≥1.0
≥0.5 ≥1.6
LVC140
0≤h<0.5
≥2.2
≥0.5 ≥1.8
LVC152 / LVC170
0≤h<0.5
≥2.5
≥0.5 ≥2.0
Figure 1-9 Side by Side Installation Space Requirement
