NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
Individual Battery Capacity Trend Diagram or Info Screen
Displayed on the Battery Device Group status page are the individual batteries installed in the system. Click on an individual battery
(Battery 1 or Battery 2) to display its "Capacity Trend Diagram" or “info screen”. The actual display of an individual battery capacity trend
diagram or info screen is dependent on the NCU configuration (see Figure 49 or Figure 50).

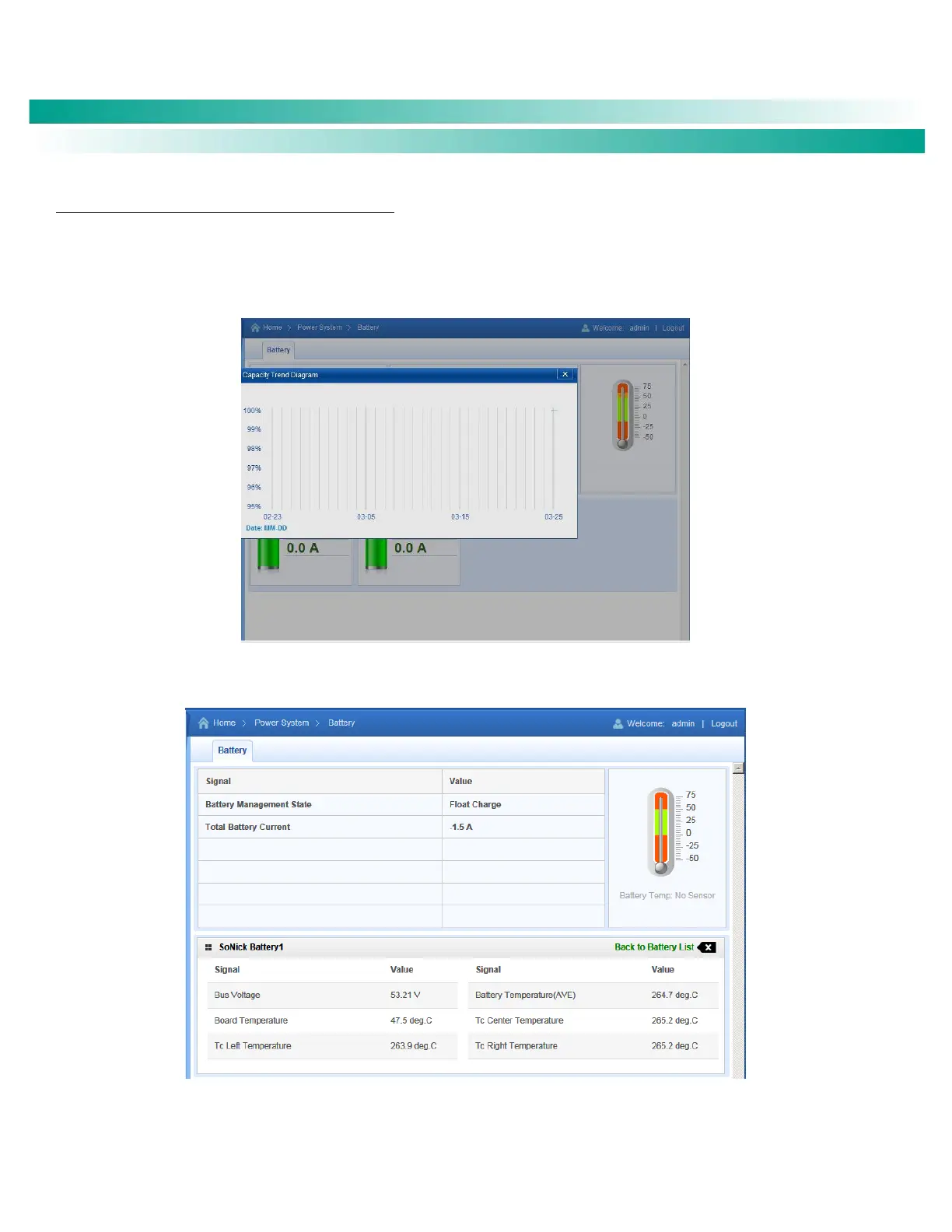

Figure 49. Individual Battery Capacity Trend Diagram
Figure 50. Individual Battery Capacity Info Screen (FIAMM SoNick [Sodium Nickel] Battery)
