Chapter 3 Web Interface of RDU501
71
RDU501 Intelligent Monitoring Unit User Manual

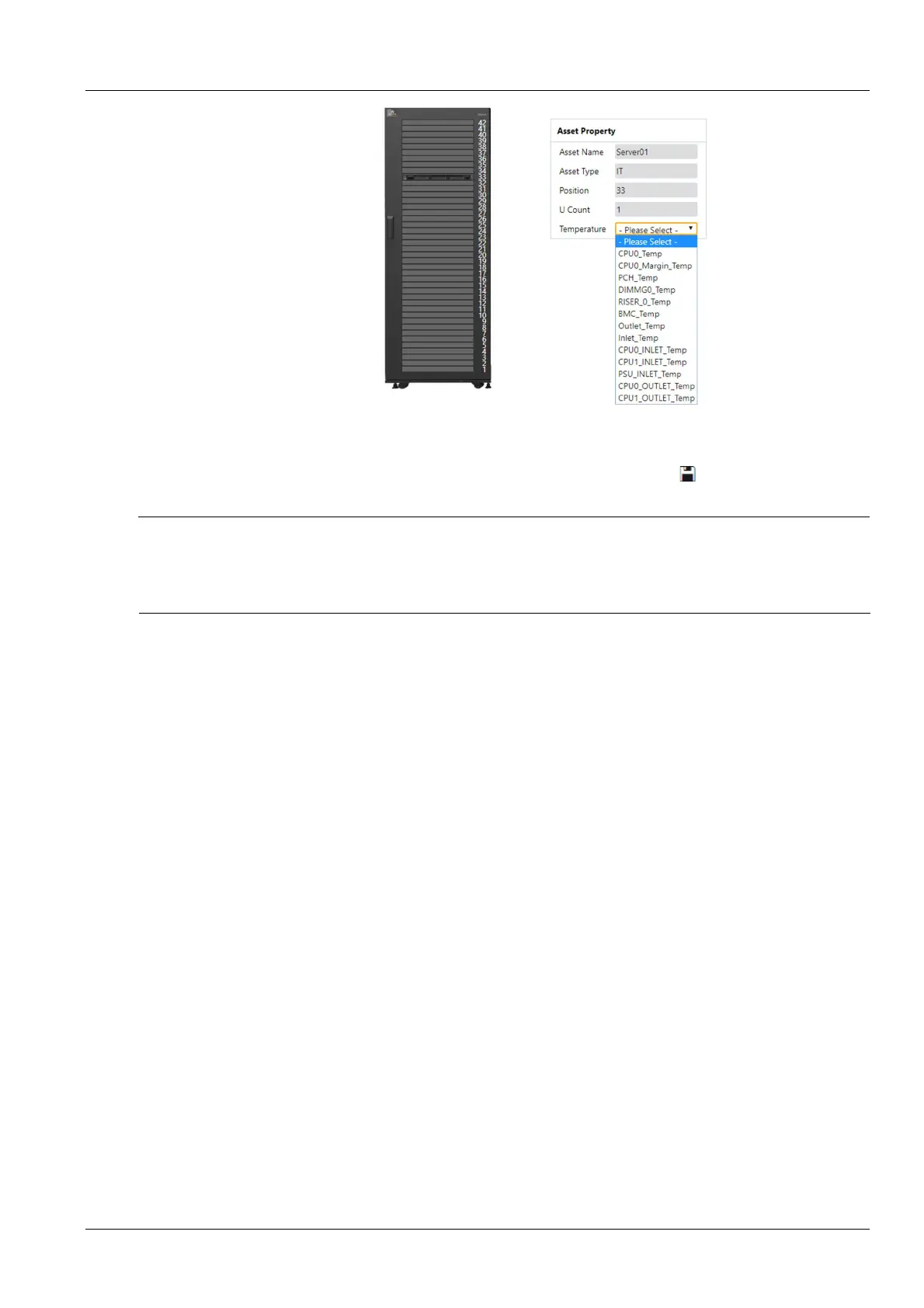

Figure 3-106 Put asset in shelf- asset properties
When you remove an asset, drag the device from the rack to the asset list on the left.
After completing the operation of removing an asset, you need to click the save button at the top right of the
page to save.
Note
1.
If 2D modeling is not completed, when accessing the “Put asset in shelf” page, the message "Please configure 2D modeling".
Click on "Please configure 2D modeling" and you will be taken to the 2D modeling page.
2.
The range and color of the space capacity level can be modified in the Space Capacity Color of the Smart Solution Modeling
-> 2D Modeling -> Capacity Color Setting.
3.4.8 Configuration Management
In the RDU501 homepage, click the Configuration Management menu on the left to view six submenus, including:
Infrastructure Device Mgmt, Batch Configuration, Device Signal Configuration, Notification Mode
Configuration, Email SMS Configuration, and Alarm Linkage.
Infrastructure Device Mgmt
1.
Device management
Click the Infrastructure Device Mgmt submenu under the Configuration Management menu to bring up the page
shown in Figure 3-107.
