VESDA VESDA Maintenance Guide
www.xtralis.com 35

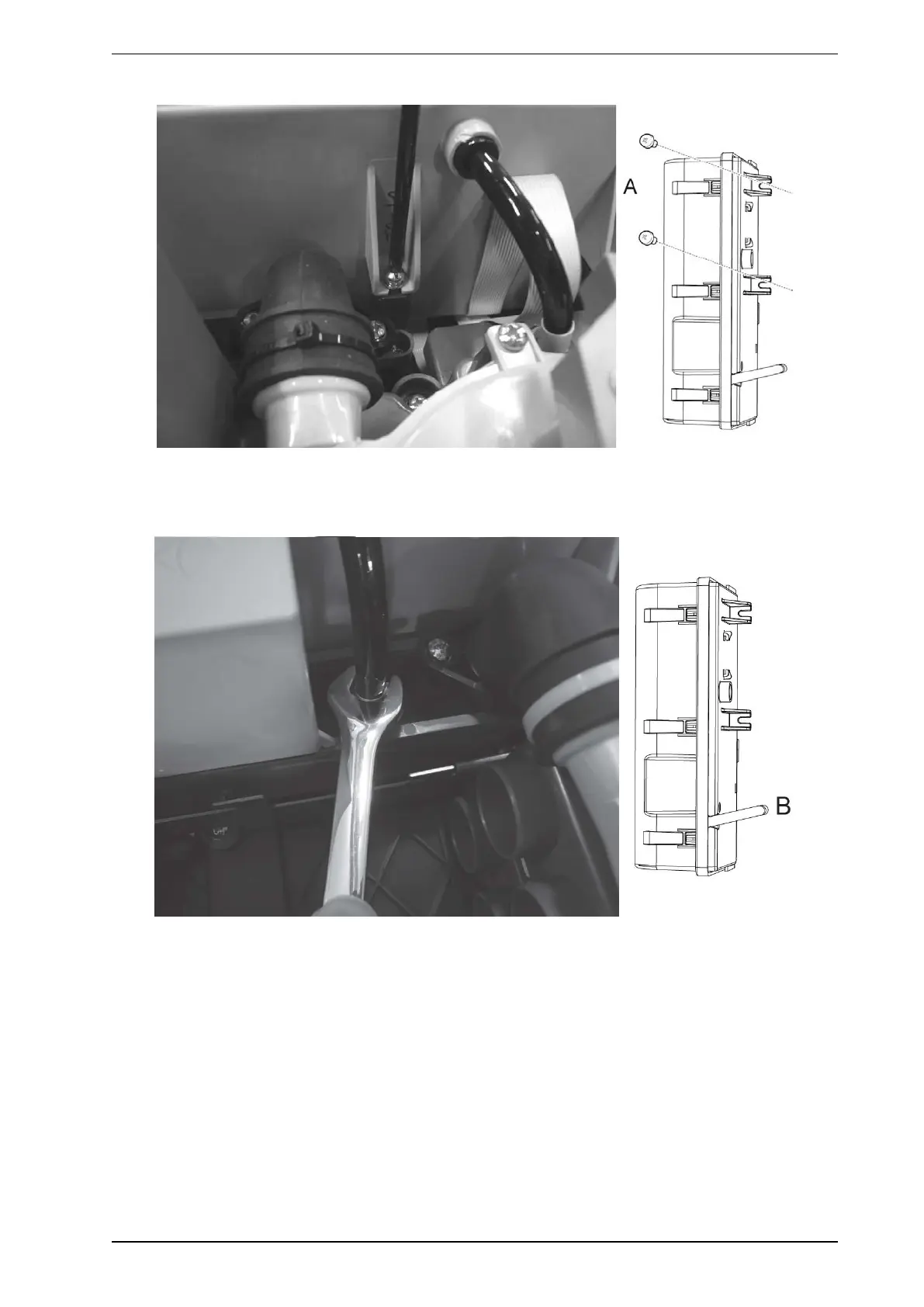

5. Remove the two screws (A) holding the chamber (Figure 8-25).
Figure 8-25: Remove Chamber Mounting Screws
6. Use a 10mm spanner or a large flat bladed screwdriver to press down on the black ring near the secondary
filter (B) whilst simultaneously using the other hand to remove long tube (Figure 8-26).
Figure 8-26: Remove Long Tube
