VESDA Maintenance Guide VESDA
36 www.xtralis.com

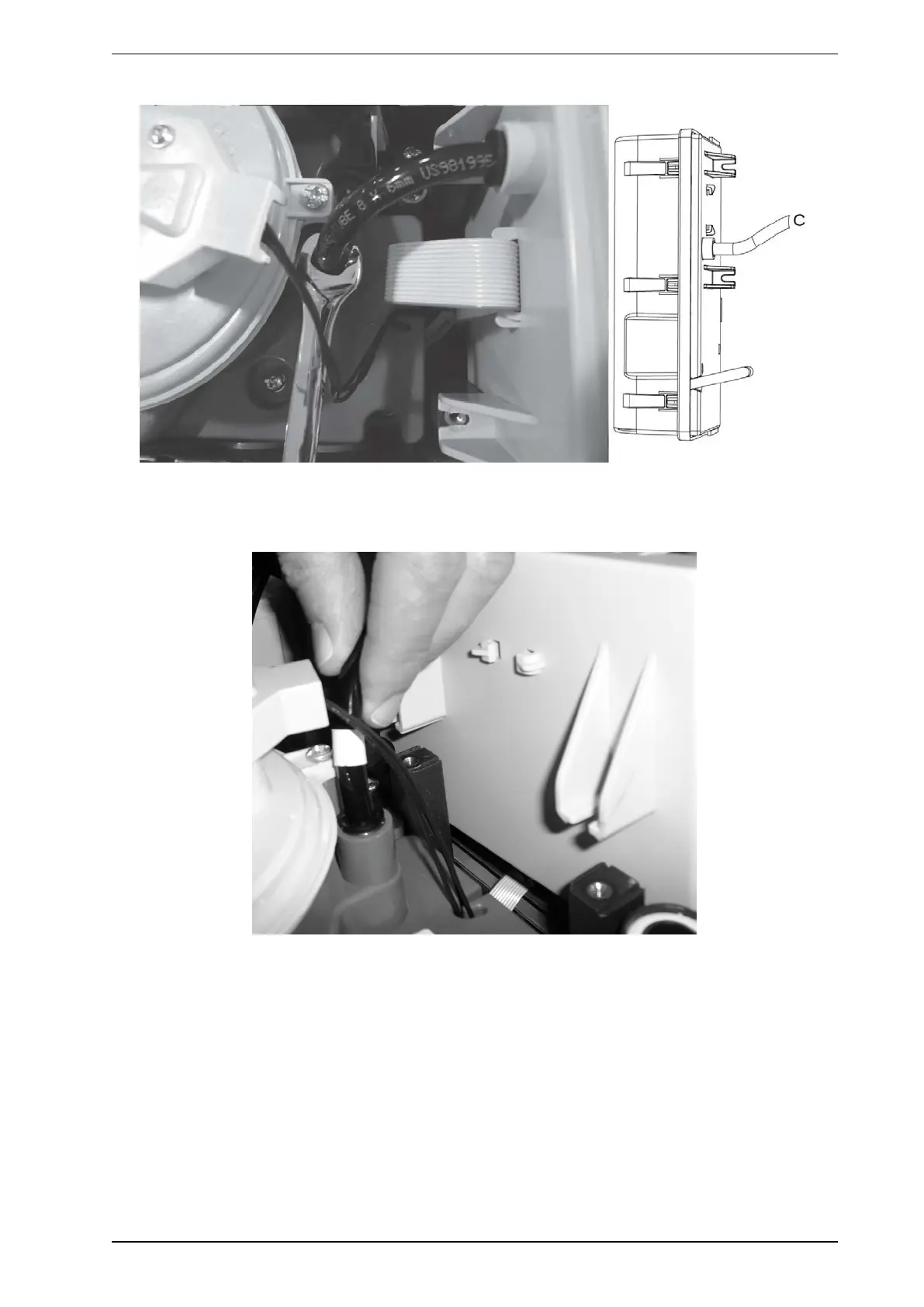

7. Repeat the step above on the black ring (C) near the aspirator to remove the shorter tube (Figure 8-27).
Figure 8-27: Remove Short Tube
8. Gently remove the Chamber. To prevent the tube from kinking, lift the chamber while removing the tube
(Figure 8-28).
Figure 8-28: Lift Chamber
