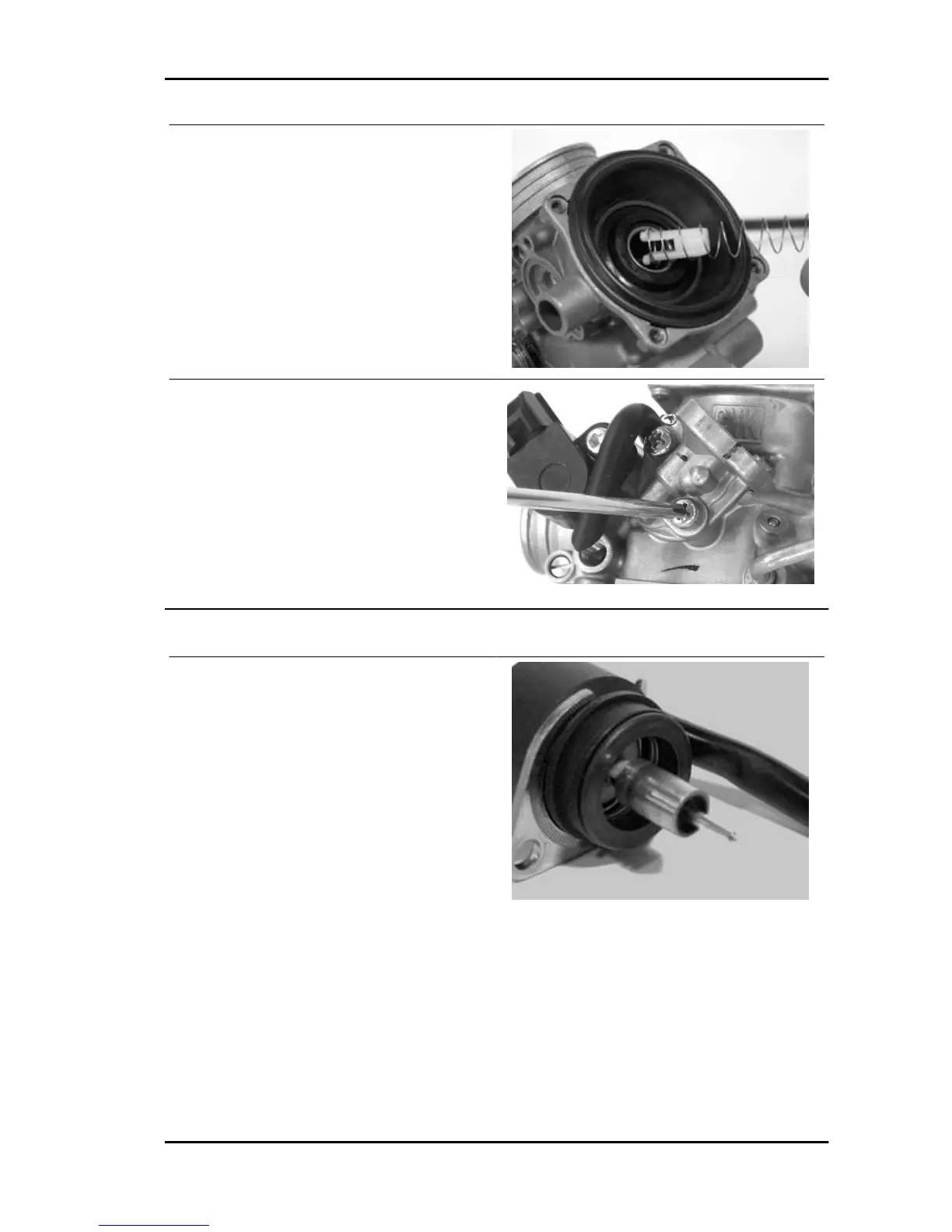

- Reassemble the spring with the pin lock.
- Remove the cover of the vacuum chamber being
careful to correctly insert the spring in its place on
the cover.
- Tighten the screws.
- Wash and blow dry the starter support.
Assemble a new gasket on the carburettor body
and tighten the 2 fixing screws.
Inspecting the automatic choke device
- Check that the automatic starter piston is not de-
formed or rusty.
- Check that the piston slides freely from the seat
to the support.
- Check that the piston sealing gasket is not de-
formed.
- The starter must be more or less functional de-
pending on the ambient temperature.
- Measure the protrusion of the piston as shown in
the figure and check its corresponding value.
- Make sure that the starter is adjusted for the am-
bient temperature.
- The starter should disconnect progressively by
means of electrical heating.
- Check the starter resistance when adjusted to the
ambient temperature.
