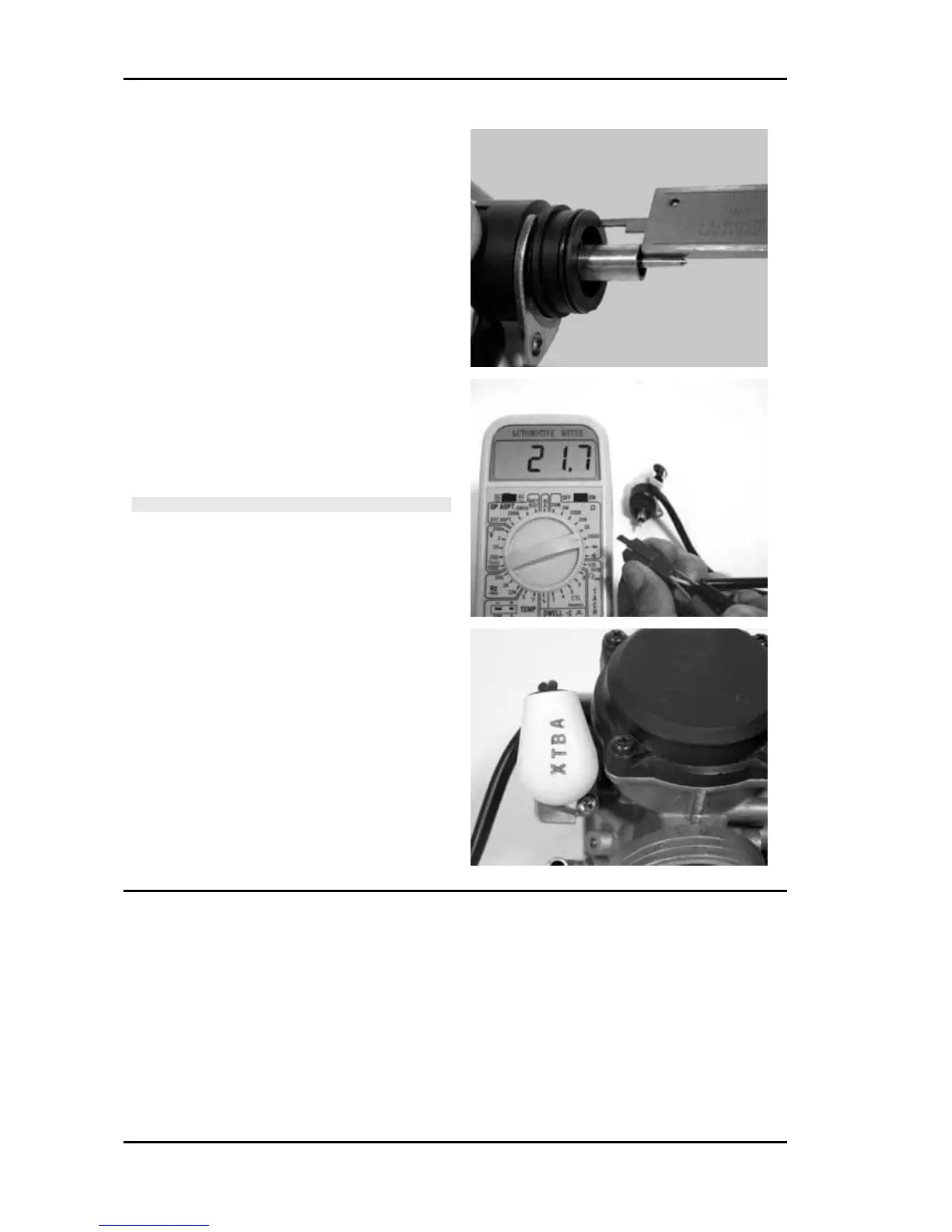

With a 12V battery power the automatic starter and
check that the piston protrudes as much as possi-
ble.
- The correct warm up time depends on the ambi-
ent temperature.
- If protrusion, resistance or timing values are dif-
ferent from the ones prescribed, replace the start-
er.
- Assemble the starter to the carburettor being
careful to position the O-Ring correctly, insert the
plate with the machined side contacting the starter,
tighten the fixing screws.
- Position the starter as shown in the figure.
- Assemble the protection casing.
N.B.
TO CARRY OUT THIS CHECK PAY SPECIAL ATTENTION
NOT TO GENERATE SHORT CIRCUITS USE A CABLE
SECTION WITH A TERMINAL SUITABLE TO BE CONNEC-
TED TO THE STARTER.
Characteristic
Check the automatic starter: Kehin: Protrusion
value
10 mm at about 20°C
Check the automatic starter: Keihin maximum
time
5 min
Starter resistance:
20 Ohm
Engine LXV 125
ENG - 144

Vespa LXV 125 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Seat Height	785 mm
Max Torque	9.6 Nm at 6, 000 rpm
Length	1, 770 mm
Front Brake	200 mm disc brake
Rear Brake	110 mm drum brake
Weight	114 kg
Top Speed	91 km/h
Transmission	Automatic CVT
Rear Suspension	Coil spring and hydraulic shock absorber
