iPM 200 generator module
® Vetaphone March 2021 3401201GB
Page 17 of 52
Forced air-cooling cools the Vetaphone generator module. For proper cooling, allow a minimum of
open space around the unit.
See table 5.2.1 for installation without extern ventilation or table 5.2.2 for installation with extern
ventilation installed.
To protect the unit from overheating, ensure that both the ambient temperature and the 24-hour
average temperature are not exceeded. The maximum temperature and 24-hour average are listed in
technical data in this manual.

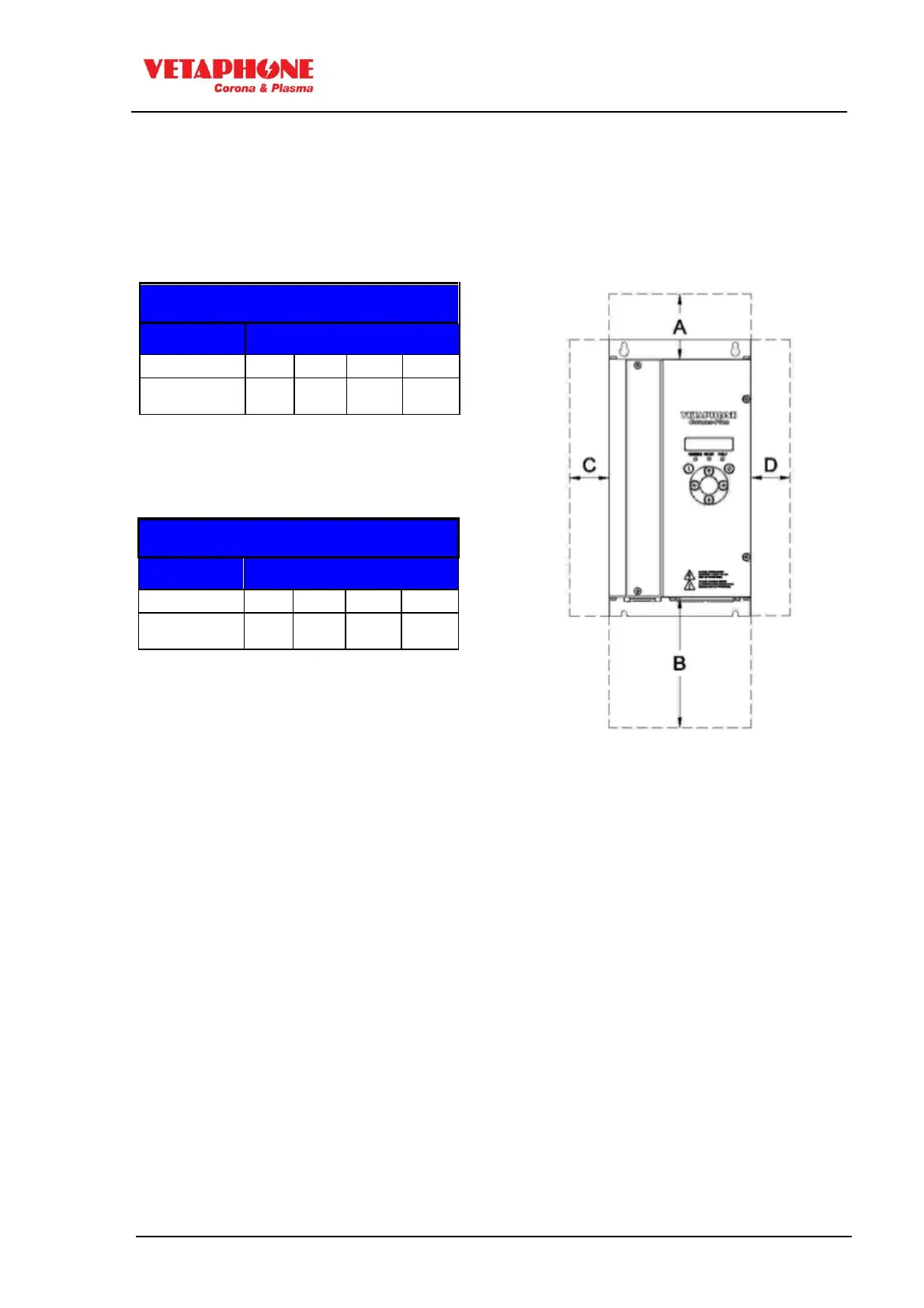

Minimum distances without extern
ventilation installed
Type
Dimension (mm)
A
B
C
D
iPM200
100
200
10
10
Table 5.2.1: Dimensions, required for adequate air
circulation and cooling without extern ventilation
installed
Table 5.2.2: Dimensions, required for adequate air
circulation and cooling with extern ventilation
installed
Minimum distances with extern ventilation
installed
Type
Dimension (mm)
A
B
C
D
iPM200
20
200
3
10
