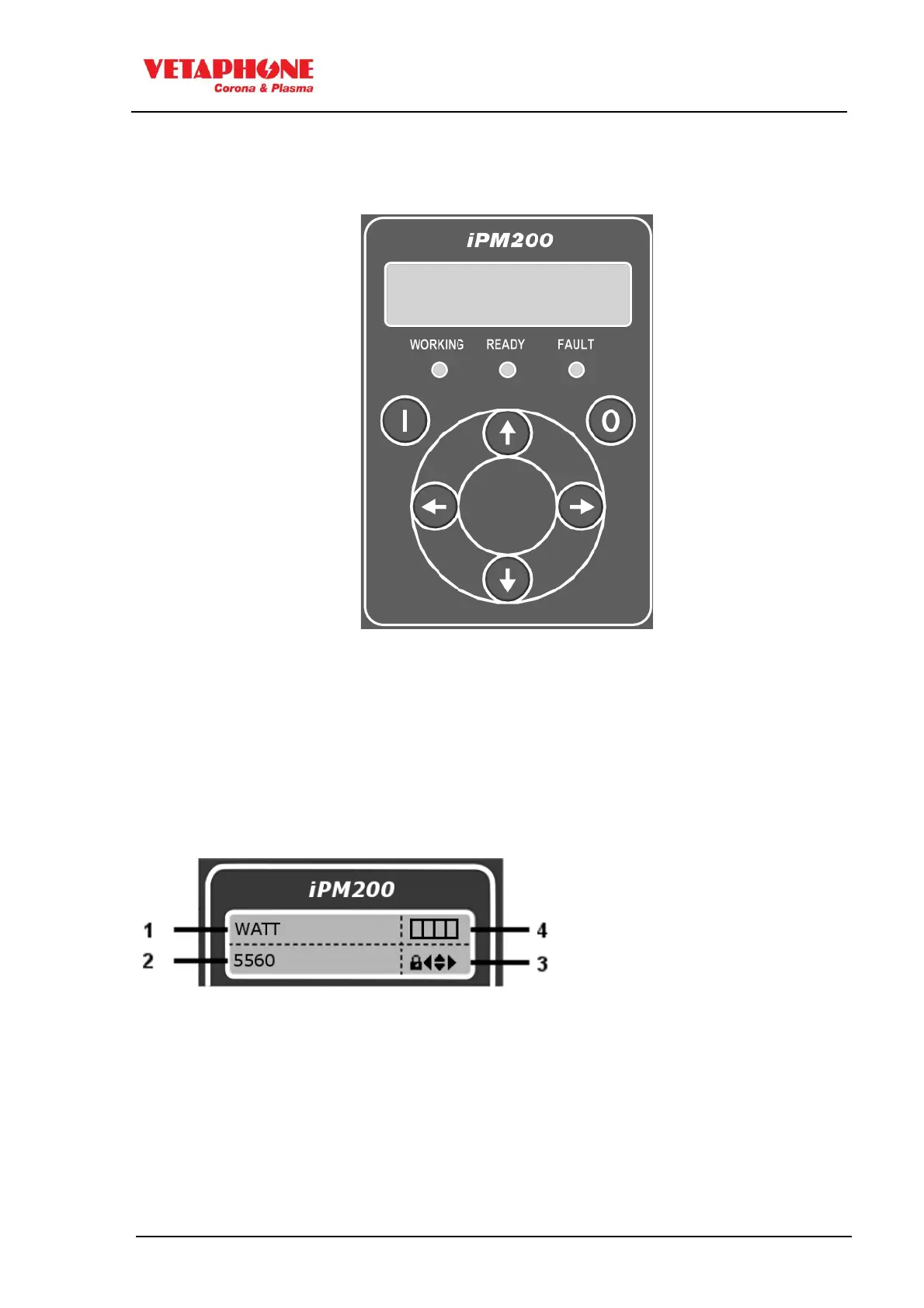

7.2.1 Control unit
On the front of the iPM200 generator, there is a control panel.
The control panel is divided into three sections:
1) LCD Display
2) 3 Status LEDs
3) Keys for operating, navigating the menu and changing parameters.
7.2.2 LCD Display
The LCD is divided into 4 sections
1. Menu title
2. Current value
3. Navigation Icons
4. Status Icons
LCD Display
Status LEDs
OPERATION
and
NAVIGATION
KEYS
