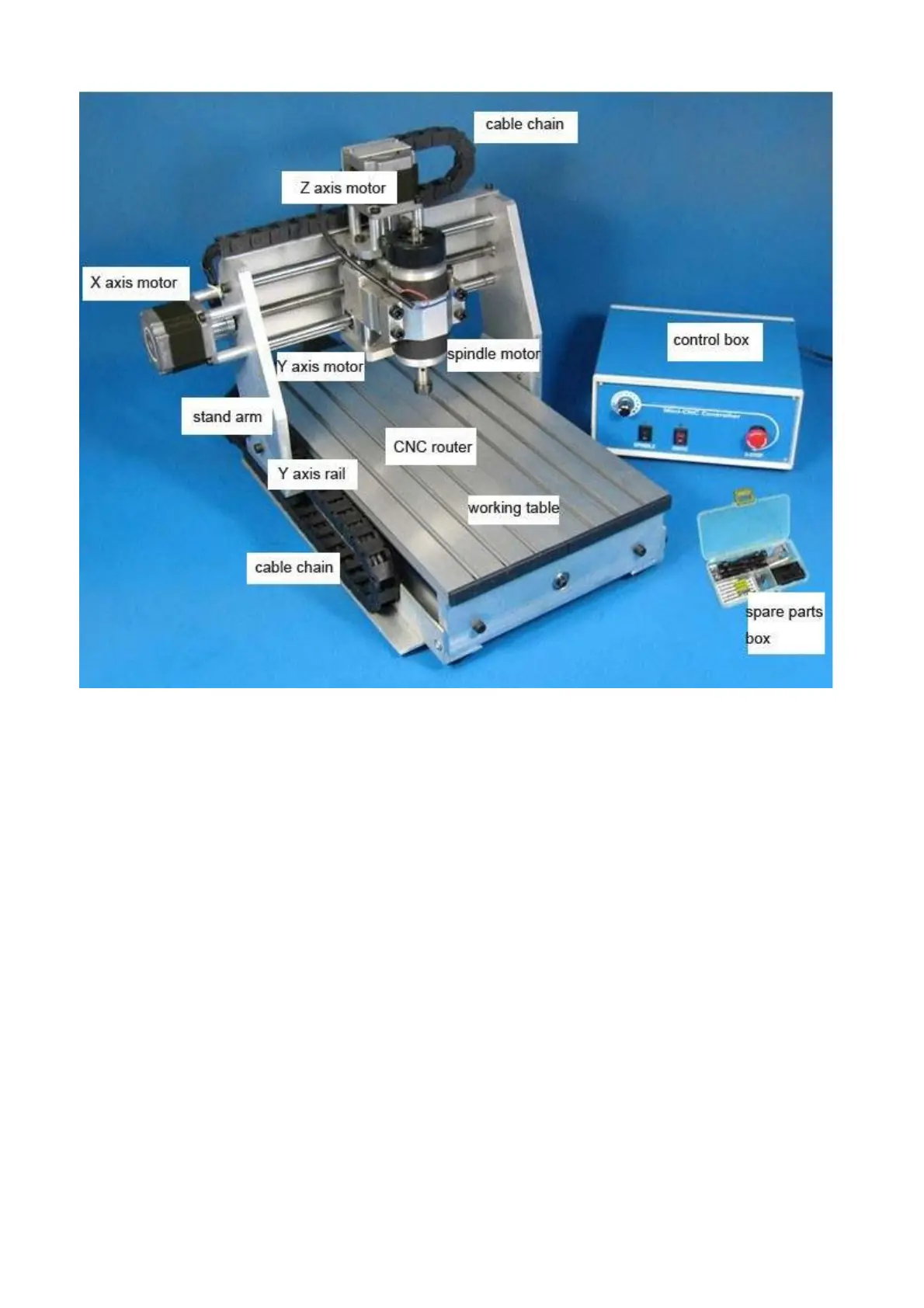

(1) Our machine is made of the aluminum alloy, if you drop it from the top on the floor or hard hit, it will
damage the machine. Please put this machine on the stable desk, the thin desk may cause more
resonance when it is running.
(2) In the electrical control box, there are the switching power supply, stepper driver board, the spindle
speed regulator, please put it in a ventilating condition and around it, there should not have the
electromagnetic interference within 10 meters.
(3) Pls sort out the power cables and connecting cables, do not put it in a mess, maybe it will obstruct the
working of the machine. Please remain some excess of the cable for the gantry and the X axis.
(4) Pls try to study yourself and test it, If you have some questions, you can ask us or discuss it on the
CNC Forum
2.The wiring and yourself-checking
(1) Wiring:
Put the cables into the corresponding port, on the connectors there print the X, Y, Z, the cable of the
spindle has no mark, but it is a two-wires plug. On the electrical control box, it print the marks of the ports.
The LIMIT-IN is the spare port for the 4th axis or external limit switch or E-stop etc.
Now just connect the X, Y, Z stepper motor cables and the spindle cable, but the parallel cable do not
connect it at first.
Please make sure that all the connectors are tight to avoid the loose contact.
