2. Yourself-checking
The aim of the checking is to make sure that the electrical control box and the machine are well wired
and all axis can be controlled.

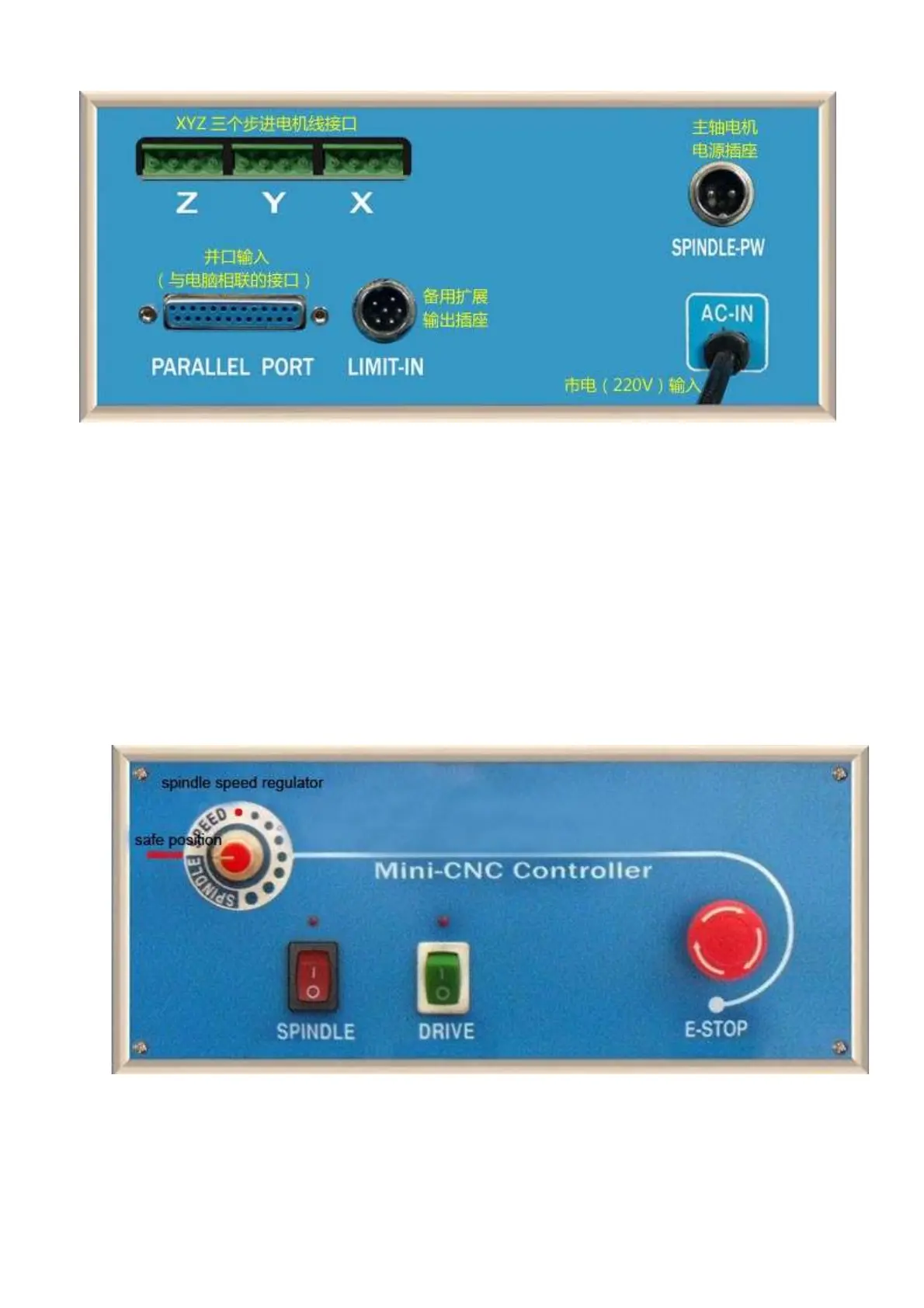

At first, power off the spindle and the driver power, “o” is off, “l” is on, and regulate the spindle in this
safe position(see the photo below). The E-stop switch is off.
Then wrest the X axis screw by hand to feel it (at this time you can move it easily), and then connect
the power of electrical control box and open the driver switch, at the time, you can hear a small voice of
the moving of the X, Y, Z stepper motors. Now try to move the X axis screw to check whether you can
move it easily by hand,if it does not move, it means this axis have been controlled by the control box, after
this, please try to move the Y, Z axis screw(move the coupling is ok), if they can not be moved, it means
all axis are self-locked and fine.
If anyone screw can be moved, please check the wiring of this axis to see whether it is well connected, if
the 3 axis all can be moved, please contact us.if 3 axis are ok please continue.
Then please power off the driver and make sure the spindle is in the safe position. Power on the spindle
and adjust clockwise slowly of the spindle speed regulator to the first dot, the spindle motor will start to
