VEVOR LB210A - Exploded Drawing

Safety Tips
Number: JT190199990 Version Number: A1
Note: Subsequent versions of this specification are subject to change without prior notice. Thank you
20/23
Assembly system

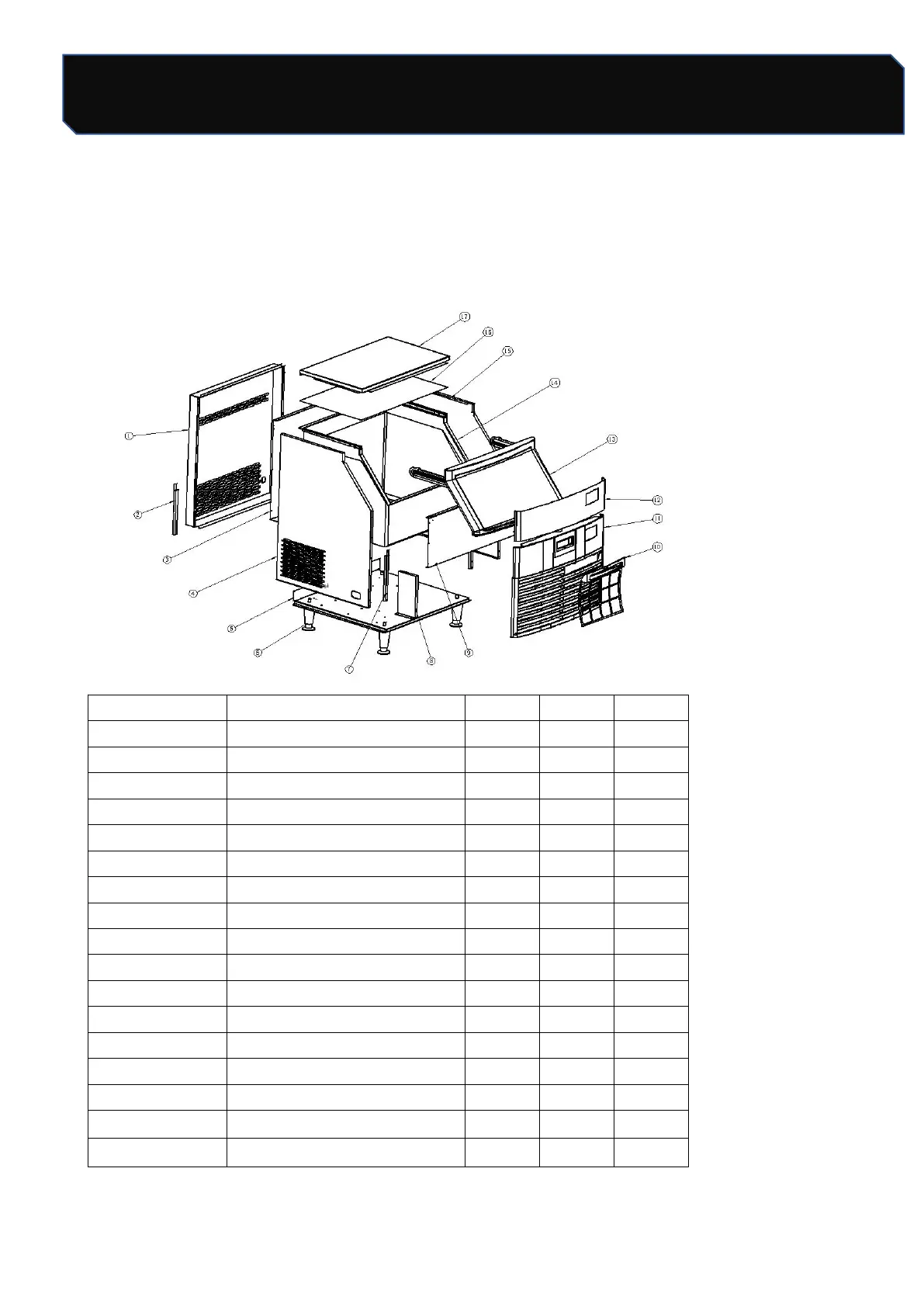

18. Explosive maps
Assembly system
Serial number
Figure 1
LB175A
LB210A
LB300A
1
Backward back panel
1
1
1
2
Rear vertical bracket
2
2
2
3
A of inner guard
1
1
1
4
Left panel
1
1
1
5
Floor
1
1
1
6
Machine foot
4
4
4
7
Front vertical bracket
2
2
2
8
Windscreen
/
/
1
9
B of inner guard
1
1
1
10
Filter
1
1
1
11
200P ventilation windows
1
1
1
12
Front trim panel
1
1
1
13
Door panels
1
1
1
14
Ice storage tanks
1
1
1
15
Right panel
1
1
1
16
ABS board
1
1
1
17
Top panel
1
1
1
