22
Hitching the machine
Draft link pins
Checking the track width
The draft link pins can be adjusted according to the track width of the
tractor.
> Check the track width of the tractor rear tyres
> Adapt the draft link pins so that the blades do not touch the right
rear tyre
→ Moving the draft link pins, page 22

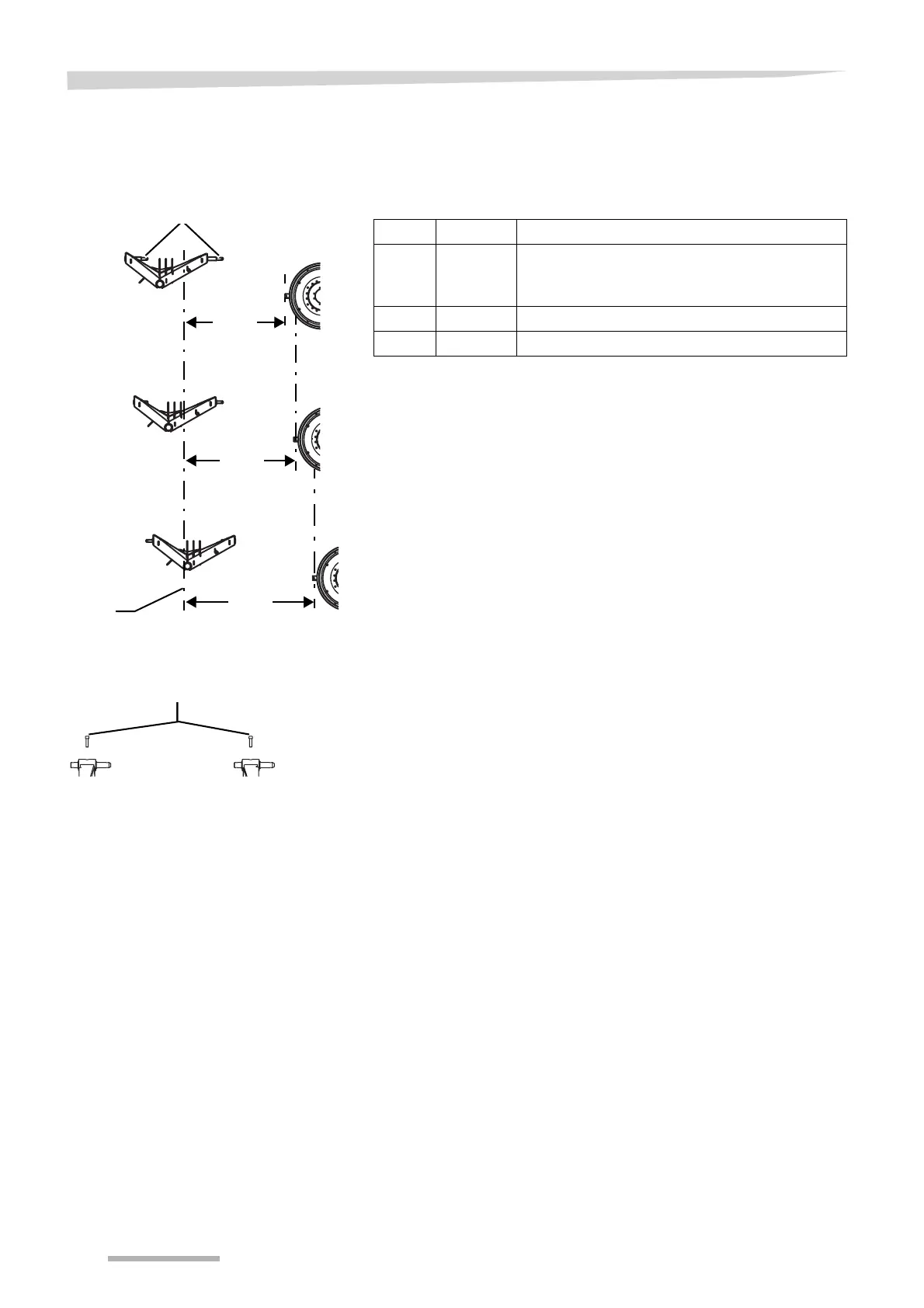

Moving the draft link pins
The machine must be placed at the support jack.
> Loosen bolts
> Move the draft link pins according to the desired setting
> Tighten bolts with Loctite
1.06 m
1.16 m
1.36 m
Setting 1
Setting 2
Setting 3
Draft link pins
Tractor
centre
Setting Width (m) Remark
1 1.06 only possible if the long draft link pins [+] are
mounted
→ Long draft link pins, page 41
21.16
31.36
E040
Bolts
