Vicon CM 299 - Pto Drive Shaft

Maintenance
49

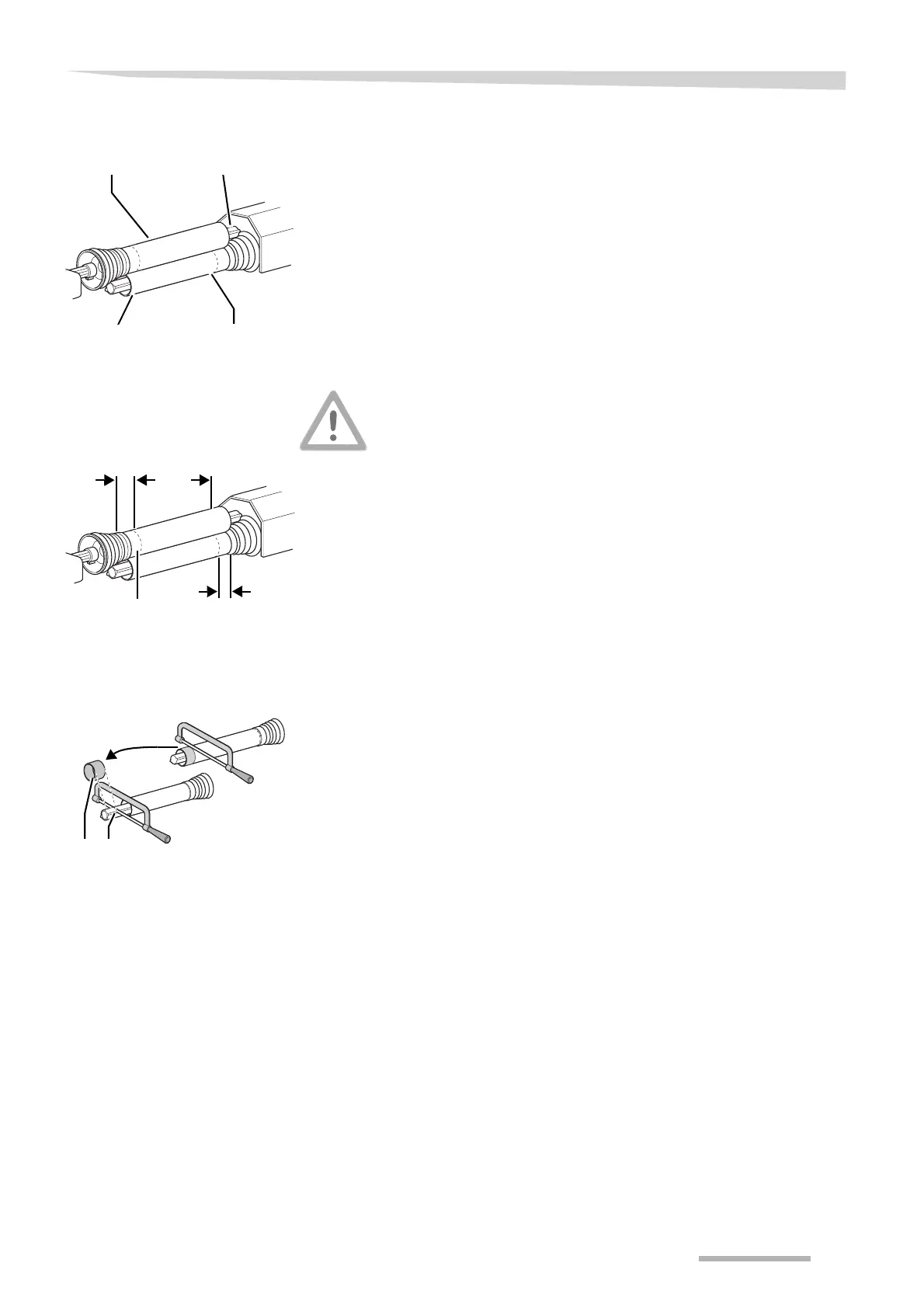

Pto drive shaft
The length of the pto drive shaft has to be adapted. This depends on
the distance between tractor and machine.
Checking length of
the pto drive shaft
Correct length
To long a pto drive shaft may seriously damage drive bearings of both
tractor and machine. Which is beyond any warranty.
Prior to coupling the pto drive shaft check the length:
> Correctly line-up tractor and machine
> Ensure the tractor pto is clean and greased
> Fit both pto drive shaft halves (not connected!)
> Hold both pto drive shaft halves together, ensure
• the protection tube shall be at least 5 cm shorter
• the overlap of the profiled drive tubes shall be at least 37 cm
Shortening the pto
drive shaft
> Exactly determine the correct length of the shaft
> Shorten the protection tubes
> Shorten the profiled drive tubes
The length of both cut-off ends shall be identical.
> Clean cut ends of both protection tubes and profile tubes to ensure
they are all smooth and clean
Protection tube
Profiled tube
Profiled tube
Protection tube
min. 37 cmmin. 5 cm
min. 5 cmA
WD0410
A = B
