Swath disc [+] ad-
justment
The swath disc at both sides can be set in different positions. The fol-
lowing distances must be adjusted:
• distance between swath disc and drum skirt
• distance between swath disc and drum
Distance between
swath disc and drum
skirt
Distance B between the swath disc and the drum skirt must be be-
tween 10 - 15 mm.
To avoid the front tractor wheels touch the swath discs, the swath
discs can be adjusted continuously horizontally.
> Loosen bolts
> Adjust swath disc horizontally until distance B is between 10 - 15
mm
> Tighten bolts
Distance between
swath disc and drum
Distance C between the swath disc and the drum must be between 10
- 15 mm.
To avoid the front tractor wheels touch the swath discs, the swath
discs can be adjusted continuously horizontally.
> Loosen bolts
> Adjust swath disc vertically until distance C is between 10 - 15 mm
> Tighten bolts

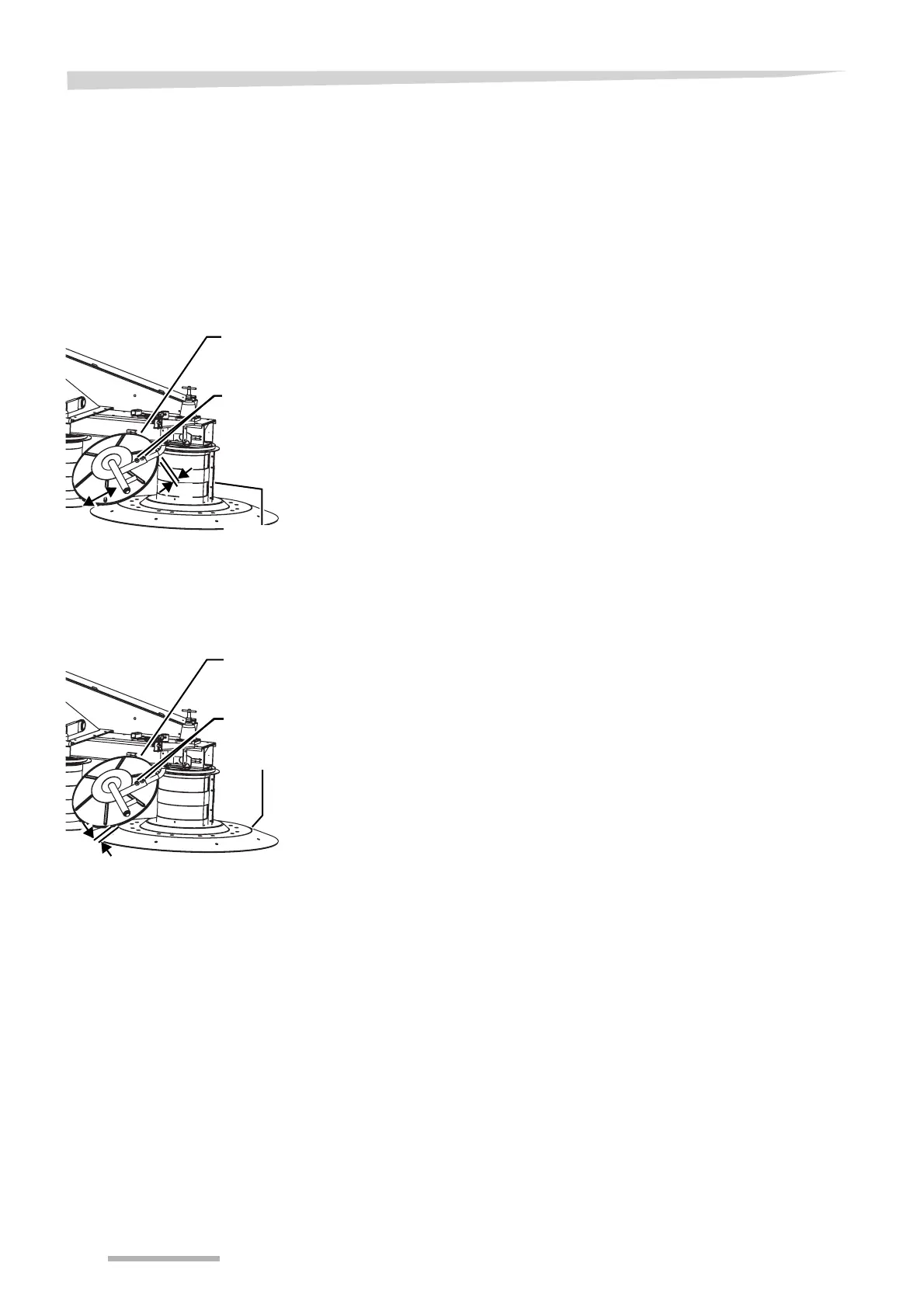

Swath disc
Bolts
Drum skirt
B
Swath disc
Bolts
C
Drum
