Maintenance
Renewing blade hold-
ers
Proceed as follows:
> Lower the machine fully into working position using the 3-point link-
age
> Fold up and lock the front guard
> Rotate the drums manually into basic position
> Use the blade detachment tool to change the mowing blade
> Fold down the front guard fully
T
IP
Arrow = direction of drive
> Remove the concerning skid disc
> Remove the worn blade holder
> Mount the new blade holder
> Move the blade holders of the other drum skirts in order to produce
the basic position
> Mount the concerning skid disc

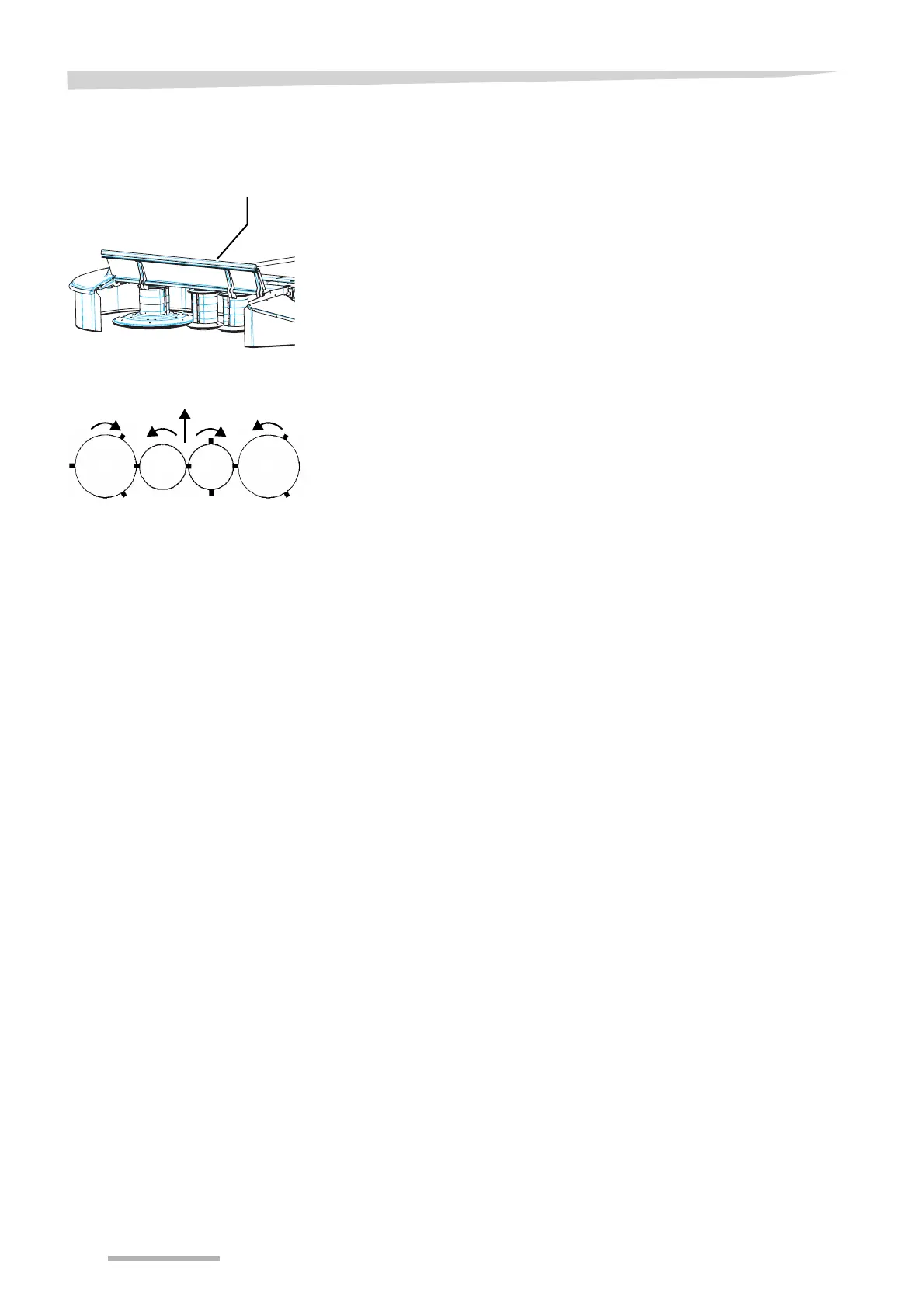

Front guard
Basic position
1 2 3 4
