Preparation
31

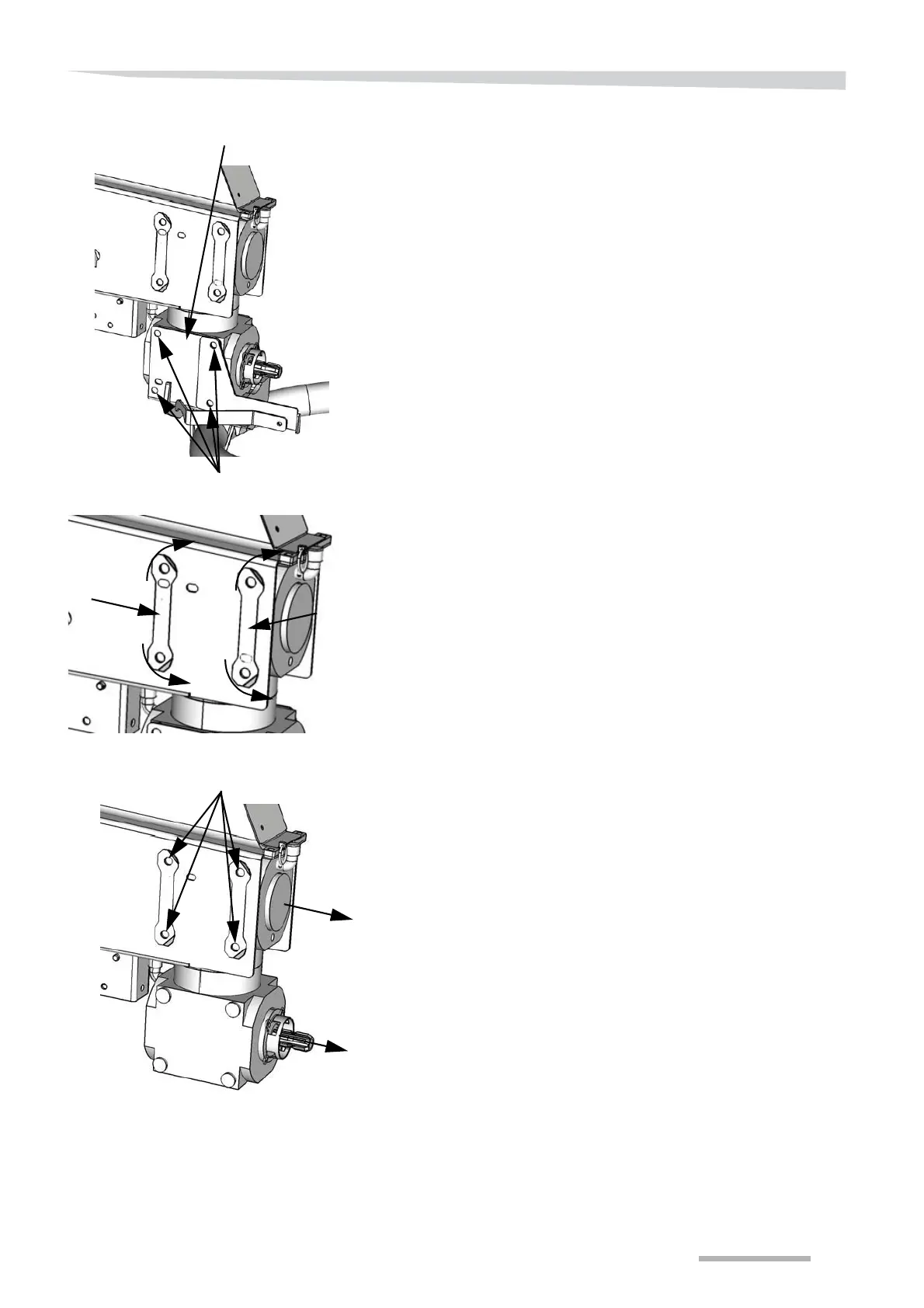

Remove the bolts on both sides of the transmission.
Dismantle the bracket.
Force the corners of the lock plate away from the bolt heads.
Remove the bolts on both sides of the transmission.
Dismantle the transmission.
Bolt
Bracket
Bolt
