Assembly - attachment
39
Connection
Hydraulic connection
The tractor must be fitted with 2 sets of double acting hydraulic outlets,
which are connected thus:
When connecting the hydraulic hoses you should check that:

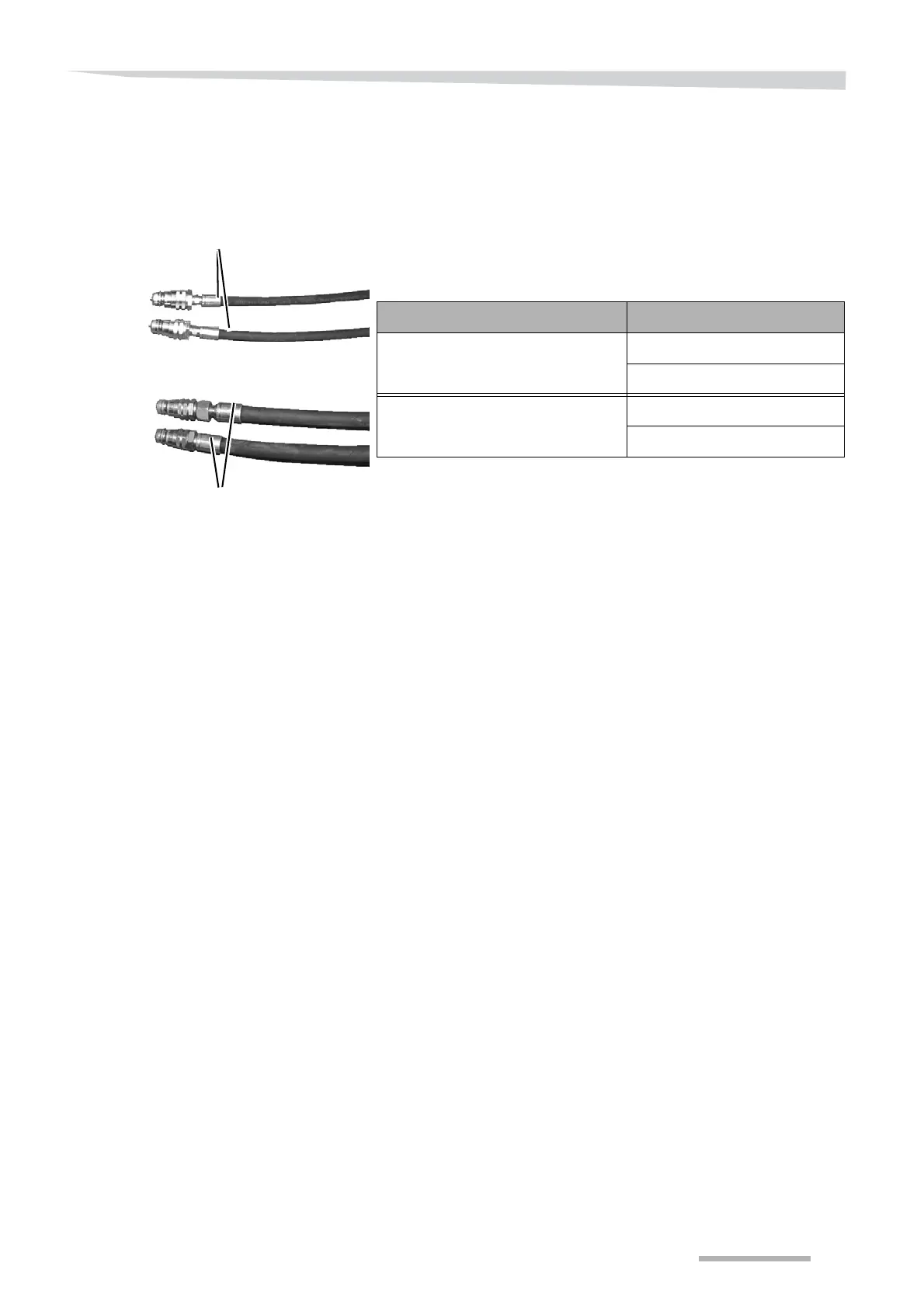

• The hydraulic hoses are connected in pairs to the tractor's
hydraulic pressure and return outlet on the tractor.
Hydraulic hose for: Function
Drawbar
right
left
Cutting unit
up
down
