Assembly - attachment
48
Left-hand side
T model

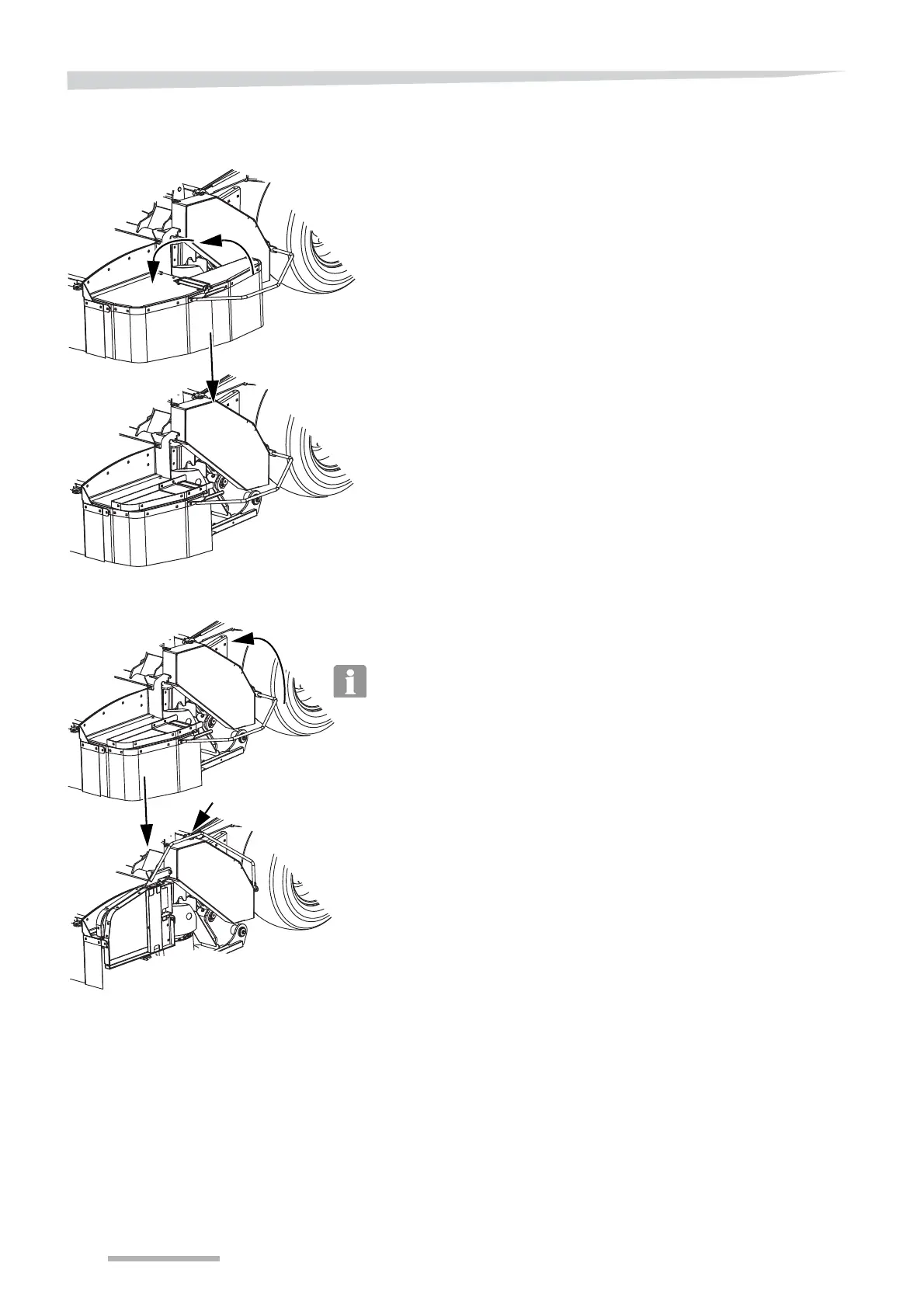

 Swivel the guard round as shown.
 Take hold of the bar and lift the guard up as shown.
 Secure the guard with the linchpin.
When the side guards are in the transport position, the machine must
not be started.
