Indoor Pendant Model
The indoor pendant model mounts on a Vicon mount (refer to the table in the Introduction section) or a 1.5-
inch vertical pipe with an appropriate coupling. The pipe is a standard 1.5-inch NPT type and must be
oriented vertically so the SurveyorVFT can effectively hang from the pipe.
Indoor Pendant Overview
The mount is installed with all the cables run through it or the 1.5-inch NPT pipe is prepared for SurveyorVFT
installation. The cables are routed through the housing and the housing is screwed tightly to the pipe. Then
the customer interface board is wired. The SurveyorVFT camera drive is hung from the housing safety cord.
The SurveyorVFT drive is then carefully snapped into the housing. The SurveyorVFT is supported by the
mount. The indoor lower dome is snapped on. Refer to Figure 11. Detailed installation instructions follow.
The accessory kit contains the removable terminal blocks for all connections in this installation. The mount
must provide a support of suitable strength for the indoor pendant SurveyorVFT weight of 4.7 lb (2.1 kg).
1. Install the mount in accordance with the
installation manual included with the mount or
prepare the vertical 1.5-inch NPT pipe.
2. Feed all necessary cables through the back of
the mount or out the end of the 1.5-inch NPT
pipe.
3. Unlatch and rotate the customer interface
board 90º downward to provide access to the
terminal blocks. Refer to Figure 12. (The
board can be completely removed if
necessary by snapping it out of the hinge after
being rotated to the 90º downward position.)
5. Lift the housing up to the mount or pipe and
feed the cables through its top opening.
6. Place the housing onto the pipe and screw
clockwise, looking up at the housing. When
snug, turn an additional quarter-turn.
7. Remove the terminal blocks provided in the
accessory kit. The 2-pin is for power, the two
(2) 8-pin are for alarms and control/relay; the
3-pin is for UTP option. Terminate all the
cables as follows:
a) Strip approximately 1 inch (25 mm) of the
cable outer jacket to be terminated in
terminal blocks TB1 and TB3. Then strip
approximately 0.25 inches (6 mm) of
insulation off of each individual wire.

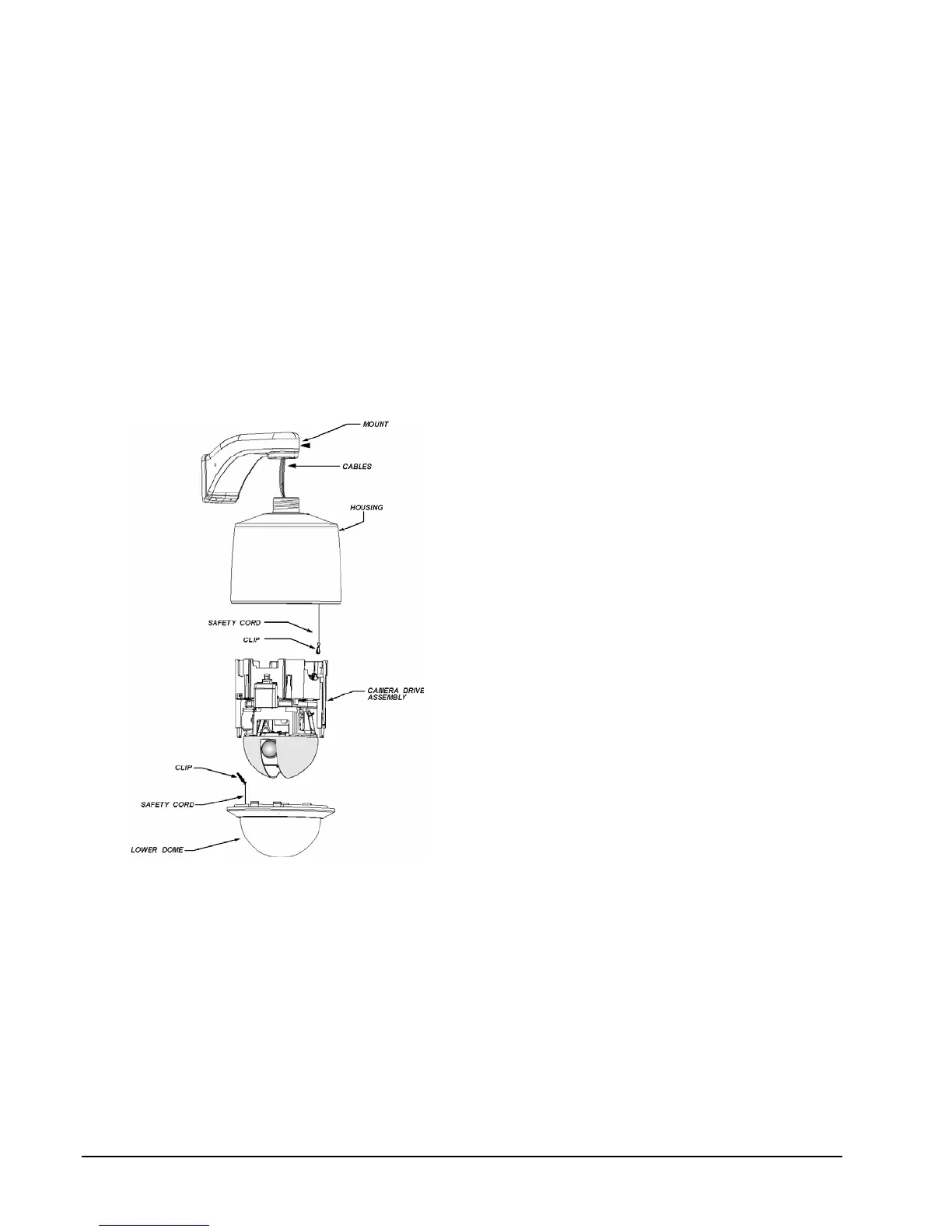

Figure 11
Indoor Pendant Mount Model
18 • Installation XX134-01-00 Rev 205 SurveyorVFT Camera Dome System
