Standalone Configuration System
Star Configuration

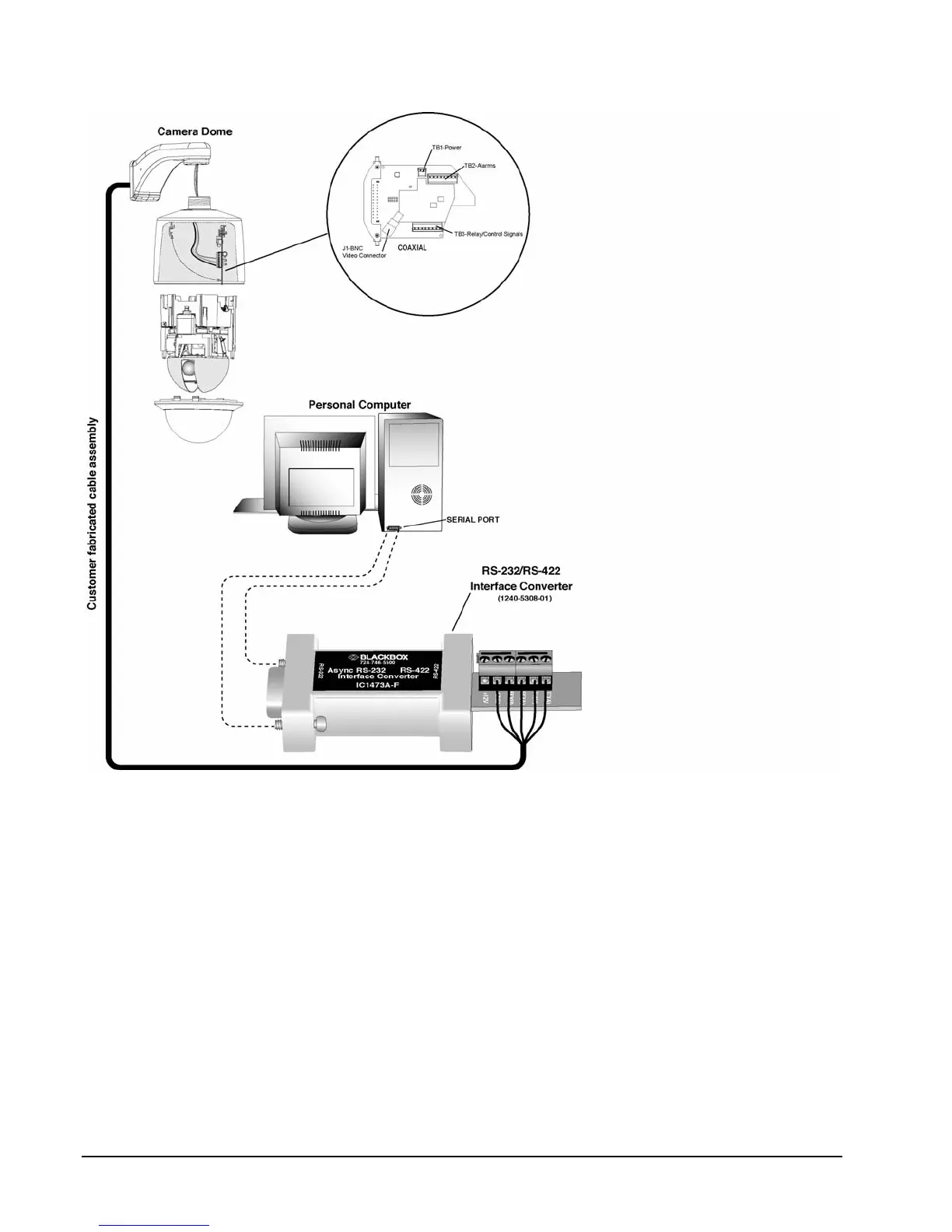

When multiple domes are connected in a star configuration, using a V1400X-IDL, the RS-232/RS-422
Interface Converter is used, part number 1240-5308-01, along with a customer fabricated cable. Refer to
Table 2A for connections. In this configuration, connect the converter end of the customer-fabricated cable
assembly to the SERIAL port of the computer and the other end to the CPU/J11 port on the V1400X-IDL (you
may have to disconnect the keypad). See following figure.
36 • Wiring XX134-01-00 Rev 205 SurveyorVFT Camera Dome System
