NOTE: DIP switches labeled ON or CLOSED and OFF or OPEN have the same meaning.
Competitive Protocol Settings, Switches 5-8
Pelco: Switch 5 is ON, switches 6-8 are OFF
Sensormatic: Switch 6 is ON, switches 5, 7, 8 are OFF
Ultrak: Switches 5 and 6 are ON, switches 7-8 are OFF
Philips: Switch 7 is ON, switches 5, 6, 8 are OFF
Cohu: Switches 5 and 7 are ON, switches 6 and 8 are OFF
Kalatel: Switches 6 and 7 are ON, switches 5 and 8 are OFF
Panasonic: Switches 5 and 8 are ON, switches 6 and 7 are OFF
NTCIP: Switch 8 is ON, switches 5 - 7 are OFF

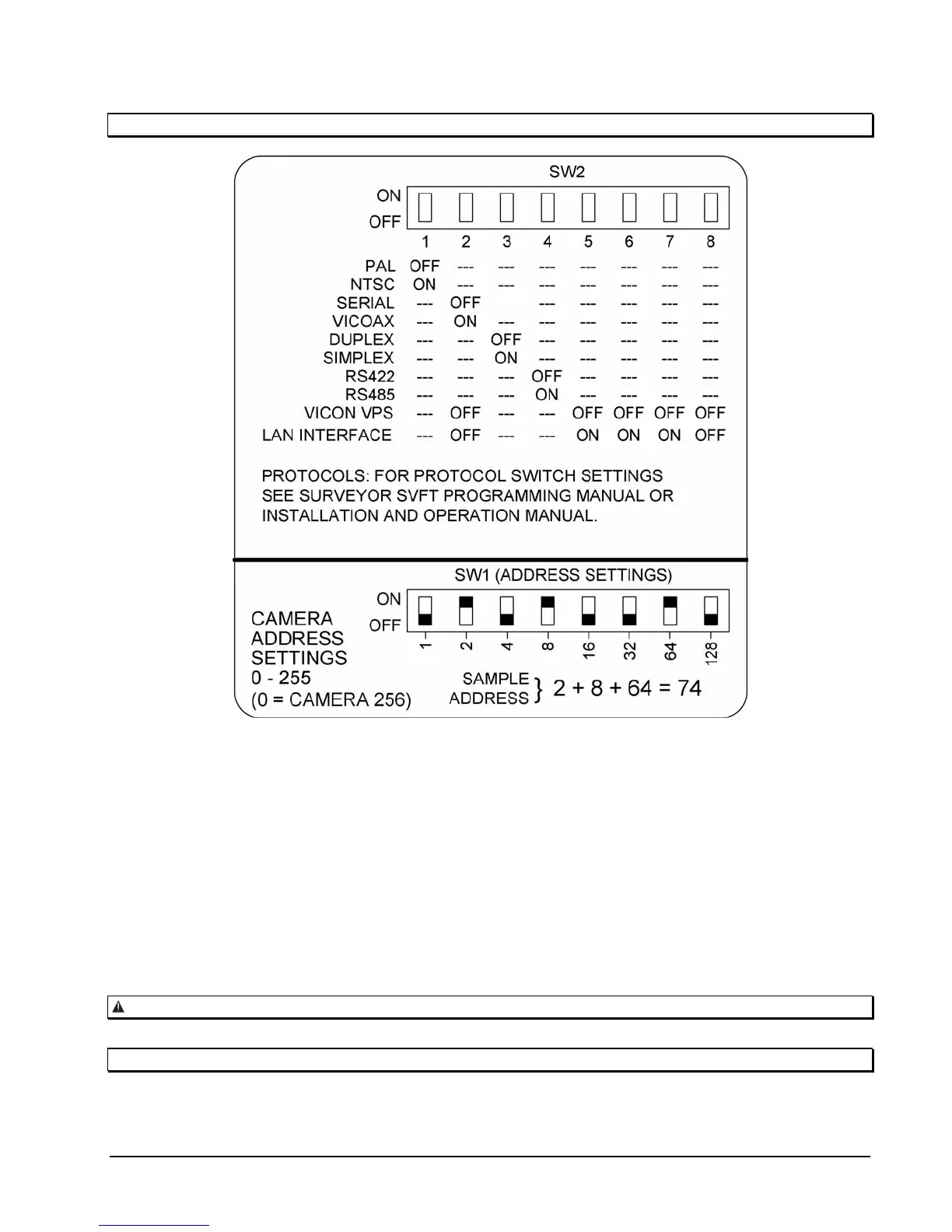

Figure 23
DIP Switch Label
Caution: Competitive protocols are not available in LAN (ViconNet) mode.
Note: For Pelco Keypad with 2400 baud, switch 3 on SW2 must be set to ON; Pelco is D protocol.
