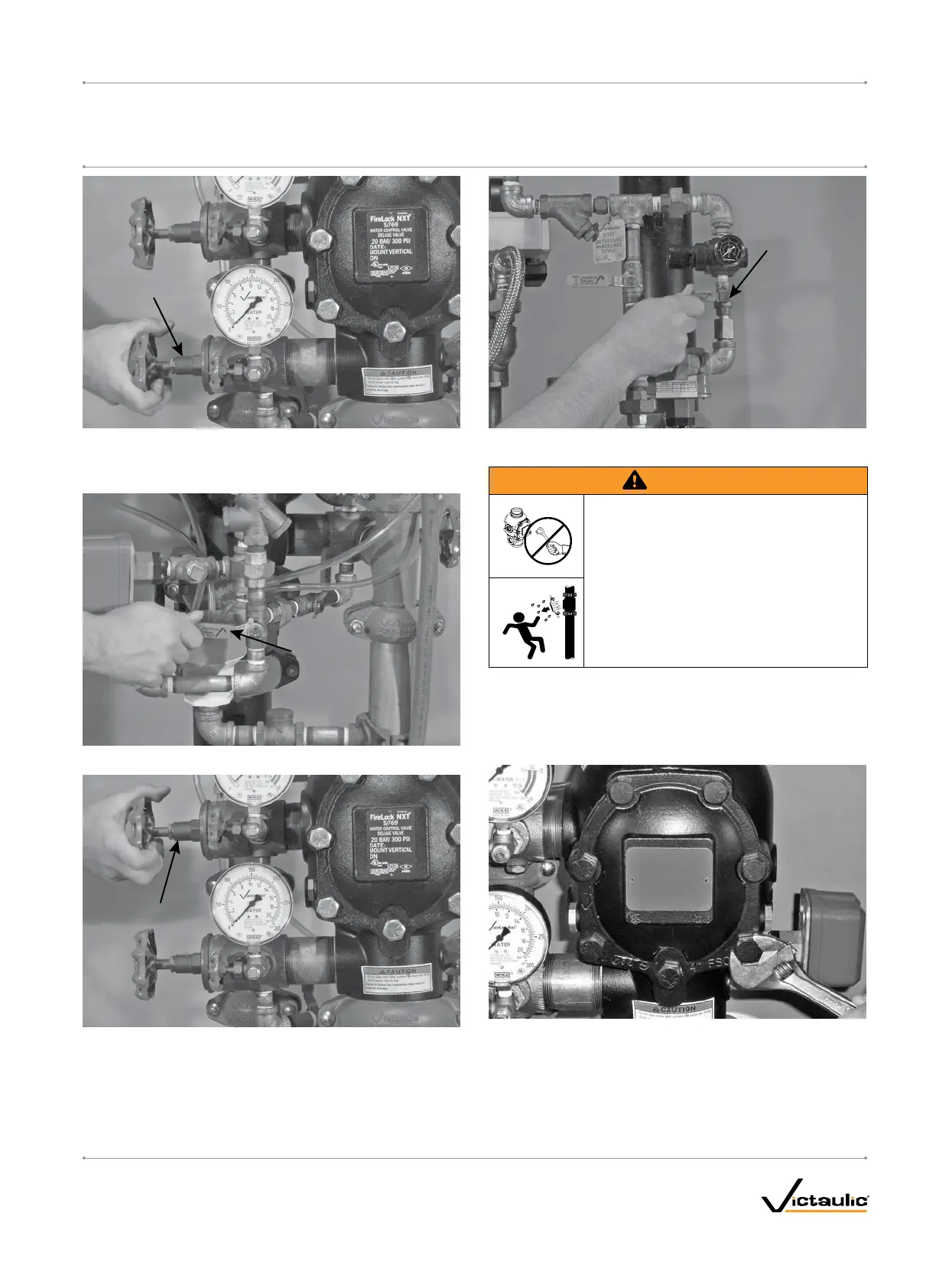

Water Supply
Main Drain Valve
5. Open the water supply main drain valve.
6. Confirm that water is not flowing from the water supply main drain
valve.
Diaphragm-Charge-
Line Ball Valve
7. Close the diaphragm-charge-line ball valve.
System Main
Drain Valve
8. Open the system main drain valve to drain any water that has
accumulated and to release system air pressure.
NOTE: If the system has operated, open the remote system test valve
(inspector’s test connection) and any auxiliary drain valves.
Slow-Fill
Ball Valve
9. Close the slow-fill ball valve on the AMTA.
WARNING
• Makesurethevalveisdepressurizedand
drainedcompletelybeforethecoverplate
boltsareremoved.
Thecoverplatecouldblowoffifthecoverplate
boltsareremovedwhilethevalveispressur-
ized,resultinginseriouspersonalinjuryand/or
propertydamage.
10. ACTIVATETHEELECTRICALPORTIONOFTHESYSTEMTO
ENERGIZETHESOLENOID,ORPUSHDOWNONTHEAUTO
DRAINSCREWTOREMOVEPRESSUREINTHEDIAPHRAGM
CHARGELINE.
11. OPENTHEMANUALPULLSTATION.
12. After all pressure is released from the system, loosen the cover
plate bolts slowly. NOTE: DO NOT remove any cover plate bolts
until all cover plate bolts are loosened.
12a. Remove all cover plate bolts, along with the cover plate and cover
plate gasket. NOTE: The 1 ½-inch/48.3-mm and 2-inch/60.3-mm
valve sizes contain washers under the heads of the cover plate
bolts. Keep these washers for re-installation.
REV_B
FireLockNXT™AutoConvertPreactionValve
SERIES 769
PreactionElectricAutoConvertDryTrim
I-769P.AC/ELECINSTALLATION,MAINTENANCE,ANDTESTINGMANUAL
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2009 VICTAULIC COMPANY. ALL RIGHTS RESERVED. PRINTED IN THE USA.
I-769P.AC/ELEC_39
