Victaulic FireLock NXT 769 Series Installation, Maintenance, And Testing Manual

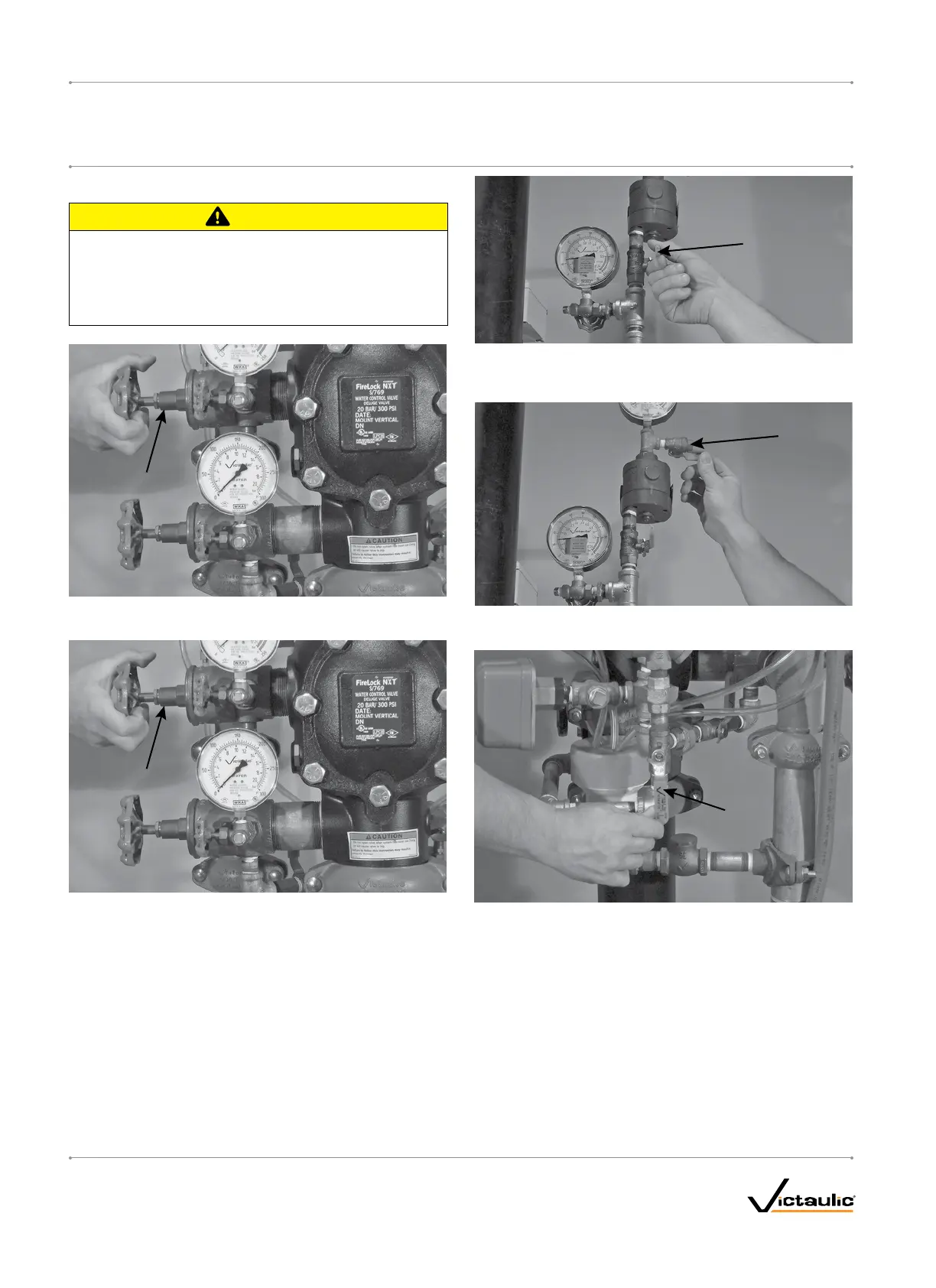

PLACINGTHESYSTEMINSERVICE
CAUTION
• MakesuretheSeries769FireLockNXTPreactionValveis
properlyheatedandprotectedfromfreezingtemperaturesand
physicaldamage.
Failuretofollowthisinstructioncouldcauseimpropervalve
operation,resultinginpersonalinjuryand/orpropertydamage.
System Main
Drain Valve
1. Open the system main drain valve. Confirm that the system is
drained.
System Main
Drain Valve
2. Close the system main drain valve.
3. Confirm that all system drains are shut and that the system is free
of leaks.
3a. Confirm that the system has been depressurized. The gauges
should indicate zero pressure.
Accelerator
Isolation
Ball Valve
4. FORSYSTEMSINSTALLEDWITHASERIES746-LPADRY
ACCELERATOR: Confirm that the isolation ball valve to the
accelerator is closed.
Accelerator
¼-Turn Vent
Ball Valve
4a. FORSYSTEMSINSTALLEDWITHASERIES746-LPADRY
ACCELERATOR: Open the ¼-turn vent ball valve.
Diaphragm-Charge-
Line Ball Valve
5. Open the diaphragm-charge-line ball valve.
I-769P.AC/ELEC_20
FireLockNXT™AutoConvertPreactionValve
SERIES 769
PreactionElectricAutoConvertDryTrim
I-769P.AC/ELEC
INSTALLATION,MAINTENANCE,ANDTESTINGMANUAL
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2009 VICTAULIC COMPANY. ALL RIGHTS RESERVED. PRINTED IN THE USA.
REV_B
