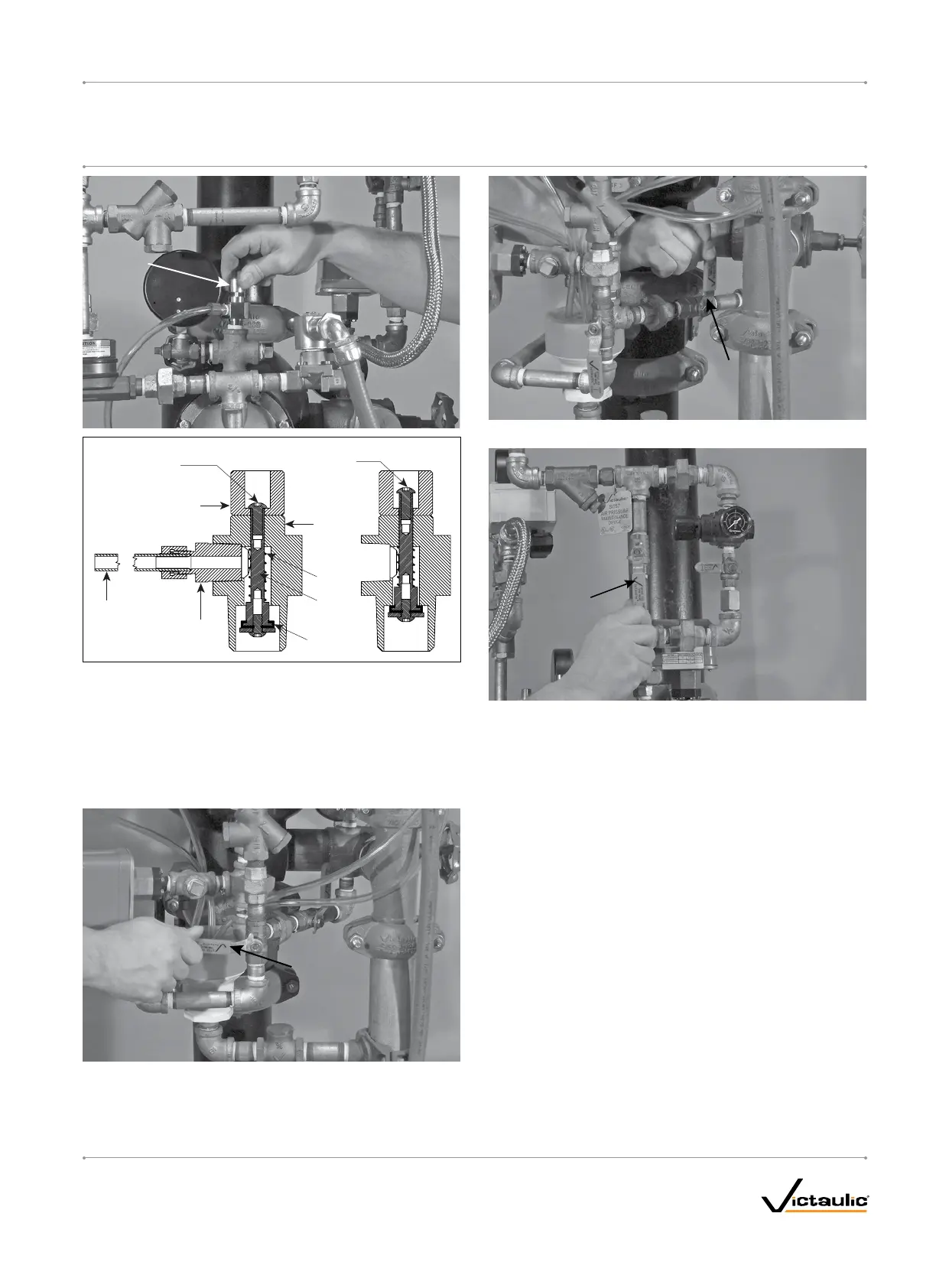

Auto Drain
Sleeve
Screw
(Not in “set”
position)
Seal
Compression
Fitting
Drain
Hose
Body
Spring
Stem
Screw
(In “set”
position)
Sleeve
6. Confirm that water is flowing steadily from the Auto Drain. Pull up
on the Auto Drain Sleeve.
6a. Confirm that water is flowing through the Series 776 Low-Pressure
Actuator after opening the diaphragm-charge-line ball valve and
pulling up on the Auto Drain Sleeve.
6b. Make sure no water flows through the solenoid after opening the
diaphragm-charge-line ball valve. DO NOT pull up on the Auto
Drain Sleeve.
Diaphragm-Charge-
Line Ball Valve
7. Close the diaphragm-charge-line ball valve.
Alarm Test
Ball Valve
8. Confirm that the alarm test ball valve is closed.
Fast-Fill
Ball Valve
9. Charge the system with air by turning on the compressor or by
opening the fast-fill ball valve on the AMTA (fast-fill ball valve is
shown above). Charge the system to 13 psi/0.9 Bar minimum. Refer
to the “Air Supply Requirements” section.
10. Confirm that the system is charging by observing the system air
pressure gauge. If the gauge is not showing an increase in air
pressure, there is a leak or an opening in the line. Repair any leaks
or openings and restart the setup procedures.
11. Confirm that no water is being exhausted from the Auto Vent of
the Series 776 Low-Pressure Actuator. If water is being exhausted
from the Auto Vents, continue to run air through the system in
order to remove moisture from the upper chamber of the Series
776 Low-Pressure Actuator. If a Series 746-LPA Dry Accelerator is
installed, make sure the accelerator is not flooded.
REV_B
FireLockNXT™AutoConvertPreactionValve
SERIES 769
PreactionElectricAutoConvertDryTrim
I-769P.AC/ELEC
INSTALLATION,MAINTENANCE,ANDTESTINGMANUAL
www.victaulic.com
VICTAULIC IS A REGISTERED TRADEMARK OF VICTAULIC COMPANY. © 2009 VICTAULIC COMPANY. ALL RIGHTS RESERVED. PRINTED IN THE USA.
I-769P.AC/ELEC_21
