Page 18

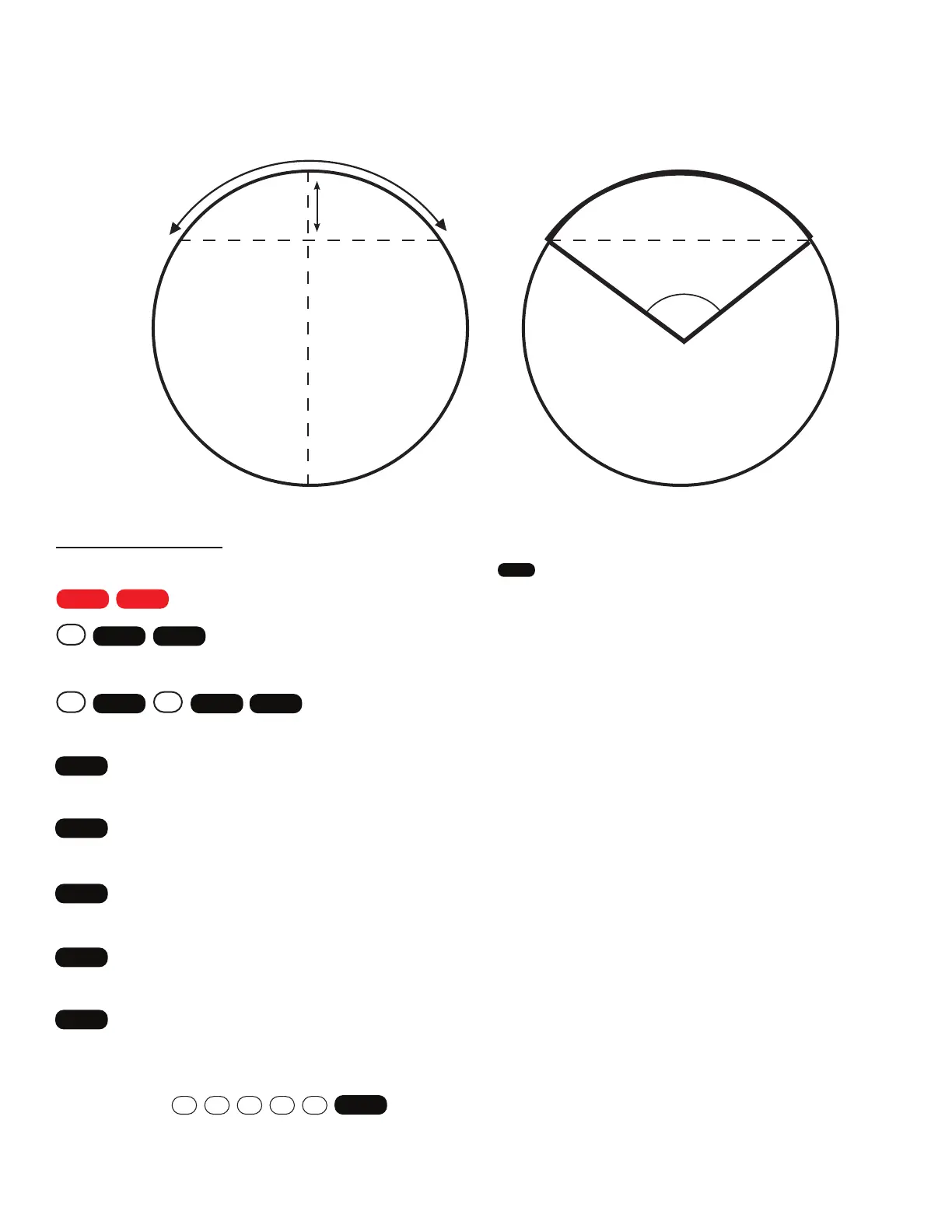

SEGMENT & PORTION CALCULATIONS - USING DIAMATER AND ARC VALUE
Example: You have a circle with a 6 Foot diameter and an arc length of 4 Feet 4 Inches.
Find the arc degree, chord length, segment rise, segment and pie slice area, and segment rise.
KEY INPUT & DISPLAY
0
DIA 6
Feet
0
Inch
1. Enter Circle diameter (Note: Enter diameter into the key):
ARC 4
Feet
4
Inch
2. Enter arc length*:
ARC 82.76˚
3. Calculate the degree of arc:
CORD 3
Feet
11-5/8
Inch
4. Calculate the chord length:
SEG 2.035873
SQ Feet
5. Calcuate the segment area:
PIE 6.5
SQ Feet
6. Calculate the area of the “pie slice”:
RISE 0
Feet
9
Inch
7. Calculate the segment rise:
d= 6’
(Diameter)
3’ 11-5/8”
(Chord Length)
9”
(Segment Rise)
4’ 4”
(Arc Length)
* You could alternatively enter a known arc degree here instead, solving for arc length along the way.
For Example:
78
6
2
.
Arc
Arc
Inch
4
On/C On/C
Circ
6
Feet
Feet
4
Arc
Arc
Arc
Arc
Arc
Circ
2.035873 Sq. Feet
(Segment Area)
6.5 Sq. Feet
(Pie Slice Area)
82.76°
(Degree of Arc)
