19617-001 Rev. H DiagnosticPRO Edge User’s Guide 24

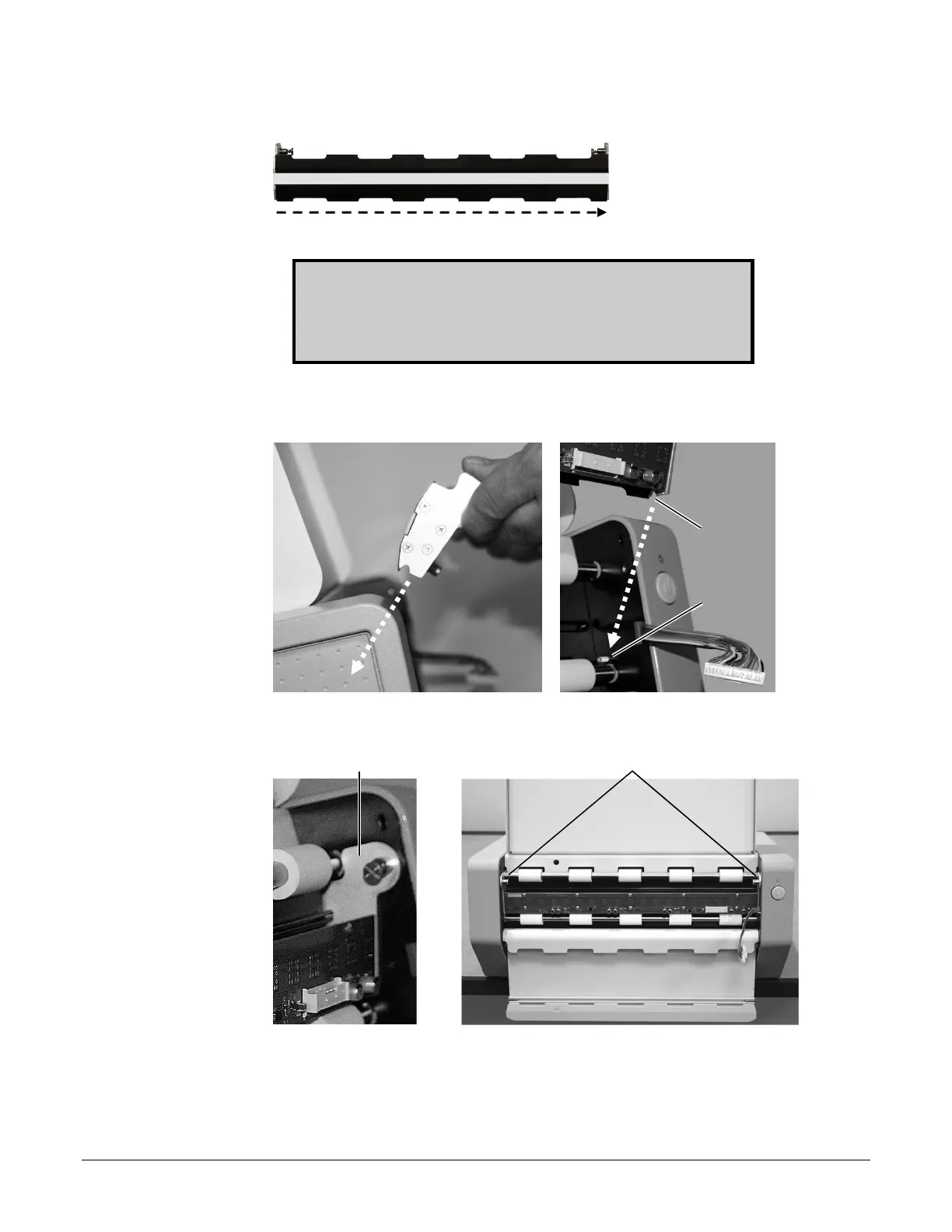

6. Clean the diffuser: using a lint-free wipe, clean the entire length of the diffuser (white
plastic strip) on the LED cartridge.
Wipe in one direction only!
CAUTION: Clean only with lint-free wipes provided by VIDAR
(part number 15194). Other cloth or paper wipes will leave
fibers on the diffuser, which can affect performance. DO NOT
USE ALCOHOL or other solvents as they may degrade the
diffuser and void your warranty.
7. Reinstall the LED cartridge: slide the cartridge down into the chassis until it rests on
two pins, then rotate it away from you until it doesn’t move farther back.
8. Tighten 2 captive screws.
LED Bar properly seated Captive screws
Notch
Pin
