66250980-EN - V1.0 - 06/02/14

Fig. 1

4503-0

4503-1

4503-1D

Stainless Steel

Aluminium

High Brass

green / verde

green-white / verde-bianco

orange / arancione

orange-white / arancione-bianco

GND

PTE

Not

Used

0Vdc

+12Vdc

Made in Italy

RX - RS-232

TX - RS-232

GND

From

Art.4513

Day/Night

Infrared LED

Colour Camera

NETWORK SETTINGS DEFAULT

IP ADDRESS: _____ . _____ . _____ . _____ (192.168.1.3)

SUBNET MASK: _____ . _____ . _____ . _____ (255.255.255.0)

GATEWAY: _____ . _____ . _____ . _____ (192.168.1.1)

TIA/EIA-568-B.1-2001 T568B

Wiring

Green

Green / WhiteOrange

Orange / White

Orange

Green / White

Blue

Blue / White

Green

Brown / White

Brown

Fig. 2

DESCRIPTION

The 4000 Series IP video speaker unit module can be used with any VIDEX IP device or any computer using a specic MS-Windows Client or any

smartphone/tablet using a specic Android client. It is available in a 0, 1 or 2 button version but for installation with more than 2 call buttons can

be used in combination with the special interface module Art.4513 that enables the connection of up to 64 additional buttons using conventional

button expansion modules.

• Videx 4000 Series modular system;

• 10/100 Mbit Ethernet interface;

• Compatible with SIP protocol (it can be connected with VOIP switchboard systems);

• It recognizes DTMF tones complying with RFC2833 specication;

• In built web server to set operation parameters;

• Possibility to connect up to 66 call buttons (an interface module is required to which it is possible to connect standard expansion modules

from the 4000 Series);

• 2 dry contact relay outputs (C, NC, NO) with programmable operation times;

• 1 “active low” input for “push to exit” button;

• It is possible to set up to 10 IP addresses or SIP ID’s for each call button;

• Client to be used with a PC using MS Windows operating system;

• Client to be used with a tablet and smartphone using Android operation system;

• Firmware can be updated through a web server;

• A wide angle camera is also available.

TERMINALS

Not used

+12Vdc 12Vdc - 500mA Power supply input

0Vdc Power Supply Ground

GND Ground

PTE “Push to Exit” active low input

RX+ CAT5 cable Orange/white wire

RX– CAT5 cable Orange wire

TX+ CAT5 cable Green/white wire

TX– CAT5 cable Green wire

NO2 Relay 2 normally open contact

NC2 Relay 2 normally closed contact

C2 Relay 2 common contact

NO1 Relay 1 normally open contact

NC1 Relay 1 normally closed contact

C1 Relay 1 common contact

TERMINALS TO ART.4513

RX-RS-232 RS-232 Connection RX signal

TX-RS-232 RS-232 Connection TX signal

GND Ground

Art.4503 IP Video Speaker Unit Module

Connection

4000 Series

Art.4503 - Installation instructions

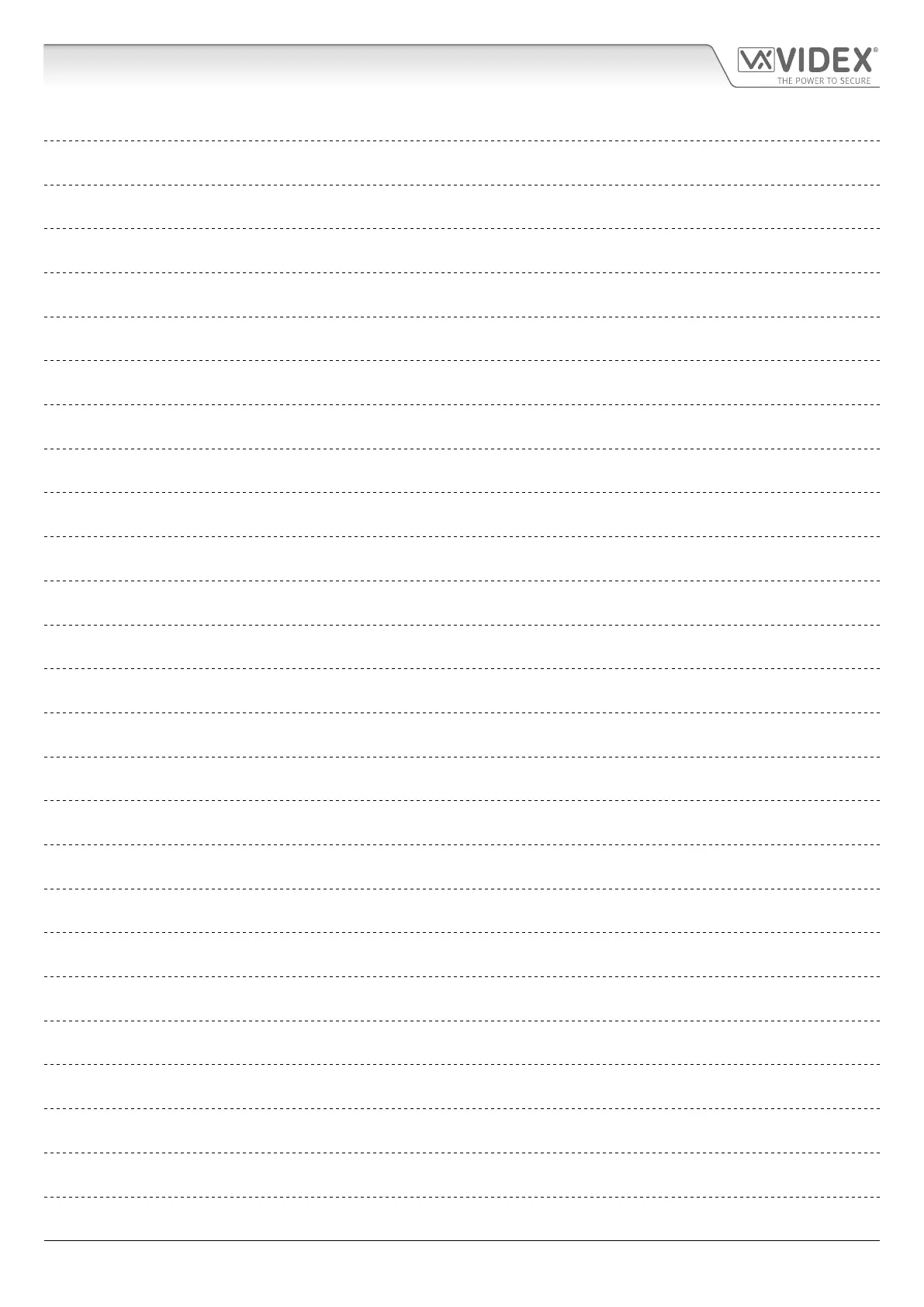

Videx 4000 Series - Notes
