PAGE 22 of 80 VX2200 TECHNICAL MANUAL VER1.4
“V1O” and “V2O” to the terminals “V1L” and “V2L” (connected to the local camera), connecting the
block entrance with the user required (during the conversation all other users in that block will be busy
for the length of the “local call”.
- If the call arrives from a main entrance, the system leaves the “BUS” connections and the video outputs
(only 2206V) in stand-by mode and, for the length of the call, the users’ line of the main entrance will be
busy.
Programming
The programming of the 2206A-2206/V consists in the configuration of the internal 4 way Dip-switch to
indicate the number of intercoms connected to the output (Eg. A block with 37 intercoms connected: Dip-
switch 1/2/4=OFF, 3=ON). This programming is used to adjust the impedance of the system according to the
phones connected; a wrong configuration could cause feedback (“Larsen” effect). See the following table for
the correct programming.
Operation Notes
On long runs if the video signal deteriorates we recommend use the V2P and V1P outputs to the following
block which supplies a reconditioned video signal to the rest of the system.
Technical specifications
Working voltage : 13 Vdc +/- 10%
Max. absorption (audio) : about 100 mA
Max. absorption (audio+video) : about 350 mA
Working Temperature : -10 +50 C°

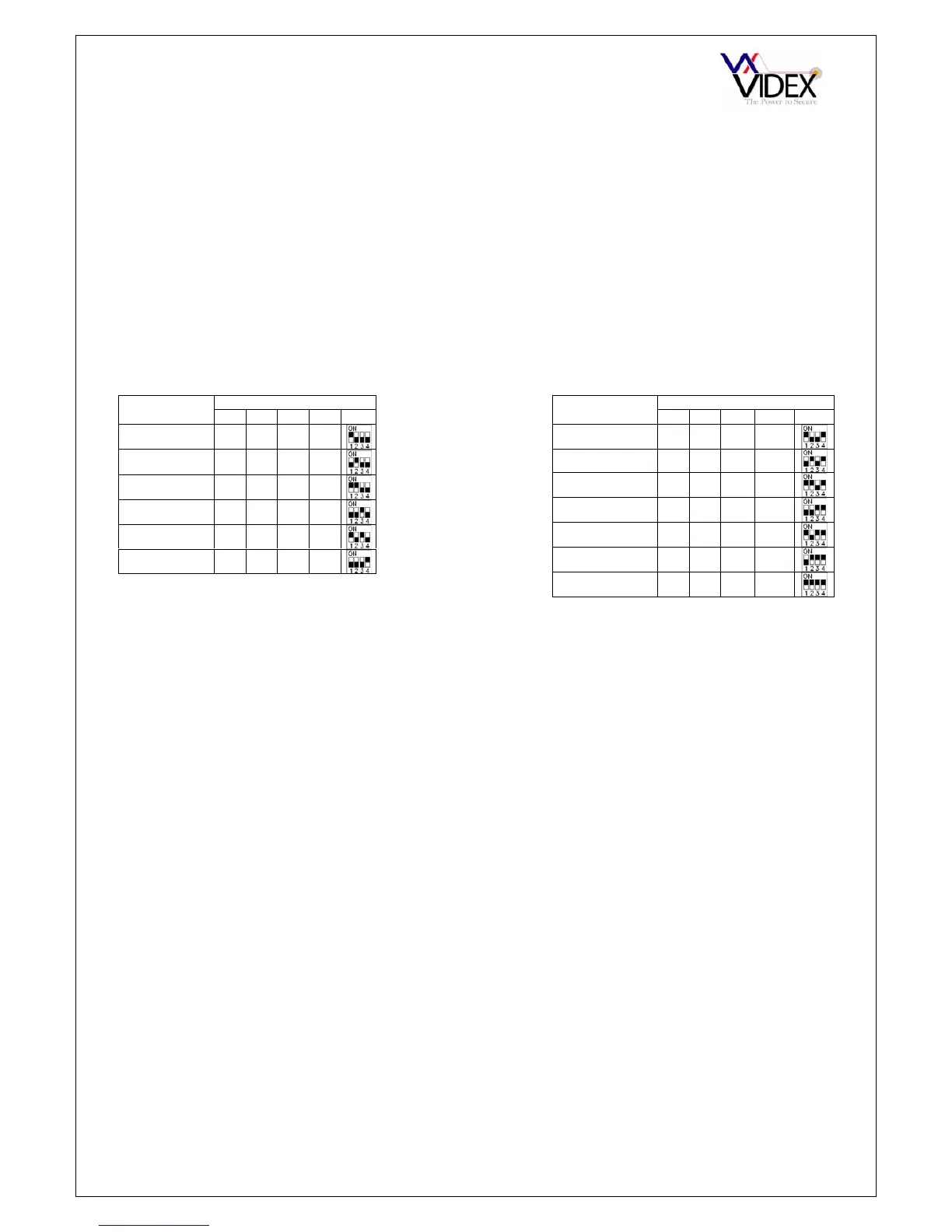

DIP-SWITCH
No. Of Intercoms
1 2 3 4
up to 10 ON OFF OFF OFF
up to 20 OFF ON OFF OFF
up to 30 ON ON OFF OFF
up to 40 OFF OFF ON OFF
up to 50 ON OFF ON OFF
up to 60 OFF OFF OFF ON
DIP-SWITCH
No. Of Intercoms
1 2 3 4
up to 70 ON OFF OFF ON
up to 80 OFF ON OFF ON
up to 90 ON ON OFF ON
up to 100 OFF OFF ON ON
up to 110 ON OFF ON ON
up to 120 OFF ON ON ON
up to 150 ON ON ON ON
To Next Page
