Viessmann B1HE-199 - Boiler Dimensions

11
6167 818 - 10
Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Dimensions

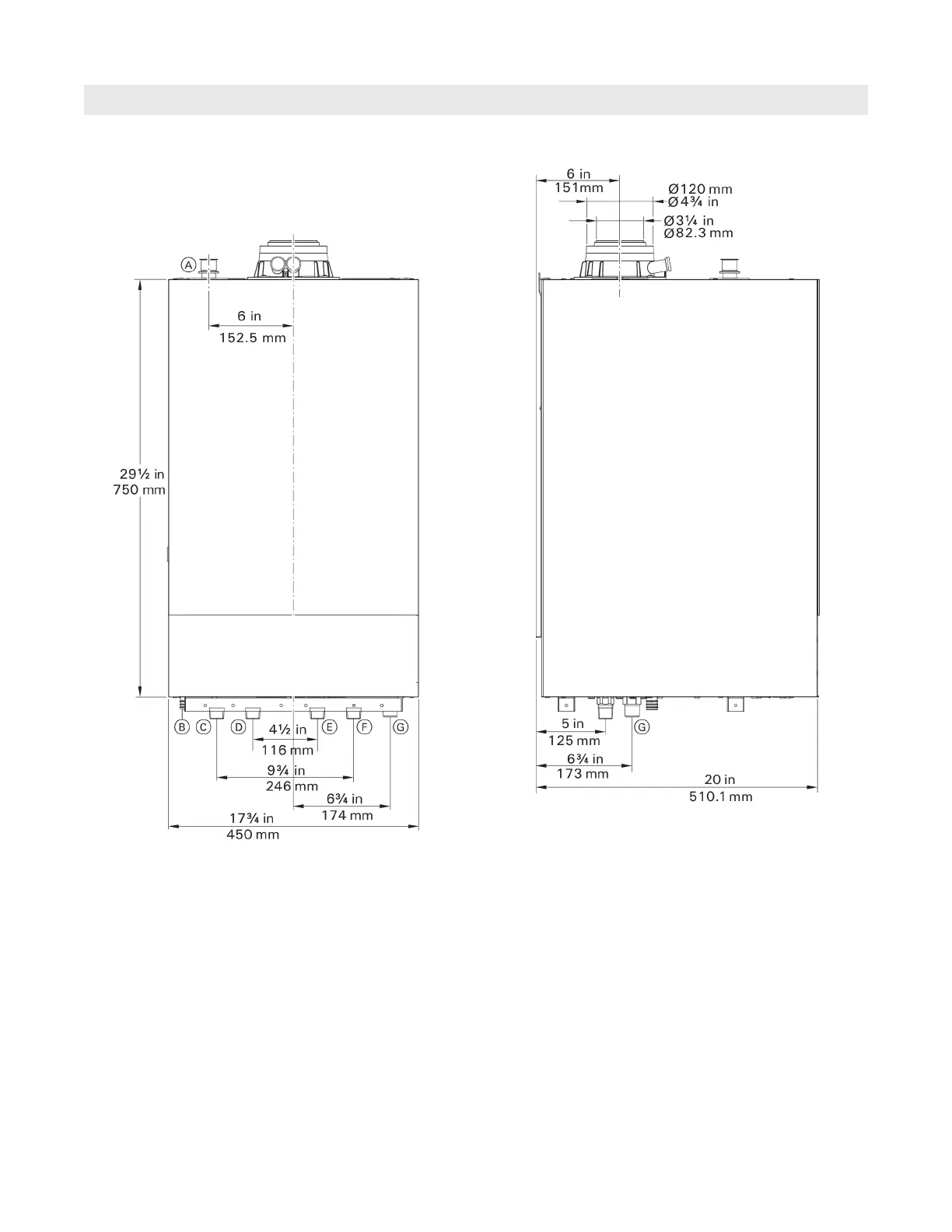

Boiler Dimensions
Front view Side view
B1HE/B1KE 85 and 120
Legend
A Safety valve, pressure gauge connection
B Condensate drain
C Heating system supply
D For B1HE series, DHW tank heating supply
For B1KE series, DHW
E For B1HE series, DHW tank heating return
For B1KE series, DCW
F Heating system return
G Fuel gas connection
