Vitodens 100-W, B1HE/B1KE Combi Installation/Service
Commissioning
Moving the Programming Unit to the Maintenance Position
To facilitate certain maintenance tasks, move the
programming unit up or down, depending where it is
located.
Do not disconnect the plug from the mounting panel.
Do not alter where and how the cable is secured (fixing
point of the cable tie).

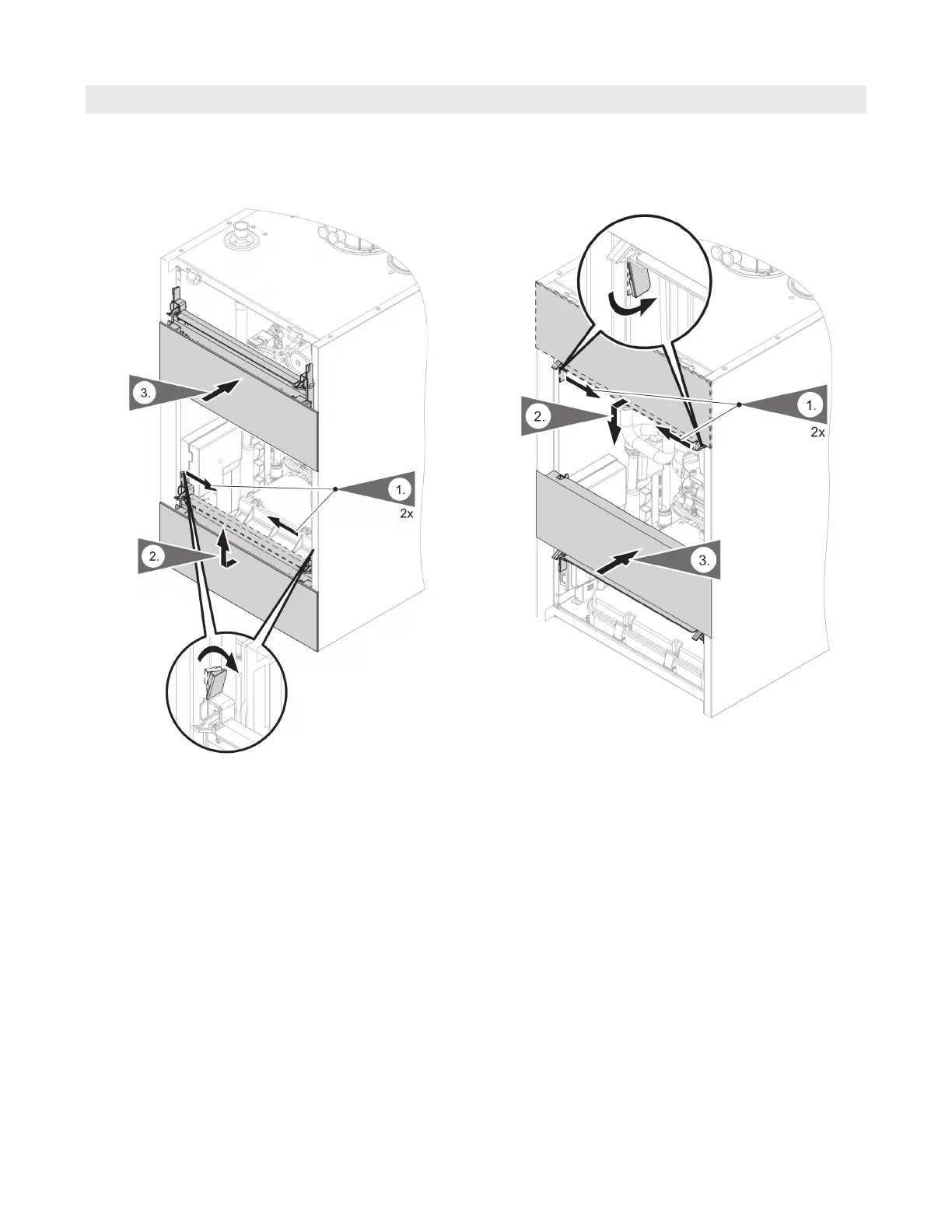

HMI mounted at the bottom
HMI mounted at the top
